10. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU ASSY(2) BOLT(2) BOLT(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(6) SPACER 6.2-9-16.6(6) SPACER 6.2-9-16.6(7) IGNITION COIL W/R-CAP(7) IGNITION COIL W/R-CAP(7) IGNITION COIL W/R-CAP(8) PLUG CAP W/RESISTANCE(8) PLUG CAP W/RESISTANCE(8) PLUG CAP W/RESISTANCE(9) BAND 158(9) BAND 158(9) BAND 158(10) BOLT(10) BOLT(10) BOLT(11) RECTIFIER COMPLETE(12) BOLT(13) BOLT(14) CABLE TERMINAL HOLDER(15) BOLT(16) WASHER 6-16-1.5(17) RUBBER MOUNT 8.5-12-2(17) RUBBER MOUNT 8.5-12-2(18) COLLAR 6.2-9-10.7(19) CORD ASSY(20) FUSE 30A(21) FUSE 25A(22) FUSE 15A(23) BOLT(23) BOLT(23) BOLT(23) BOLT(24) BAND 170(24) BAND 170(25) STAY(25) STAY(26) BOLT(27) BAND 158(28) CLAMP 6.5-47.5P(29) BOLT(30) BRACKET(31) BOLT(32) WASHER 6-16-1.5(33) RUBBER MOUNT 8.5-12-2(33) RUBBER MOUNT 8.5-12-2(34) COLLAR 6.2-9-10.7(35) LEAD WIRE BAND 200(36) BAND 104(37) TAPPING SCREW 6-16(38) STARTER SOLENOID(39) BOLT(39) BOLT(40) TERMINAL CAP(40) TERMINAL CAP(41) PTT SOLENOID SWITCH (A)(42) PTT SOLENOID SWITCH (B)(43) GROUND CABLE L=270(44) BOLT(44) BOLT(44) BOLT(44) BOLT(45) TERMINAL CAP(45) TERMINAL CAP(45) TERMINAL CAP(45) TERMINAL CAP(46) TERMINAL CAP(47) WATER TEMPERATURE SENSOR(48) O-RING 2-10(49) STARTER CABLE L=270(50) BOLT(50) BOLT(51) BATTERY CABLE(52) NUT(53) TERMINAL CAP



Parts List

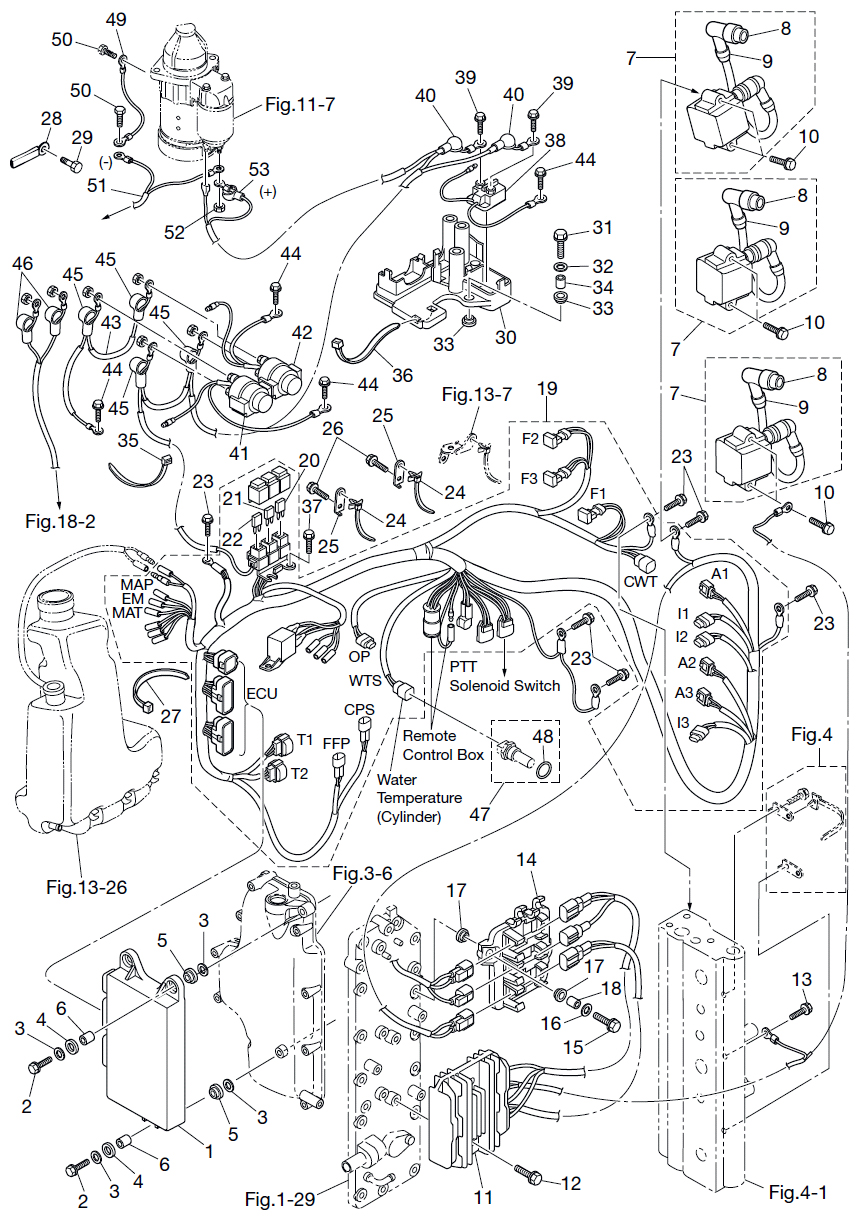

2012 :: 75 HP :: TLDI Tohatsu MD75C2 :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU ASSY 3FY064010M 3FY-06401-0 75PS / 3FY10AA $0.00 1 Sold Out View More Details
(2) BOLT 9101030630M 910103-0630 $1.21 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) IGNITION COIL W/R-CAP 3Y9064691M 3Y9-06469-0 #1 2 3 $119.61 3
(8) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 #1 2 3 $25.93 1
(9) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 1
(10) BOLT 9101035630M 910113-5630 $1.15 6
(11) RECTIFIER COMPLETE 3FW760600M 3FW-76060-0 RX4159 $280.29 1
(12) BOLT 9101035625M 910103-5625 $1.47 2
(13) BOLT 9101035612M 910103-5612 $1.07 1
(14) CABLE TERMINAL HOLDER 3FW062810M 3FW-06281-0 $6.35 1 Sold Out View More Details
(15) BOLT 9101030620M 910103-0620 $1.04 2
(16) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 2
(17) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 4
(18) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 2
(19) CORD ASSY 3FW761100M 3FW-76110-0 $737.57 1
(20) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 2
(21) FUSE 25A 3Y9762480M 3Y9-76248-0 $1.98 2
(22) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 2
(23) BOLT 9101035612M 910103-5612 GROUND $1.07 6
(24) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 CYLINDER CRANKCASE $0.00 3 Sold Out View More Details
(25) STAY 3FW761740M 3FW-76174-0 CYLINDER CRANKCASE $3.91 3 Sold Out View More Details
(26) BOLT 9101035612M 910103-5612 BAND STAY $1.07 3
(27) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(28) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(29) BOLT 9101035612M 910103-5612 $1.07 1
(30) BRACKET 3FW069010M 3FW-06901-0 $45.34 1
(31) BOLT 9101030625M 910113-0625 $0.95 3
(32) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(33) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 6
(34) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(35) LEAD WIRE BAND 200 3AC760910M 3AC-76091-0 $0.00 1 Sold Out View More Details
(36) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(37) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(38) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(39) BOLT 9101035608M 910103-5608 $1.59 2
(40) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED $2.25 2
(41) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP $42.82 1
(42) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN $42.82 1
(43) GROUND CABLE L=140&285 3T5761421M 3T5-76142-1 $8.60 1
(44) BOLT 9101035612M 910103-5612 $1.07 3
(45) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED $2.25 4
(46) CAP CORD 3A3761450M 3A3-76145-0 BLACK $3.39 2
(47) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 CYLINDER $26.18 1
(48) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(49) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 $24.89 1
(50) BOLT 9101035612M 910103-5612 $1.07 2
(51) BATTERY CABLE 3FW761200M 3FW-76120-0 $110.91 1 Sold Out View More Details
(52) NUT 9301030800M 930103-0800 $1.99 1
(53) TERMINAL CAP 15.5-18.28 3FW761450M 3FW-76145-0 $2.71 1
