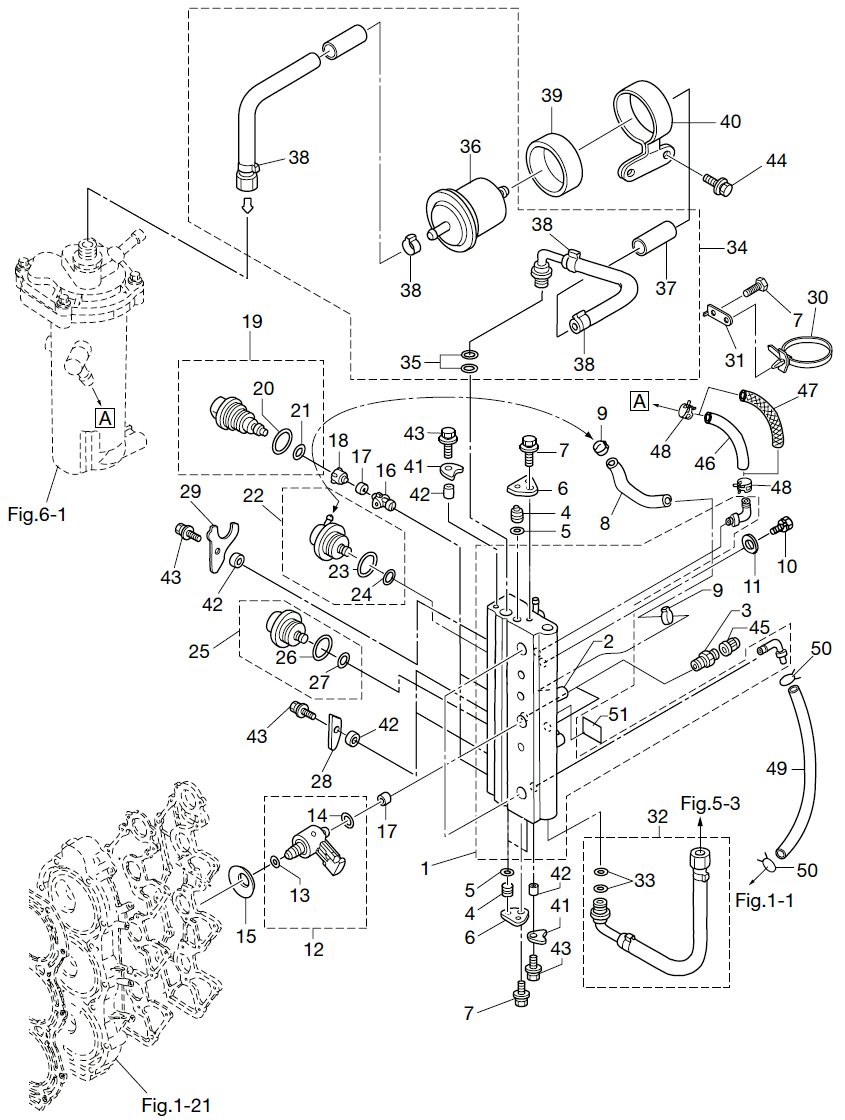

4. AIR RAIL

Click Here for Microfiche Usage Tip
(1) AIR RAIL ASSY(2) NIPPLE(3) VALVE ASSY (PRESSURE CHECK)(4) PLUG 10.5(4) PLUG 10.5(5) O-RING 1.9-6.8(5) O-RING 1.9-6.8(6) PLUG STOPPER(6) PLUG STOPPER(7) BOLT(7) BOLT(7) BOLT(8) HOSE(9) CLAMP 29/64(9) CLAMP 29/64(10) BOLT(11) WASHER(12) AIR INJECTOR COMPLETE(13) O-RING 5-52(14) O-RING 2.4-9.6(15) DISC SPRING(16) FUEL INJECTOR INSERT(17) SEAL(17) SEAL(18) FUEL INJECTOR ADAPTER(19) FUEL INJECTOR ASSY(20) O-RING 2.8-20.2(21) O-RING 3.5-7.5(22) FUEL REGULATOR ASSY(23) O-RING 2.5-20(24) O-RING 2.5-5(25) AIR REGULATOR ASSY(26) O-RING 2.5-20(27) O-RING 2.5-5(28) HOLDING PLATE(29) HOLDING PLATE(30) BAND 170(31) STAY(32) AIR HOSE ASSY L=300(33) O-RING 1.9-9.8(34) FUEL HOSE ASSY L=543(35) O-RING 1.9-9.8(36) HIGH PRESSURE FUEL FILTER(37) PROTECTOR L=210(38) CLAMP 21/32(38) CLAMP 21/32(38) CLAMP 21/32(38) CLAMP 21/32(39) FUEL FILTER RUBBER MOUNT(40) FUEL FILTER BAND(41) HOLDING PLATE(41) HOLDING PLATE(42) COLLAR 6.7-12.7-3(42) COLLAR 6.7-12.7-3(42) COLLAR 6.7-12.7-3(42) COLLAR 6.7-12.7-3(43) BOLT(43) BOLT(43) BOLT(43) BOLT(44) BOLT(45) CAP(46) HOSE(47) FUEL HOSE W/PROTECTOR L=770(48) CLIP o9.4(48) CLIP o9.4(49) HOSE(50) CLIP o10(50) CLIP o10(51) AIR RAIL DECAL



Parts List
2012 :: 75 HP :: TLDI Tohatsu MD75C2 :: AIR RAIL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR RAIL ASSY 3FW100800M 3FW-10080-0 $484.89 1
(2) L-NIPPLE 3T5101660M 3T5-10166-0 $9.41 1
(3) VALVE 3T5100980M 3T5-10098-0 FUEL & AIR PASSAGE $11.94 2
(4) PLUG ø 10.5 3T5101670M 3T5-10167-0 WATER & FUEL PASSAGE $3.14 3
(5) O-RING 1.9-6.8 3T5101641M 3T5-10164-0 WATER & FUEL PASSAGE $2.37 3
(6) PLUG STOPPER 3T5101650M 3T5-10165-0 $1.32 2
(7) BOLT 9101035612M 910103-5612 PLUG STOPPER & BAND STAY $1.15 4 Sold Out View More Details
(8) HOSE 98AY45105M 98AJ-4-0105 FUEL REGULATOR-AIR RAIL $8.88 1
(9) CLAMP 29/64 3T5100910M 3T5-10091-0 $7.48 2 Sold Out View More Details
(10) BOLT 9101030865M 910103-0865 $1.82 2
(11) WASHER 9401030800M 940113-0800 $0.90 2
(12) AIR INJECTOR COMPLETE 3GF103100M 3GF-10310-0 ORANGE $252.29 3
(13) O-RING 5-52 (ø 1-10) 3T5103170M 3T5-10317-0 $9.73 1
(14) O-RING 2.4-9.6 3Y9103111M 3Y9-10311-0 BROWN $3.43 1
(15) AIR INJECTOR DISC SPRING 3Y9103120M 3Y9-10312-0 $3.74 3
(16) FUEL INJECTOR INSERT 3T5103140M 3T5-10314-0 $19.62 3
(17) COMPRESSION SEAL 3T5103160M 3T5-10316-0 FUEL & AIR INJECTOR $1.98 6 Sold Out View More Details
(18) FUEL INJECTOR ADAPTER 3T5103150M 3T5-10315-0 $19.62 3
(19) FUEL INJECTOR 3T5103000M 3T5-10300-0 BLUE / MARK 37003 $190.36 3
(20) O-RING 2.8-20.2 3T5103040M 3T5-10304-0 $11.79 1
(21) O-RING 3.5-7.5 3T5103030M 3T5-10303-0 $8.95 1
(22) FUEL REGULATOR 3T5101480M 3T5-10148-0 $107.82 1
(23) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.77 1
(24) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.94 1
(25) AIR REGULATOR ASSY 3GF100900M 3GF-10090-0 650KPA $121.68 1
(26) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.77 1
(27) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.94 1
(28) FUEL INJECTOR HOLDING PLATE 3T5103020M 3T5-10302-0 #2 #3 FUEL INJECTOR $1.64 2
(29) FUEL INJECTOR HOLDING PLATE 3Y9103020M 3Y9-10302-0 #1 FUEL INJECTOR $11.74 1
(30) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 $0.00 2 Sold Out View More Details
(31) LEAD WIRE BAND STAY 3T1761740M 3T1-76174-0 $0.00 2 Sold Out View More Details
(32) AIR HOSE ASSY L=300 3FW100880M 3FW-10088-0 AIR COMP-AIR RAIL $94.49 1
(33) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.67 2 Sold Out View More Details
(34) FUEL HOSE ASSY L=543 3FY100890M 3FY-10089-0 FFP-AIR RAIL $219.56 1
(35) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.67 2 Sold Out View More Details
(36) FUEL FILTER 3T5B101430 3T5B10143-0 $100.63 1
(37) PROTECTOR L=210 3Y7061570M 3Y7-06157-0 $2.33 1
(38) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.96 4
(39) FUEL FILTER RUBBER MOUNT 3T5101450M 3T5-10145-0 $3.41 1 Sold Out View More Details
(40) FUEL FILTER BAND 3FW101440M 3FW-10144-0 $18.66 1 Sold Out View More Details
(41) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.32 2
(42) COLLAR 6.7-12.7-3 3T5101530M 3T5-10153-0 AIR RAIL / FUEL INJECTOR $3.27 5
(43) BOLT 9101035616M 910103-5616 AIR RAIL / FUEL INJECTOR $1.22 5 Sold Out View More Details
(44) BOLT 9101035616M 910103-5616 $1.22 2 Sold Out View More Details
(45) VALVE CAP 3T5100990M 3T5-10099-0 $1.67 2
(46) HOSE 98AB50770M 98AB-50-770 AIR RAIL-FFP / STD 98AB-501000 $12.20 1
(47) FUEL HOSE W/PROTECTOR L=770 3FZ021651M 3FZ-02165-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(48) CLIP ø 9.5 3AB351430M 121-35143-0 AIR RAIL-FFP $1.39 2
(49) AIR PIPE 98AB50230M 98AB-5-0230 AIR RAIL-CYLINDER / 98AB-501000 $12.20 1
(50) CLIP ø10 338022150M 338-02215-0 AIR RAIL-CYLINDER $1.50 2
(51) AIR RAIL DECAL 3T5721960M 3T5-72196-0 $1.64 1
