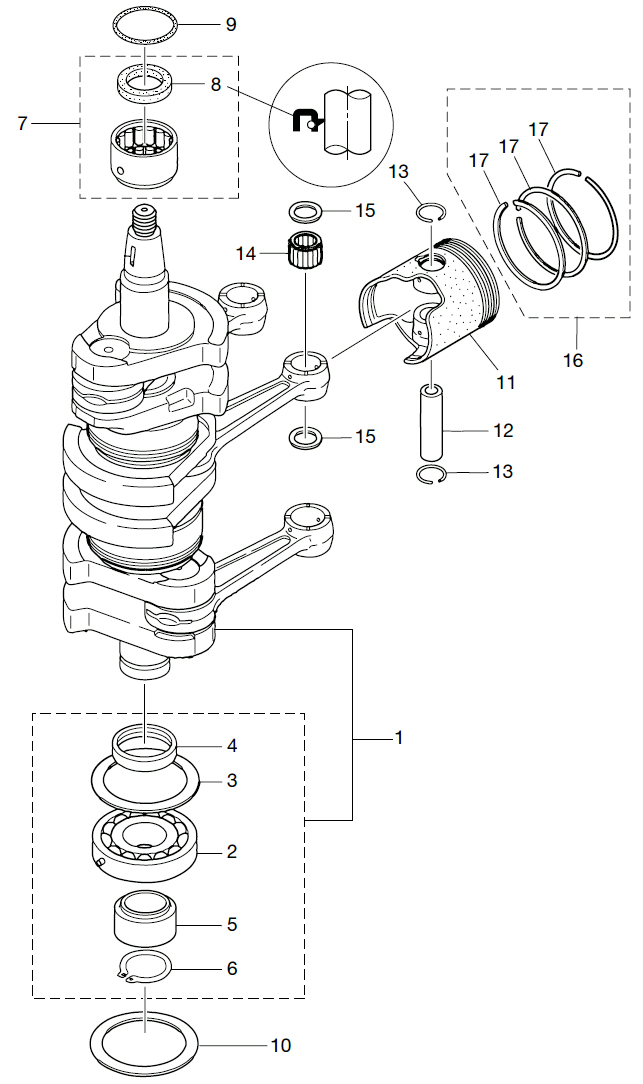

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(2) MAIN BEARING(3) THRUST PLATE 66-85-2(4) SPACER 40-52-7(5) SPACER 35-48.6-16(6) C-RING D=35(7) MAIN BEARING(8) OIL SEAL 36-46-6(9) O-RING 2.4-44.7(10) THRUST PLATE 66-85-2(11) PISTON(11) PISTON (0.5 O/S)(12) PISTON PIN o23(13) PISTON PIN CLIP(13) PISTON PIN CLIP(14) ROLLER BEARING 23-28-28(15) SMALL END BEARING WASHER(15) SMALL END BEARING WASHER(16) PISTON RING SET(16) PISTON RING SET (0.5 O/S)(17) PISTON RING(17) PISTON RING(17) PISTON RING(17) PISTON RING (0.5 O/S)(17) PISTON RING (0.5 O/S)(17) PISTON RING (0.5 O/S)



Parts List
2012 :: 75 HP :: TLDI Nissan NSD75C2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3FW000301M 3FW-00030-1 $1,827.84 1 Sold Out View More Details
(2) MAIN BEARING 3FW001180M 3FW-00118-0 LOWER $0.00 1 Sold Out View More Details
(3) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(4) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(5) SPACER 35-48.6-16 3T7001190M 3T7-00119-0 $0.00 1 Sold Out View More Details
(6) C-RING D=35 9451073500M 945107-3500 $0.99 1
(7) MAIN BEARING UPPER 3T5001130M 3T5-00113-0 UPPER $88.51 1
(8) OIL SEAL 36-46-6 3T5001210M 3T5-00121-0 $39.57 1
(9) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(10) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(11) PISTON 3FW000011M 3FW-00001-1 STD $133.47 3
(11) PISTON (0.5 O/S) 3FW000041M 3FW-00004-1 OPT $133.47 3
(12) PISTON PIN ø23 3T1000211M 3T1-00021-1 $27.89 3
(13) PISTON PIN CLIP 3T1000240M 3T1-00024-0 $1.27 6
(14) NEEDLE BEARING 23-28-28 3T1000420M 3T1-00042-0 $26.50 3
(15) SMALL END BEARING WASHER 3T1000460M 3T1-00046-0 $6.19 6
(16) PISTON RING SET 3FW871230M 3FW-87123-0 STD $44.48 3
(16) PISTON RING SET (0.5 O/S 3FW871240M 3FW-87124-0 OPT $49.82 3
(17) PISTON RING 1ST ( STD 3B7000110M 3B7-00011-0 STD $16.73 3
(17) PISTON RING 1ST (0.5MM O/S) 3B7000140M 3B7-00014-0 OPT $20.43 3
(17) PISTON RING 1ST ( STD 3B7000110M 3B7-00011-0 STD $16.73 3
(17) PISTON RING 1ST (0.5MM O/S) 3B7000140M 3B7-00014-0 OPT $20.43 3
