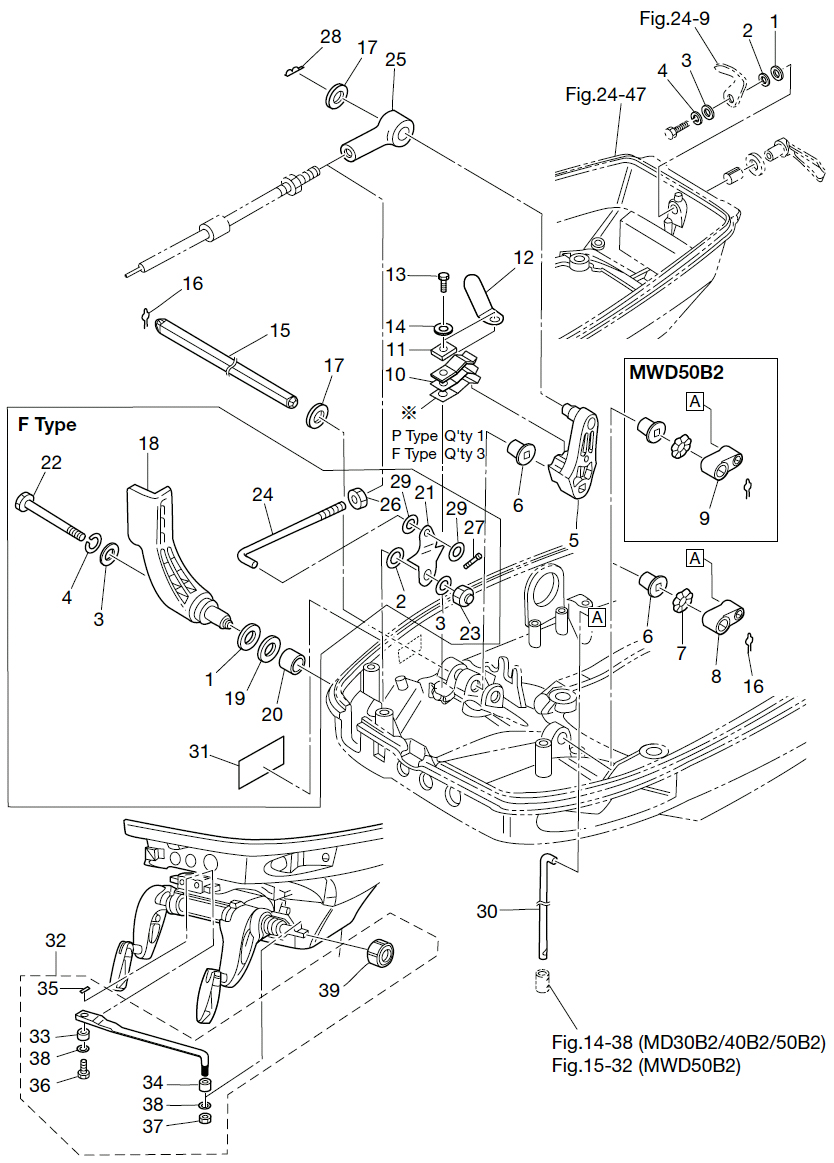

25. SHIFT

Click Here for Microfiche Usage Tip
(1) WASHER 14-22-1(1) WASHER 14-22-1(1) WASHER 14-22-1(1) WASHER 14-22-1(2) WAVE WASHER D=14(2) WAVE WASHER D=14(2) WAVE WASHER D=14(2) WAVE WASHER D=14(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(4) SPRING WASHER(4) SPRING WASHER(4) SPRING WASHER(4) SPRING WASHER(5) SHIFT ARM(6) BUSHING(6) BUSHING(7) WAVE WASHER D=12(8) SHIFT ROD LEVER(9) SHIFT ROD LEVER(10) SHIFT LEVER STOPPER(10) SHIFT LEVER STOPPER(11) SHIFT LEVER STOPPER(12) CLAMP 6.5-47.5P(13) BOLT(14) WASHER(15) SHIFT LEVER SHAFT(16) SNAP RETAINER D=8(16) SNAP RETAINER D=8(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(18) SHIFT LEVER(19) SEAL RING 13.8-22-5(20) HOOK LEVER BUSHING 14-16.5-17.7(21) SHIFT LEVER (REMOTE CONTROL)(22) BOLT(23) NYLON NUT 6-P1.0(24) SHIFT LEVER ROD(25) CABLE JOINT(25) CABLE JOINT(26) NUT 10-32UNF(27) SPLIT PIN 2-12(28) SNAP PIN D=8(28) SNAP PIN D=8(29) WASHER(29) WASHER(30) SHIFT ROD(31) SHIFT DECAL(32) DRAG LINK ASSY(33) COLLAR 9.6-13-6.5(34) COLLAR 9.6-19-6(35) SPLIT PIN(36) BOLT 3/8-19(37) NYLON NUT 3/8-24UNF(38) WASHER 9.6-18-2(38) WASHER 9.6-18-2(39) SEAL RING



Parts List
2012 :: 50 HP :: TLDI Tohatsu MD50B2 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) WASHER 14-22-1 3C8671460M 3C8-67146-0 FOR P TYPE / HOOK LEVER $1.47 1
(1) WASHER 14-22-1 3C8671460M 3C8-67146-0 FOR F TYPE / HOOK LEVER SHIFT LEVER $1.47 2
(2) WAVE WASHER D=14 9414031400M 941403-1400 FOR P TYPE / HOOK LEVER $0.83 1
(2) WAVE WASHER D=14 9414031400M 941403-1400 FOR F TYPE / HOOK LEVER SHIFT LEVER $0.83 2
(3) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR P TYPE / HOOK LEVER $1.41 1
(3) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR F TYPE / HOOK LEVER SHIFT LEVER $1.41 3
(4) SPRING WASHER 9413030600M 941303-0600 FOR P TYPE / HOOK LEVER $0.84 1
(4) SPRING WASHER 9413030600M 941303-0600 FOR F TYPE / HOOK LEVER SHIFT LEVER $0.84 2
(5) SHIFT ARM 3C8661221M 3C8-66122-1 $8.29 1
(6) SHIFT LEVER SHAFT BUSHING 350671010M 350-67101-0 $2.07 2
(7) WAVE WASHER D=12 9414031200M 941403-1200 $0.76 1
(8) SHIFT ROD LEVER 3C8662250M 3C8-66225-0 MD40/50B2 $7.59 1
(9) SHIFT ROD LEVER 3S7662250 3S7-66225-0 MWD50B2 $0.00 0 Sold Out View More Details
(10) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 FOR P TYPE / SHIFT ARM $1.89 1
(10) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 FOR F TYPE / SHIFT ARM $1.89 3
(11) SHIFT LEVER STOPPER 3C8661160M 3C8-66116-0 FOR P TYPE $2.53 1
(12) CLAMP 6.5-47.5P 309069720M 309-06972-0 FOR F TYPE $2.07 1
(13) BOLT 9101F40614M 9101F4-0614 $0.67 1
(14) WASHER 9401030600M 940103-0600 $0.70 1
(15) SHIFT SHAFT 3C8661350M 3C8-66135-0 $15.64 1
(16) SNAP RETAINER D=8 9517030800M 951703-0800 SHIFT LEVER SHAFT $0.83 2
(17) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR P TYPE / SHIFT LEVER SHAFT $2.39 1
(17) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR F TYPE / S/LEVER SHAFT SHIFT ARM $2.39 2
(17) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR P TYPE / SHIFT ARM $2.39 1
(18) SHIFT LEVER 3T5661100M 3T5-66110-0 FOR F TYPE $60.44 1
(19) SEAL RING 13.8-22-5 3T5671470M 3T5-67147-0 FOR F TYPE $8.33 1
(20) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 FOR F TYPE $1.66 1
(21) SHIFT LEVER B 3T5661290M 3T5-66129-0 FOR F TYPE $12.80 1
(22) BOLT 9101030670M 910103-0670 FOR F TYPE $2.81 1
(23) NYLON NUT 6-P 1.0 9304030600M 930403-0600 FOR F TYPE $2.25 1
(24) SHIFT LEVER ROD 3T5661340M 3T5-66134-0 FOR F TYPE $8.83 1
(25) CABLE JOINT 3B7837151M 3B7-83715-1 ROD END / FOR F TYPE $4.83 1 Sold Out View More Details
(25) CABLE JOINT 3B7837151M 3B7-83715-1 CABLE END / FOR P TYPE $4.83 1 Sold Out View More Details
(26) NUT (NO. 10-32VNF) 3B2838650M 3B2-83865-0 FOR F TYPE $1.27 1
(27) SPLIT PIN 2-12 9515030212M 951503-0212 FOR F TYPE $0.97 1
(28) SNAP PIN D=8 9516030800M 951603-0800 ROD END / FOR F TYPE $0.70 1
(28) SNAP PIN D=8 9516030800M 951603-0800 CABLE END / FOR P TYPE $0.70 1
(29) WASHER 9401030500M 940103-0500 FOR F TYPE $0.53 2
(30) SHIFT ROD 3C8662110M 3C8-66211-0 $15.87 1
(31) SHIFT DECAL 3T5675780M 3T5-67578-0 FOR F TYPE $2.25 1
(32) DRAG LINK E 3C8849102M 3C8-84910-2 FOR P TYPE $132.17 1
(33) COLLAR 9.6-13-6.5 3C8849141M 3C8-84914-1 FOR P TYPE $3.27 1
(34) COLLAR 9.6-19-6 3C8849160M 3C8-84916-0 FOR P TYPE $5.07 1
(35) SPLIT PIN 2-15 9515030215M 951503-0214 FOR P TYPE $0.84 1
(36) BOLT 3/8-19 3C8849170M 3C8-84917-0 FOR P TYPE $8.05 1
(37) NYLON NUT 3/8 353849180M 353-84918-0 FOR P TYPE $6.59 1
(38) WASHER 9.6-18-2 353849160M 353-84916-0 FOR P TYPE $1.45 2
(39) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR P TYPE $2.56 1 Sold Out View More Details
