20. BRACKET (2) POWER TRIM & TILT / GAS ASSIST

Click Here for Microfiche Usage Tip

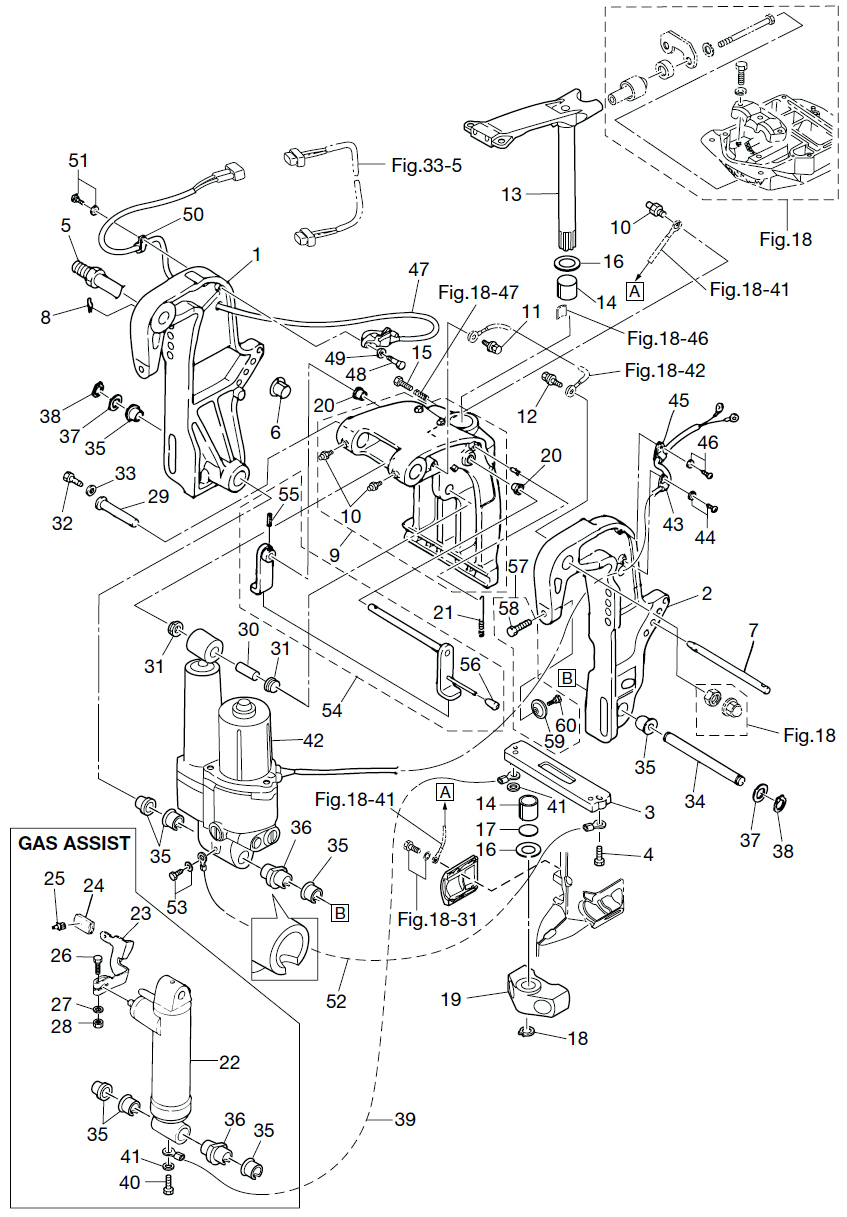

(1) CLAMP BRACKET (PTT-R)(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(3) ANODE(4) BOLT(5) SWIVEL BRACKET SHAFT ASSY(6) BUSHING(7) PTT THRUST ROD(8) SNAP PIN(9) SWIVEL BRACKET ASSY(10) GREASE FITTING(10) GREASE FITTING(11) BOLT(12) BOLT(13) STEERING SHAFT ASSY(14) BUSHING 30-36-41(14) BUSHING 30-36-41(15) BOLT(16) THRUST PLATE (UPPER)(16) THRUST PLATE (UPPER)(17) O-RING 3.5-29.7(18) C-RING D=28(19) MOUNT BRACKET(20) COLLAR 10.2-12-12(20) COLLAR 10.2-12-12(21) TILT STOPPER SPRING(22) GAS SHOCK ABSORBER(23) REVERSE LOCK LEVER(24) REVERSE LOCK LEVER GRIP(25) STOPPER(26) BOLT 6-35(27) WASHER(28) NUT(29) CYLINDER PIN (UPPER)(30) BUSHING 13-16-40(31) BUSHING 13-17-19.5(31) BUSHING 13-17-19.5(32) BOLT(33) WASHER 6.5-23-1.5(34) CYLINDER PIN (LOWER)(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(35) BUSHING 18-24-22(36) BUSHING 18-24-60(36) BUSHING 18-24-60(36) BUSHING 18-24-60(36) BUSHING 18-24-60(37) WASHER 18.2-34-1(37) WASHER 18.2-34-1(38) C-RING D=18(38) C-RING D=18(39) GROUND L=210(40) BOLT(41) WASHER(41) WASHER(42) PTT ASSY(43) CLAMP 6.5-47.5P(44) SCREW(45) CLAMP 6.5-14L(46) SCREW(47) TRIM SENSOR L=1700(48) BOLT(49) WASHER 6-16-1.5(50) CLAMP 6.5-47.5P(51) SCREW(52) GROUND L=130(53) BOLT(54) TILT STOPPER KIT(54) TILT STOPPER KIT(55) SPRING PIN 3.5-16(56) TILT STOPPER GRIP(57) CLAMP SCREW KIT(58) CLAMP SCREW (PTT)(59) CLAMP SCREW PAD(60) SHOULDER BOLT



Parts List
2012 :: 50 HP :: TLDI Tohatsu MD50B2 :: BRACKET (2) POWER TRIM & TILT / GAS ASSIST
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (PTT-R) 3GFQ772110 3GFQ77211-0 STERN BRACKET (R) / FOR PTT MODEL $185.34 1
(1) CLAMP BRACKET (PTT-R) 3GGQ772110 3GGQ77211-0 STERN BRACKET (R) / FOR GAS ASSIST MODEL $0.00 1 Sold Out View More Details
(2) CLAMP BRACKET (PTT-L) 3GFQ772120 3GFQ77212-0 STERN BRACKET (L) $185.34 1
(3) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(4) BOLT 9101036630M 910103-6630 $1.30 2
(5) SWIVEL BRACKET SHAFT 3AD621910M 3Z5-62191-0 BRACKET BOLT $41.18 1
(6) BUSHING BRACKET BOLT 3C8772130M 3C8-77213-0 $5.07 2
(7) THRUST ROD 3R0771180M 3R0-77118-0 $22.77 1
(8) SNAP PIN D=10 9516031000M 951603-1000 $1.13 1
(9) SWIVEL BRACKET ASSY 3Z7Q772081 3Z7Q77208-1 $374.73 1
(10) GREASE FITTING 344671771M 344-67177-0 $2.56 3 Sold Out View More Details
(11) BOLT 9101E35612M 910103-5612 SWIVEL BRACKET $1.07 1
(12) BOLT 9101E35612M 910103-5612 CLAMP BRACKET $1.07 1
(13) STEERING SHAFT ASSY 3Z5Q620101 3Z5Q62010-1 $308.12 1
(14) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(15) BOLT 9101E30830M 9101E3-0830 $1.67 1
(16) THRUST PLATE 353624231M 353624230M $3.92 2
(17) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(18) C-RING D=28 9451032800M 945103-2800 $1.06 1
(19) MOUNT BRACKET 3Z5Q614111 3Z5Q61411-1 $0.00 1 Sold Out View More Details
(20) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(21) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(22) GAS SHOCK ABSORBER 3Z5776010 3Z5-77601-0 FOR GAS ASSIST MODEL $770.62 1
(23) LOCK LEVER 3R0663110M 3R0-66311-0 FOR GAS ASSIST MODEL $28.78 1
(24) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 FOR GAS ASSIST MODEL $3.62 1
(25) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR GAS ASSIST MODEL $1.27 1
(26) BOLT 6-35 3V2600010M 3V1-60001-0 FOR GAS ASSIST MODEL $3.43 1
(27) WASHER 9401E30600M 9401E3-0600 FOR GAS ASSIST MODEL $0.00 1 Sold Out View More Details
(28) NUT 9301E30600M 9301E3-0600 FOR GAS ASSIST MODEL $0.52 1 Sold Out View More Details
(29) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 FOR PTT MODEL $8.58 1
(30) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 FOR PTT MODEL $1.57 1
(31) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 FOR PTT MODEL $1.57 2
(32) BOLT 9101E30612M 9101E3-0612 FOR PTT MODEL $0.84 1
(33) WASHER 6.5-23-1.5 345051221M 345-05122-1 FOR PTT MODEL $2.17 1
(34) CYLINDER PIN (LOWER) 3R0771011M 3R0-77101-0 FOR PTT MODEL $38.19 1
(35) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 FOR GAS ASSIST MODEL $2.31 5
(35) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 FOR PTT MODEL $2.31 5
(36) BUSHING 18-24-60 3Z5771030M 3Z5-77103-0 FOR GAS ASSIST MODEL $3.17 1
(36) BUSHING 18-24-60 3Z5771030M 3Z5-77103-0 FOR PTT MODEL $3.17 1
(37) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 FOR PTT MODEL $2.40 2
(38) C-RING D=18 9451031800M 945103-1800 FOR PTT MODEL $1.93 2
(39) GROUND CABLE 3C8623961M 3C8-62396-0 GAS ASSIST-SWIVEL B/K / FOR GAS ASSIST MODEL $4.56 1
(40) BOLT 9101035608M 910103-5608 GROUND EARTH / FOR GAS ASSIST MODEL $1.59 1
(41) WASHER 9401030600M 940103-0600 GROUND EARTH / FOR GAS ASSIST MODEL $0.70 2
(42) PTT ASSY 3Z5771501M 3Z5-77150-1 FOR PTT MODEL $1,410.91 1
(43) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR PTT MODEL $1.41 1
(44) SCREW 9215035612M 921503-5612 FOR PTT MODEL $0.86 1
(45) CLAMP 6.5-14L 345069150M 345-06915-0 FOR PTT MODEL $4.63 1
(46) SCREW 9215035612M 921503-5612 FOR PTT MODEL $0.86 1
(47) TRIM SENSOR 3Z4725740M 3Z4-72574-0 FOR EPTO MODEL $220.86 1
(48) BOLT 9101030620M 910103-0620 FOR EPTO MODEL $1.04 2
(49) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR EPTO MODEL $1.41 2
(50) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR EPTO MODEL $1.41 1
(51) SCREW 9215035612M 921503-5612 FOR EPTO MODEL $0.86 1
(52) GROUND CABLE 398623961M 398-62396-1 PTT ASSY-ANODE FOR PTT MODEL $5.75 1 Sold Out View More Details
(53) BOLT 9101E35612M 910103-5612 FOR PTT MODEL $1.07 1
(54) TILT STOPPER KIT 3GF624661M 3Z5S62470-0 TWO HOLES / FOR PTT MODEL $66.77 1
(54) TILT STOPPER KIT 3AC624661M 3AC-62466-1 NONE HOLE FOR GAS ASSIST MODEL $66.77 1
(55) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(56) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(57) CLAMP SCREW KIT 3C8772170M 3C8-77217-0 $64.68 2
(58) CLAMP SCREW (PTT) 3C8772160M 3C8-77214-0 $39.91 1
(59) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(60) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
