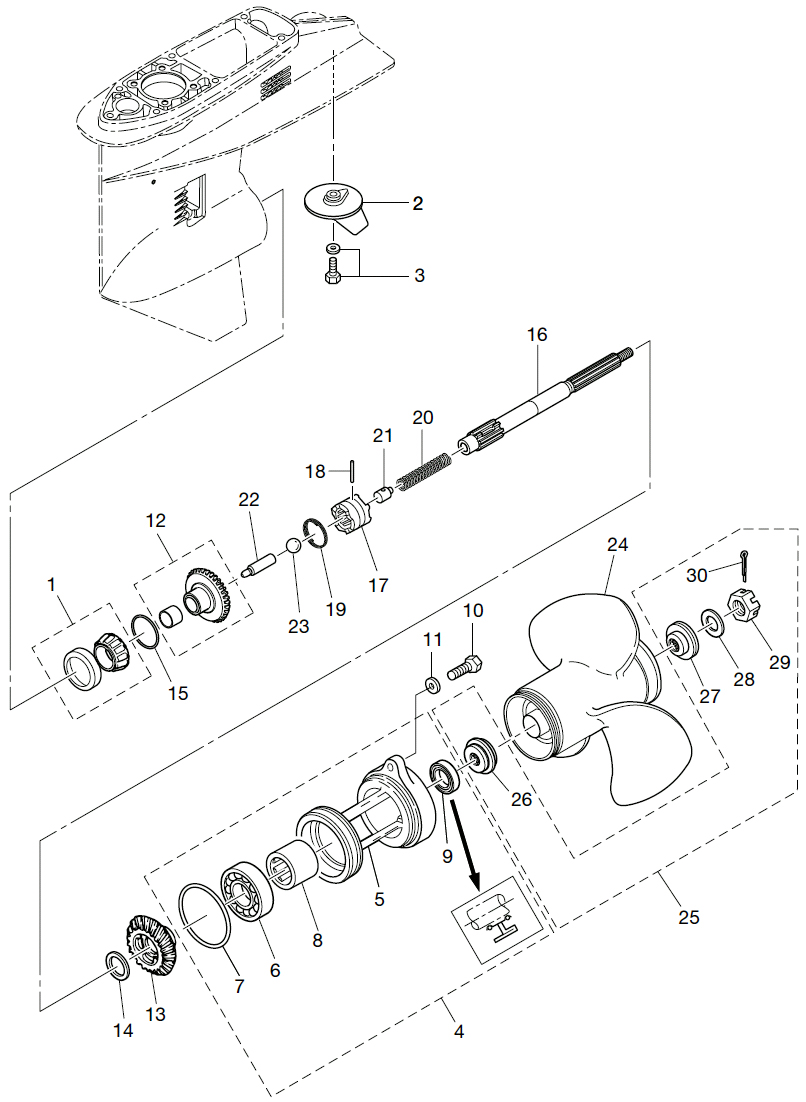

16. GEAR CASE (PROPELLER SHAFT) MD40/50B2

Click Here for Microfiche Usage Tip
(1) TAPERED ROLLER BEARING 32007(2) TRIM TAB(3) BOLT(4) PROPELLER SHAFT HOUSING ASSY(5) PROPELLER SHAFT HOUSING(6) BALL BEARING 6007(7) O-RING 3.5-69.4(8) ROLLER BEARING 22-30-30(9) OIL SEAL 22-36-10(10) PRE-COATED BOLT 6-25(11) WASHER(12) BEVEL GEAR ASSY (A)(13) BEVEL GEAR C(14) WASHER 22.1-28-3(15) SHIM 36-44-0.3(15) SHIM 36-44-0.15(15) SHIM 36-44-0.1(16) PROPELLER SHAFT(17) CLUTCH(18) PIN(19) SNAP(20) SPRING(21) SPRING RETAINER(22) PUSH ROD(23) BALL 3/8(24) PROPELLER ASSY (13")(24) PROPELLER ASSY (11")(24) PROPELLER ASSY (12")(24) PROPELLER ASSY (7?)(24) PROPELLER ASSY (9")(24) PROPELLER ASSY (14")(24) PROPELLER ASSY (15")(25) PROPELLER HARDWARE KIT(26) THRUST HOLDER(27) STOPPER(28) WASHER 17-32-3(29) PROPELLER NUT(30) SPLIT PIN 3-25



Parts List
2012 :: 50 HP :: TLDI Tohatsu MD50B2 :: GEAR CASE (PROPELLER SHAFT) MD40/50B2
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 32007 345602150M 345-60215-0 $50.65 1
(2) TRIM TAB 3C8602171M 3C8-60217-1 $13.60 1
(3) BOLT 9101035620M 910103-5620 $1.30 1
(4) PROPELLER SHAFT HOUSING ASSY 3C8Q601000 3C8Q60100-0 $108.93 1
(5) PROPELLER SHAFT HOUSING 3C8Q601010 3C8Q60101-0 $70.66 1
(6) BEARING 6007 960106007M 9601-0-6007 $17.62 1
(7) O-RING 3.53-69.44 345601030M 345-60103-0 $4.38 1
(8) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(9) OIL SEAL 22-36-10 334602230M 334-60223-0 $9.46 1
(10) PRE-COATED BOLT 6-25 3C8601081M 3C8-60108-0 $2.62 2
(11) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(12) BEVEL GEAR A 3C8640101M 3C8-64010-1 $143.15 1
(13) BEVEL GEAR C 3C8640300M 3C8-64030-0 $134.35 1
(14) WASHER 22.1-28-3 345640320M 345-64032-0 $5.07 1
(15) SHIM 36-44-0.3 353640360M 353-64036-0 $1.56 0
(15) SHIM 36-44-0.15 353640370M 353-64037-0 $1.56 0
(15) SHIM 36-44-0.1 353640380M 353-64038-0 $1.79 0
(16) PROPELLER SHAFT 3C8642110M 3C8-64211-0 $220.25 1
(17) CLUTCH 3C8642152M 3C8-64215-2 $74.89 1
(18) CLUTCH PIN 3C8642170M 3C8-64217-0 $3.04 1 Sold Out View More Details
(19) CLUTCH PIN SNAP 3C8642191M 3C8-64219-1 $1.61 1
(20) CLUTCH SPRING 3C8642210M 3C8-64221-0 $1.85 1
(21) CLUTCH SPRING RETAINER 3C8642220M 3C8-64222-0 $10.81 1
(22) PUSH ROD CLUTCH 3C8642231M 3C8-64223-1 $11.02 1
(23) STEEL BALL 318 9650020803M 965002-0803 $1.13 1
(24) PROPELLER ASSY (13) 3T5B645270 3T5-64527-0 50PS & ITALY 40PS / STD 3X277X330 $131.96 1
(24) PROPELLER ASSY (11) 3T5B645230 3T5-64523-0 30PS / STD 3X290X279 $131.96 1
(24) PROPELLER ASSY (12) 3T5B645250 3T5-64525-0 40PS EXCEPT ITALY / STD 3X283X305 $131.96 1
(24) PROPELLER ASSY (7?) 348B641080 348W64108-0 OPT 4X290X180 $169.01 1
(24) PROPELLER ASSY (9) 3T5B645180 3T5-64518-0 OPT 3X311X229 $131.96 1
(24) PROPELLER ASSY (14) 3T5B645290 3T5-64529-0 OPT 3X279X356 $131.96 1
(24) PROPELLER ASSY (15) 3T5B645320 3T5-64532-0 OPT 3X278X381 $131.96 1
(25) PROPELLER HARDWARE KIT 3T5873260M 3T5-87326-0 $74.09 1
(26) THRUST HOLDER 3C8642310M 3C8-64231-0 $50.42 1
(27) PROPELLER STOPPER 348642320M 348-64232-0 $19.84 1
(28) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(29) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(30) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
