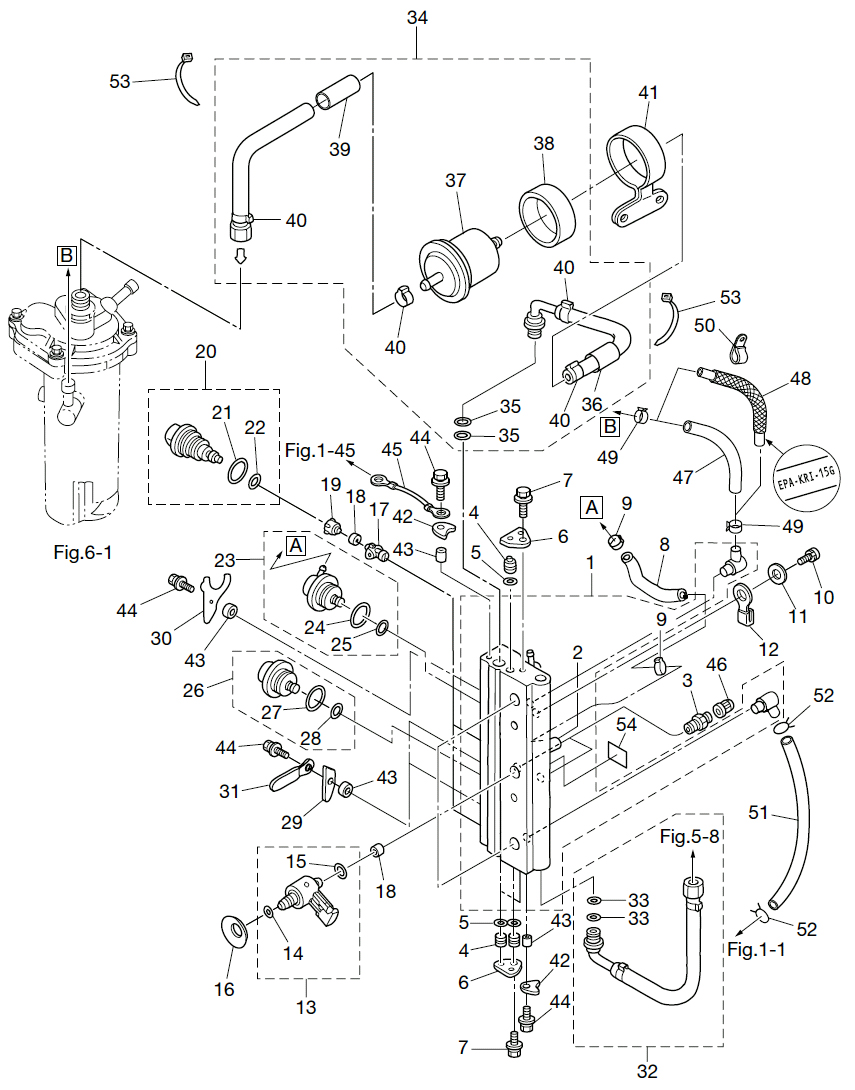

4. AIR RAIL

Click Here for Microfiche Usage Tip
(1) AIR RAIL ASSY(2) NIPPLE(3) VALVE ASSY (PRESSURE CHECK)(4) PLUG 10.5(4) PLUG 10.5(5) O-RING 1.9-6.8(5) O-RING 1.9-6.8(6) PLUG STOPPER(6) PLUG STOPPER(7) BOLT(7) BOLT(8) HOSE(9) CLAMP 29/64(9) CLAMP 29/64(10) BOLT(11) WASHER(12) CLAMP 8.5-70P(13) AIR INJECTOR COMPLETE(14) O-RING 5-52(15) O-RING 2.4-9.5(16) DISC SPRING(17) FUEL INJECTOR INSERT(18) SEAL(18) SEAL(19) FUEL INJECTOR ADAPTER(20) FUEL INJECTOR ASSY(21) O-RING 2.8-20.2(22) O-RING 3.5-7.5(23) FUEL REGULATOR ASSY(24) O-RING 2.5-20(25) O-RING 2.5-5(26) AIR REGULATOR ASSY(27) O-RING 2.5-20(28) O-RING 2.5-5(29) HOLDING PLATE(30) HOLDING PLATE(31) CLAMP 6.5-47.5P(32) AIR HOSE ASSY(33) O-RING 1.9-9.8(33) O-RING 1.9-9.8(34) FUEL HOSE ASSY(35) O-RING 1.9-9.8(35) O-RING 1.9-9.8(36) PROTECTOR o18-135(37) HIGH PRESSURE FUEL FILTER(38) FUEL FILTER RUBBER MOUNT(39) PROTECTOR o18-150(40) CLAMP 21/32(40) CLAMP 21/32(40) CLAMP 21/32(40) CLAMP 21/32(41) FUEL FILTER BAND(42) HOLDING PLATE(42) HOLDING PLATE(43) COLLAR 6.7-12.7-3(43) COLLAR 6.7-12.7-3(43) COLLAR 6.7-12.7-3(43) COLLAR 6.7-12.7-3(44) BOLT(44) BOLT(44) BOLT(44) BOLT(45) GROUND L=110(46) CAP(47) HOSE(48) FUEL HOSE W/PROTECTOR(49) CLIP o9.4(49) CLIP o9.4(50) CLAMP 6.5-14L(51) HOSE(52) CLIP o10(52) CLIP o10(53) BAND 203(53) BAND 203(54) AIR RAIL DECAL



Parts List
2012 :: 50 HP :: TLDI Tohatsu MD50B2 :: AIR RAIL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR RAIL 3T5100801M 3T5-10080-1 $320.56 1
(2) L-NIPPLE 3T5101660M 3T5-10166-0 $8.80 1
(3) VALVE 3T5100980M 3T5-10098-0 $11.16 2 Sold Out View More Details
(4) PLUG ø 10.5 3T5101670M 3T5-10167-0 $2.94 3
(5) O-RING 1.9-6.8 3T5101641M 3T5-10164-0 $2.22 3
(6) PLUG STOPPER 3T5101650M 3T5-10165-0 $1.22 2
(7) BOLT 9101036612M 910103-6612 $1.16 2
(8) HOSE 98AY45105M 98AJ-4-0105 FUEL REGULATOR -AIR RAIL $8.29 1
(9) CLAMP 29/64 3T5100910M 3T5-10091-0 $6.99 2
(10) BOLT 9101030865M 910103-0865 $1.70 2
(11) WASHER 9401030800M 940113-0800 $0.84 2
(12) CLAMP 8.5-70P 3T5069721M 3T5-06972-1 $1.93 1
(13) AIR INJECTOR COMPLETE 3GF103100M 3GF-10310-0 $235.80 3
(14) O-RING 5-52 (ø 1-10) 3T5103170M 3T5-10317-0 $9.09 1
(15) O-RING 2.4-9.6 3Y9103111M 3Y9-10311-0 $3.20 1
(16) AIR INJECTOR DISC SPRING 3Y9103120M 3Y9-10312-0 $3.50 3
(17) FUEL INJECTOR INSERT 3T5103140M 3T5-10314-0 $18.34 3
(18) COMPRESSION SEAL 3T5103160M 3T5-10316-0 $1.85 6 Sold Out View More Details
(19) FUEL INJECTOR ADAPTER 3T5103150M 3T5-10315-0 $18.34 3
(20) FUEL INJECTOR 3T5103000M 3T5-10300-0 $177.91 3
(21) O-RING 2.8-20.2 3T5103040M 3T5-10304-0 $11.02 1 Sold Out View More Details
(22) O-RING 3.5-7.5 3T5103030M 3T5-10303-0 $8.37 1
(23) FUEL REGULATOR 3T5101480M 3T5-10148-0 $100.77 1
(24) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(25) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(26) AIR REGULATOR ASSY 3GF100900M 3GF-10090-0 $113.72 1
(27) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(28) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(29) FUEL INJECTOR HOLDING PLATE 3T5103020M 3T5-10302-0 $1.53 2
(30) FUEL INJECTOR HOLDING PLATE 3Y9103020M 3Y9-10302-0 $10.98 1
(31) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(32) AIR HOSE 3T5100880M 3T5-10088-0 $80.91 1
(33) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(34) FUEL HOSE ASSY 3GF100890M 3GF-10089-0 $244.21 1
(35) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(36) PROTECTOR ø18-135 3Z4061570M 3Z4-06157-0 $3.40 1 Sold Out View More Details
(37) FUEL FILTER 3T5B101430 3T5B10143-0 $94.05 1
(38) FUEL FILTER RUBBER MOUNT 3T5101450M 3T5-10145-0 $3.18 1
(39) PROTECT TUBE 3U1061570M 3U1-06157-0 $3.52 1
(40) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.58 4
(41) FUEL FILTER BAND 3Z5101440M 3Z5-10144-0 $0.00 1 Sold Out View More Details
(42) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.22 2
(43) COLLAR 6.7-12.7-3 3T5101530M 3T5-10153-0 $3.05 5
(44) BOLT 9101036616M 910103-6616 $1.20 5
(45) GROUNG CABLE 3A3623961M 3A3-62396-0 AIR RAIL-CYLINDER $17.85 1
(46) VALVE CAP 3T5100990M 3T5-10099-0 $1.56 2
(47) HOSE 98AB50530 98AB-50-530 AIR RAIL-FFP / STD 98AB-501000 $11.41 1
(48) FUEL HOSE W/PROTECTOR 3GJ021651M 3GJ-02165-1 LOW PERMEATION PARTS / EPA-KRI-15G USA $0.00 1 Sold Out View More Details
(49) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 2
(50) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(51) FUEL PIPE A 98AB50280M 98AB-5-0280 AIR RAIL-CYLINDER / 98AB-501000 $11.41 1
(52) CLIP ø10 338022150M 338-02215-0 $1.41 2
(53) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 4 Sold Out View More Details
(54) AIR RAIL DECAL 3T5721960M 3T5-72196-0 $1.53 1
