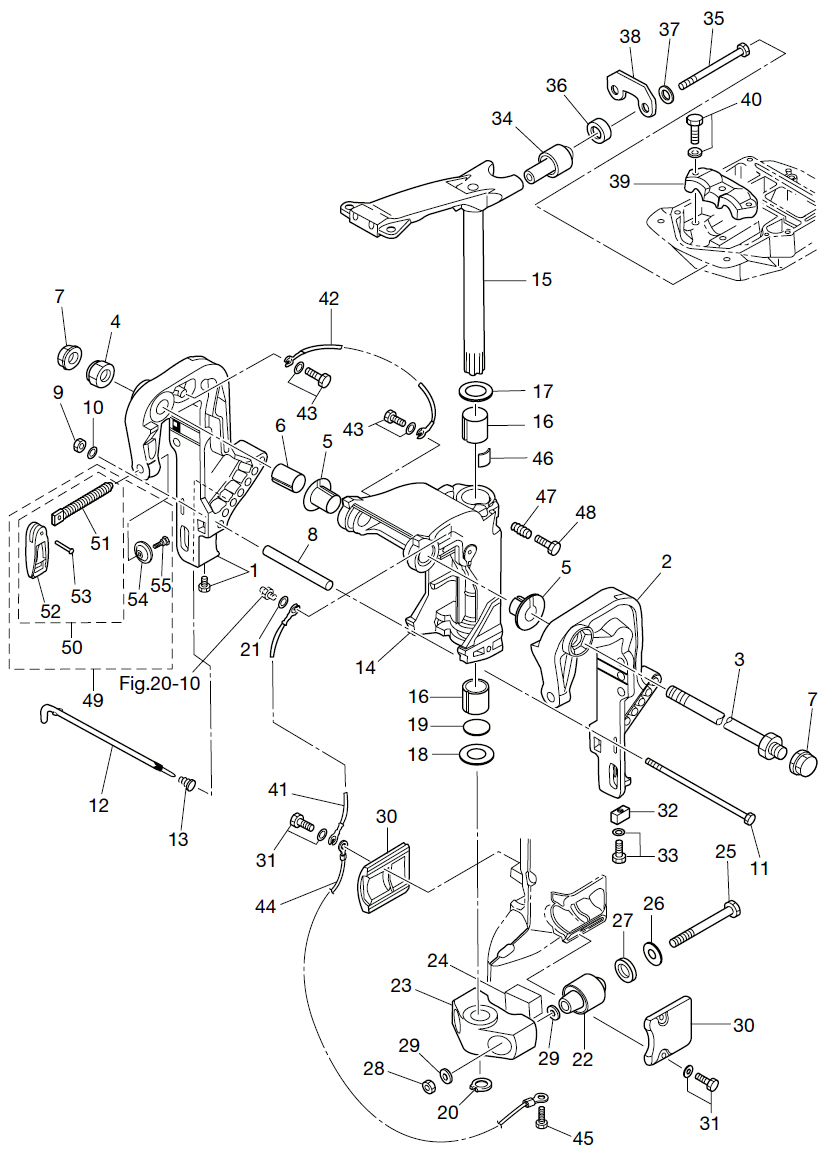

18. BRACKET (1) MANUAL TILT (EFO/EPO MODEL)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (R)(2) CLAMP BRACKET (L)(3) SWIVEL BRACKET SHAFT ASSY(4) NYLON NUT 7/8-14UNF(5) BUSHING 26-32(5) BUSHING 26-32(6) BUSHING 22-25-35.5(7) CAP NUT(7) CAP NUT(8) DISTANCE PIECE(9) NUT(10) WASHER(11) BOLT 8-170(12) THRUST ROD(13) THRUST ROD SPRING(14) SWIVEL BRACKET(15) STEERING SHAFT ASSY(16) BUSHING 26-32(16) BUSHING 26-32(17) THRUST PLATE (UPPER) 27-50-1(18) THRUST PLATE (LOWER) 26.5-46-1(19) O-RING 3.5-25.7(20) C-RING(21) WASHER(22) RUBBER MOUNT (LOWER)(23) MOUNT BRACKET(24) DAMPER (LOWER)(25) BOLT(26) WASHER 13-34-3(27) DAMPER 21-36-5(28) NYLON NUT 12-P1.75(29) WASHER(29) WASHER(30) MOUNT HOLDING PLATE (LOWER)(30) MOUNT HOLDING PLATE (LOWER)(31) BOLT(31) BOLT(32) ANODE(33) BOLT(34) RUBBER MOUNT (UPPER)(35) BOLT(36) DAMPER (UPPER)(37) WASHER(38) LOCK PLATE(39) MOUNT HOLDING PLATE (UPPER)(40) BOLT(41) GROUND L=210(42) GROUND L=130(43) BOLT(43) BOLT(44) GROUND L=110(45) BOLT(46) FRICTION PIECE(47) FRICTION SPRING(48) BOLT(49) CLAMP SCREW KIT(50) CLAMP SCREW ASSY(51) CLAMP SCREW(52) CLAMP SCREW HANDLE(53) RIVET 3-22(54) CLAMP SCREW PAD(55) SHOULDER BOLT



Parts List
2012 :: 50 HP :: TLDI Nissan NSD50B2 :: BRACKET (1) MANUAL TILT (EFO/EPO MODEL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (R) 3C8Q621121 3C8Q62112-1 STERN BRACKET / STARBOARD SIDE $123.66 1
(2) CLAMP BRACKET (L) 3C8Q621131 3C8Q62113-1 STERN BRACKET / PORT SIDE $109.19 1
(3) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $41.18 1
(4) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(5) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(6) BUSHING 22-25-35.5 3C8621320M 3C8-62132-0 $4.83 1
(7) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(8) DISTANCE PIECE 3C8621171M 3C8-62117-1 $13.43 1
(9) NUT 9301030800M 930103-0800 $1.99 1
(10) WASHER 9401E30800M 9401E3-0800 $0.65 1
(11) BOLT 8-170 3C8621201M 3C8621200M $9.09 1
(12) THRUST ROD 3C8621211M 3C8-62121-1 $19.27 1 Sold Out View More Details
(13) SPRING THRUST ROD 345621222M 345-62122-2 $2.19 1 Sold Out View More Details
(14) SWIVEL BRACKET 3C8Q623103 3C8Q62310-3 $232.67 1
(15) STEERING SHAFT ASSY 3C8Q620103 3C8Q62010-3 $0.00 1 Sold Out View More Details
(16) BUSHING 26-32-30 345624170M 345-62417-0 $7.08 2
(17) THRUST PLATE (UPPER) 3A0624232M 3A0-62423-2 $2.82 1
(18) THRUST PLATE (LOWER) 346624241M 346-62424-1 $3.02 1
(19) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.10 1 Sold Out View More Details
(20) C-RING D=25 9451032500M 945103-2500 $1.75 1
(21) WASHER 9401030600M 940103-0600 $0.70 1
(22) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(23) MOUNT BRACKET 3C8Q614113 3C8Q61411-3 $83.35 1
(24) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(25) RUBBER MOUNT BOLT (LOWER) 3C8613211M 3C8-61321-1 $9.66 2
(26) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(27) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(28) NYLON NUT 12-P1.75 9304031200M 930403-1200 $6.47 2
(29) WASHER 9402E31200M 940203-1200 $2.10 4
(30) MOUNT HOLDING PLATE (LOWER) 3C8Q613420 3C8Q61342-0 RUBBER MOUNT CAP $16.27 2
(31) BOLT 9101E35620M 910113-5620 $1.30 4
(32) ANODE 3B7602181M 3B7-60218-1 FOR EFO/EPO MODEL $13.25 1
(33) BOLT 9101035635M 910103-5635 FOR EFO/EPO MODEL $1.96 1 Sold Out View More Details
(34) RUBBER MOUNT (UPPER) 3E3613011M 3E3-61301-1 $32.23 2
(35) BOLT 353613071M 353-61307-1 $10.35 2
(36) DAMPER (UPPER) 3E3613330M 3E3-61333-0 $8.97 2
(37) WASHER 10-29-3 353613350M 353-61335-0 $2.31 2
(38) LOCK PLATE (UPPER) 3E3613350M 3E3-61335-0 $5.29 1
(39) MOUNT HOLDING PLATE (UPPER) 3C8613410M 3C8-61341-0 RUBBER MOUNT CAP $0.00 1 Sold Out View More Details
(40) BOLT 9101E35835M 910113-5835 $3.28 3
(41) GROUND CABLE 3C8623961M 3C8-62396-0 SWIVEL BRACKET / -DRIVE SHAFT HOUSING $4.56 1
(42) GROUND CABLE 398623961M 398-62396-1 CLAMP BRACKET -SWIVEL BRACKET $5.75 1 Sold Out View More Details
(43) BOLT 9101E35612M 910103-5612 CLAMP BRACKET -SWIVEL BRACKET $1.07 2
(44) GROUNG CABLE 3A3623961M 3A3-62396-0 MOUNT BRACKET -DRIVE SHAFT HOUSING $17.85 1
(45) BOLT 9101E35612M 910103-5612 $1.07 1
(46) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(47) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(48) BOLT 9101E30830M 9101E3-0830 $1.67 1
(49) CLAMP SCREW KIT 3E3Q621050 3E3Q62105-0 $56.36 2
(50) CLAMP SCREW ASSY 3E3Q621080 3E3Q62108-0 $80.68 1
(51) CLAMP SCREW 3E3621060M 3E3-62106-0 $54.83 1
(52) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 1
(53) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 1
(54) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(55) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
