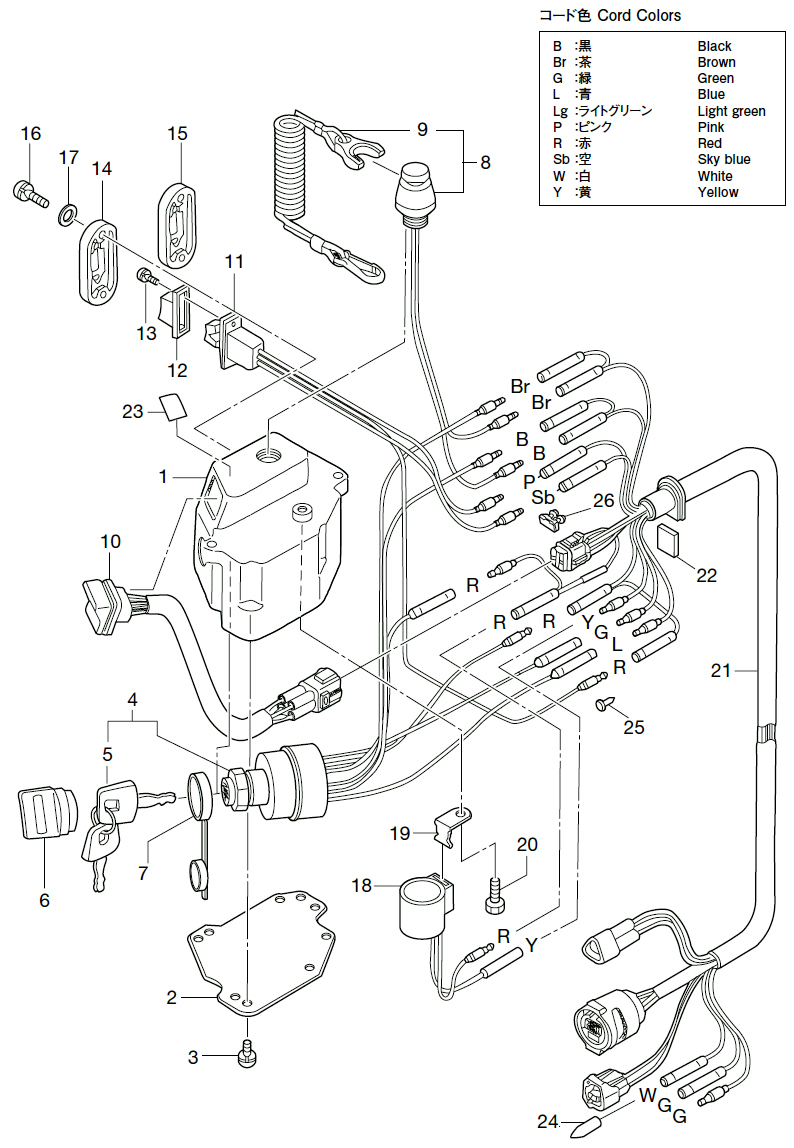

23. SWITCH BOX (F TYPE)

Click Here for Microfiche Usage Tip
(1) SWITCH BOX(2) SWITCH BOX COVER(3) SCREW(4) MAIN SWITCH ASSY(5) MAIN SWITCH KEY F-301(5) MAIN SWITCH KEY F-302(5) MAIN SWITCH KEY F-303(6) MAIN SWITCH KEY COVERING CAP(7) MAIN SWITCH CAP (WATERPROOF)(8) STOP SWITCH ASSY(9) STOP SWITCH LANYARD ASSY(10) PILOT LAMP ASSY(11) PTT SWITCH ASSY(12) PTT SWITCH COVER(13) SCREW(14) GROMMET(15) PTT SWITCH COVER (B)(16) SCREW(17) WASHER(18) OVERHEAT BUZZER(19) STAY(20) BOLT(21) CORD ASSY L=1000(22) COVER(23) WARNING LAMP DECAL(24) CABLE TERMINAL PLUG(25) CABLE TERMINAL PLUG(26) CABLE TERMINAL PLUG



Parts List
2012 :: 40 HP :: TLDI Tohatsu MD40B2 :: SWITCH BOX (F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWITCH BOX 3T5Q760320 3T5Q76032-0 $73.60 1
(2) SWITCH BOX COVER 3T5762300M 3T5-76230-0 $16.79 1
(3) SCREW 9215035510M 921503-5510 $0.42 4
(4) MAIN SWITCH 385760201M 385-76020-1 $56.65 1
(5) MAIN SWITCH KEY (NO. 301) 353762031M 3F3-76217-0 $17.62 0
(5) MAIN SWITCH KEY (NO. 302) 353762032M 3F3-76218-0 $17.62 0
(5) MAIN SWITCH KEY (NO. 303) 353762033M 3F3-76219-0 $17.62 0
(6) MAIN SWITCH KEY COVER 353762051M 353-76205-1 $4.90 2
(7) MAIN SWITCH CAP 3T5760220M 3T5-76022-0 $5.23 1
(8) LANYARD STOP SWITCH 3T5068300M 3T5-06830-0 $35.10 1
(9) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(10) WARNING LAMP 3T5710400M 3T5-71040-0 $76.32 1
(11) PTT SWITCH 3T5725700M 3T5-72570-0 FOR EFTO MODEL $52.53 1
(12) PTT SWITCH COVER 353725910M 353-72591-0 FOR EFTO MODEL $5.55 1
(13) SCREW 9215035206M 921503-5206 FOR EFTO MODEL $0.46 2
(14) PTT SWITCH COVER 3T5726180M 3T5-72618-0 FOR EFTO MODEL $3.51 1
(15) PTT SWITCH COVER B 3T5726110M 3T5-72611-0 FOR MANUAL & GAS ASSIST MODEL $3.51 1
(16) SCREW 9215030512M 921503-5512 $0.83 2
(17) WASHER 9401030500M 940103-0500 $0.53 2
(18) OVER-HEAT BUZZER 3C8761710M 3C8-76171-0 $34.51 1
(19) OVER-HEAT BUZZER STAY 3T5761740M 3T5-76174-0 $0.00 1 Sold Out View More Details
(20) BOLT 9101036612M 910103-6612 $1.16 1
(21) CORD ASSY L=1000 3GF761190M 3T5-76119-0 $254.56 1 Sold Out View More Details
(22) SWITCH BOX GROMMET 3B7760350M 3B7-76035-0 $0.00 1 Sold Out View More Details
(23) WARNING DECAL 3T5721980M 3T5-72198-0 $0.00 1 Sold Out View More Details
(24) CABLE TERMINAL PLUG 3T5760370M 3A3-76037-0 $1.50 1
(25) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR MANUAL & GAS ASSIST MODEL $1.50 1
(26) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR MANUAL & GAS ASSIST MODEL $2.53 1
