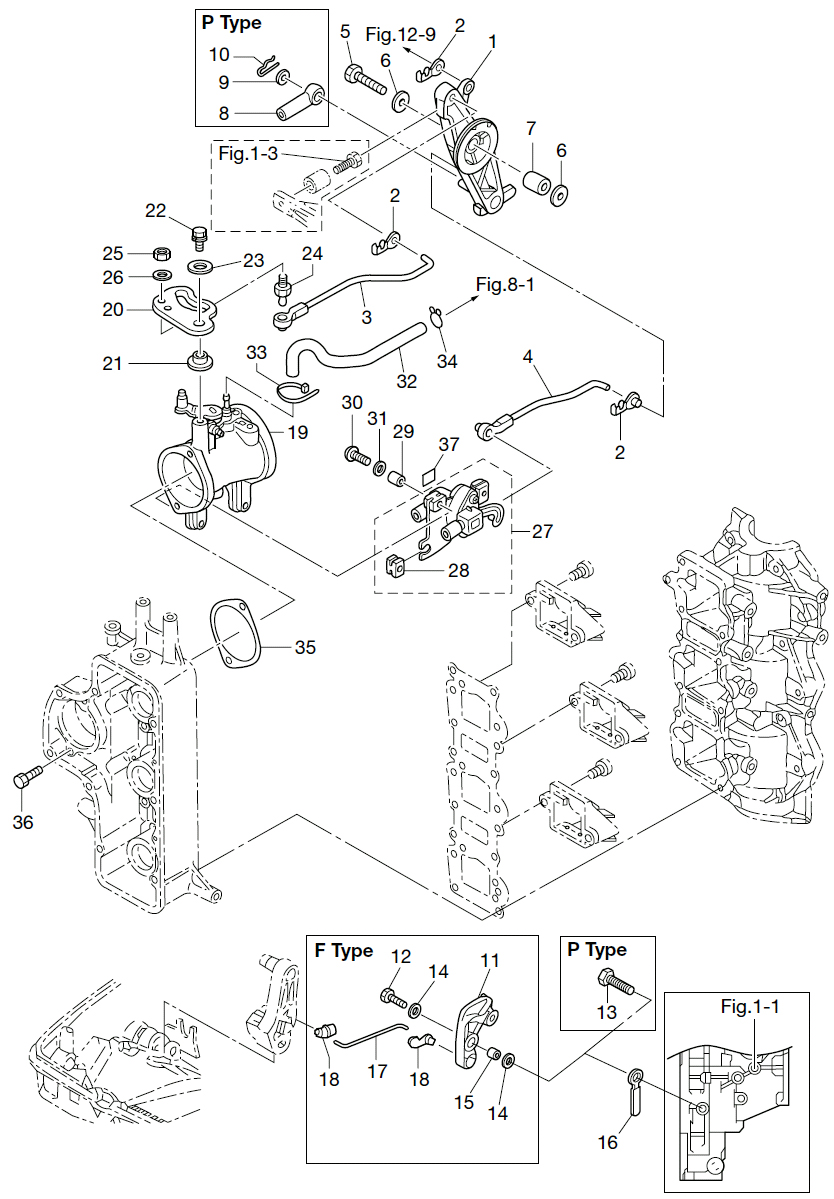

7. THROTTLE

Click Here for Microfiche Usage Tip
(1) ADVANCER ARM(2) ROD SNAP 5-3(2) ROD SNAP 5-3(2) ROD SNAP 5-3(3) LINK ROD ASSY (THROTTLE)(4) LINK ROD ASSY (TPS)(5) BOLT(6) WASHER 6.5-21-1(6) WASHER 6.5-21-1(7) COLLAR 6.2-12-17(8) CABLE JOINT(9) WASHER 8.5-18-1.6(10) SNAP PIN D=8(11) THROTTLE LIMITER ARM(12) BOLT(13) BOLT(14) WASHER(14) WASHER(15) COLLAR 6.2-9-9.3(16) CLAMP 6.5-67P(17) THROTTLE LIMITER ROD 3.5-56(18) ROD SNAP 3.5-4(18) ROD SNAP 3.5-4(19) THROTTLE BODY ASSY(19) THROTTLE BODY ASSY(20) THROTTLE CAM(21) BUSHING 6-24-7(22) BOLT(23) WASHER 6.5-21-1(24) BALL JOINT(25) NUT(26) WASHER(27) TPS ASSY(28) RUBBER MOUNT(29) COLLAR 4.2-6-10.5(30) SCREW(31) WASHER 4.2-12.5-0.8(32) HOSE(33) BAND 104(34) CLIP o7(35) GASKET(36) BOLT 6-25(37) TPS DECAL



Parts List
2012 :: 40 HP :: TLDI Tohatsu MD40B2 :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER ARM 3C8637111M 3C8637110M $15.46 1
(2) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 3
(3) THROTTLE LINK ROD 3T5637021M 3T5-63702-1 $6.21 1
(4) LINK ROD ASSY (TPS) 3T5101091M 3T5-10109-1 $3.97 1
(5) BOLT 9101030635M 910103-0635 $1.02 1
(6) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(7) COLLAR 6.2-12-17 3C8637320M 3C8-63732-0 $2.31 1
(8) CABLE JOINT 3B7837151M 3B7-83715-1 FOR P TYPE $4.83 1 Sold Out View More Details
(9) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR P TYPE $2.39 1
(10) SNAP PIN D=8 9516030800M 951603-0800 FOR P TYPE $0.70 1
(11) ARM THROTTLE LIMITER ARM 3C8052130M 3C8-05213-0 FOR F TYPE $4.19 1 Sold Out View More Details
(12) BOLT 9101F40625M 9101F4-0625 FOR F TYPE $1.04 1
(13) BOLT 9101030610M 910114-0610 FOR P TYPE $0.76 1
(14) WASHER 9401030600M 940103-0600 FOR F TYPE $0.70 2
(15) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR F TYPE $4.06 1
(16) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(17) THROTTLE LIMITER ROD 3.5-56 3C8052210M 3C8-05221-0 FOR F TYPE $2.31 1
(18) ROD SNAP 3.5-4 3C8052230M 3C8-05223-0 FOR F TYPE $1.41 2
(19) THROTTLE BODY ASSY 3GF101000M 3GF-10100-0 50PS & ITALY 40PS / MARK 3GF $177.96 1
(19) THROTTLE BODY ASSY 3GG101000M 3GG-10100-0 40PS EXCEPT ITALY / MARK 3GG $177.96 1
(20) THROTTLE CAM 3T5637180M 3T5-63718-0 $3.05 1 Sold Out View More Details
(21) BUSHING 6-24-7 3T5637210M 3T5-63721-0 $2.59 1
(22) BOLT 9101036618M 910103-6618 $0.79 1
(23) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(24) BALL JOINT B 346052281M 346-05228-0 $4.63 1
(25) NUT 9302030600M 930203-0600 $0.00 1 Sold Out View More Details
(26) WASHER 9401030600M 940103-0600 $0.70 1
(27) TPS 3T5101100M 3T5-10110-0 $286.24 1
(28) RUBBER MOUNT 3T5101070M 3T5-10107-0 $5.58 3
(29) COLLAR 4.2-6-10.5 3T5101280M 3T5-10128-0 $1.47 3
(30) SCREW 9215036420M 921503-6420 $0.92 3
(31) WASHER 4.2-12.5-0.8 3T5101290M 3T5-10129-0 $0.97 3
(32) HOSE 98AB30310M 98AB-30-310 98AB-301000 $10.72 1
(33) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(34) CLIP ø 7 338011330M 338-01133-0 $1.04 1
(35) THROTTLE BODY GASKET 3T5101040M 3T5-10104-0 $2.71 1
(36) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.79 2
(37) TPS DECAL 3T5721950M 3T5-72195-0 $1.20 1 Sold Out View More Details
