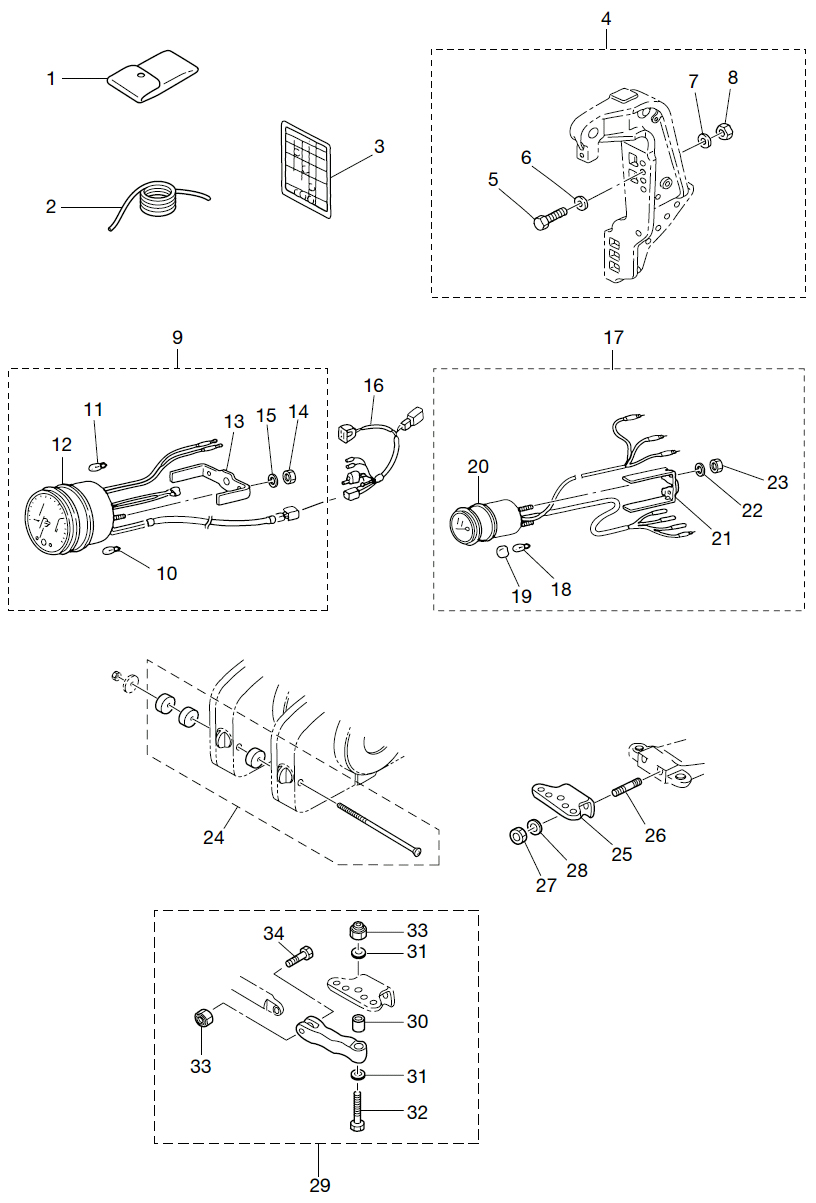

30. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) BUZZER CAUTION DECAL(4) RIGGING BOLT SET(5) BOLT 12-P1.25 L=105(6) WASHER 13-34-3(7) WASHER(8) NUT 12-P1.25(9) TACHOMETER TLDI (BLACK)(9) TACHOMETER TLDI (WHITE)(9) TACHOMETER W/OIL LAMP(10) OIL BULB 12V-1.7W(11) METER BULB 12V-1.8W(12) METER DAMPER(13) FITTING PLATE(14) NUT(15) SPRING WASHER(16) METER LEAD WIRE L=8000(17) TRIM METER (BLACK)(17) TRIM METER (WHITE)(17) TRIM METER ASSY(18) METER BULB 12V-1.7W(19) METER BULB CAP(20) METER DAMPER(21) FITTING PLATE(22) SPRING WASHER(23) NUT(24) TWIN REMOTE CONTROL KIT(25) STEERING HOOK(26) STUD(27) NYLON NUT 8-P1.25(28) WASHER(29) CLEVIS ASSY(30) COLLAR 9.6-13-20.5(31) WASHER 9.6-18-2(31) WASHER 9.6-18-2(32) BOLT 3/8-43(33) NYLON NUT 3/8-24UNF(33) NYLON NUT 3/8-24UNF(34) BOLT 3/8-35



Parts List
2012 :: 40 HP :: TLDI Nissan NSD40B2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(4) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(5) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(6) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(7) WASHER 9401031200M 940103-1200 $0.51 4
(8) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(9) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER 3Z5726401M 3Z5-72640-1 FOR P TYPE $0.00 1 Sold Out View More Details
(10) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 $3.27 3
(11) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(12) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(13) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(14) NUT 9302030500M 930203-0500 $0.60 2
(15) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(16) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 FOR P TYPE $201.55 1
(17) TRIM METER KIT 3GF725710M 3GF725710M 2-WIRE $98.67 1
(17) TRIM METER KIT 3GL725710M 3GL725710M 2-WIRE $98.67 1
(17) TRIM METER 3T1725710M 3F3-72574-1 FOR P TYPE $0.00 1 Sold Out View More Details
(18) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 $3.85 1 Sold Out View More Details
(19) METER BULB CAP 3T1726530M 3T1-72653-0 $2.40 1 Sold Out View More Details
(20) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(21) FITTING PLATE 3T1726650M 3T1-72665-0 $12.61 1 Sold Out View More Details
(22) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(23) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(24) TWIN REMOTE CONTROL BOX KIT 3A3813010M 3A3-81301-0 FOR P TYPE $52.86 1
(25) STEERING HOOK PLATE 3C8848300M 3C8-84830-0 FOR P TYPE $33.06 1
(26) STUD BOLT 9152030816M 915203-0816 FOR P TYPE $9.00 2
(27) NYLON NUT 8P-1.25 9304030800M 930446-0800 FOR P TYPE $1.99 2
(28) WASHER 9401030600M 940103-0600 FOR P TYPE $0.70 2
(29) CREVICE ASSY 3C8Q849600 3C8Q84960-0 FOR P TYPE $303.28 1
(30) COLLAR 9.6-13-20.5 3C8849620M 3C8-84962-0 $6.39 1
(31) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 2
(32) BOLT 3/8-43 3C8849630M 3C8-84963-0 $4.83 1
(33) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(34) BOLT 3/8-35 3C8849640M 3C8-84964-0 $18.38 1
