23. OPTIONAL PARTS & ACCESSORIES

Click Here for Microfiche Usage Tip

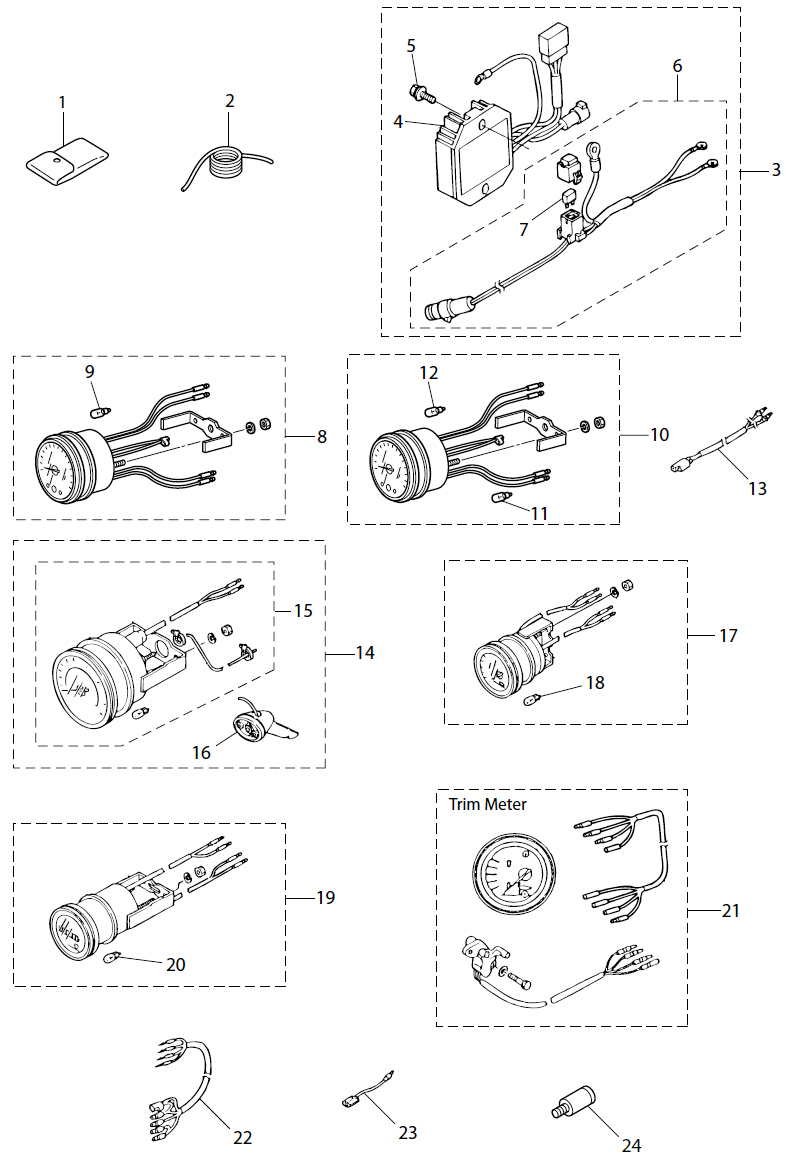

(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) RECTIFIER KIT(4) RECTIFIER COMPLETE(5) BOLT(6) EXTENSION CORD L=3000(7) FUSE 20A(8) TACHOMETER (BLACK)(8) TACHOMETER (WHITE)(8) TACHOMETER ASSY(9) METER BULB 12V-1.8W(10) TACHOMETER (BLACK)(10) TACHOMETER (WHITE)(10) TACHOMETER W/OIL LAMP(11) OIL BULB 12V-1.7W(12) METER BULB 12V-1.8W(13) TACHOMETER LEAD WIRE L=6000(14) SPEEDOMETER (BLACK)(14) SPEEDOMETER (WHITE)(14) SPEEDOMETER KIT (50MPH)(14) SPEEDOMETER KIT (75MPH)(15) SPEEDOMETER ASSY (50MPH)(15) SPEEDOMETER ASSY (75MPH)(16) SPEEDOMETER SENSOR(17) VOLTMETER (BLACK)(17) VOLTMETER (WHITE)(17) VOLTMETER ASSY(18) METER BULB 12V-1.7W(19) HOUR METER (BLACK)(19) HOUR METER (WHITE)(19) HOUR METER ASSY(20) METER BULB 12V-1.7W(21) TRIM METER KIT(22) METER LEAD WIRE L=2000(23) ASSIST CORD (BLU) L=200(23) ASSIST CORD (BLK) L=200(23) ASSIST CORD (RED) L=200(24) FLUSHING PLUG



Parts List
2012 :: 30 HP :: 4 Stroke Nissan NSF30B :: OPTIONAL PARTS & ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) RECTIFIER KIT 3AC761602M 3AC-76160-2 $191.46 1
(4) RECTIFIER COMPLETE 3AC760652M 3AC-76065-2 $127.36 1
(5) BOLT 9101035625M 910103-5625 RECTIFIER $1.47 2
(6) EXTENSION CORD L=3000 3AC761610M 3AC-76161-0 $70.66 1
(7) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(8) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(8) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(8) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 $0.00 1 Sold Out View More Details
(9) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(10) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(10) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(10) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 $0.00 1 Sold Out View More Details
(11) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 $3.27 1
(12) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(13) TACHOMETER LEAD CABLE 361725390M 361-72539-0 $50.65 1
(14) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(14) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(14) SPEEDOMETER 50MPH KIT 3E0725220M 3E0-72522-0 $0.00 1 Sold Out View More Details
(14) SPEEDOMETER 75MPH KIT 3E0726440M 3E0-72644-0 $0.00 1 Sold Out View More Details
(15) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 $0.00 1 Sold Out View More Details
(15) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 $0.00 1 Sold Out View More Details
(16) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 $52.86 1 Sold Out View More Details
(17) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(17) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(17) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(18) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(19) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(19) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(19) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(20) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(21) TRIM METER KIT 3R0725252M 3R0-72525-2 $0.00 1 Sold Out View More Details
(22) LEAD WIRE METER 3R0725371M 3R0-72537-1 $65.87 1
(23) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(23) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(23) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(24) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
