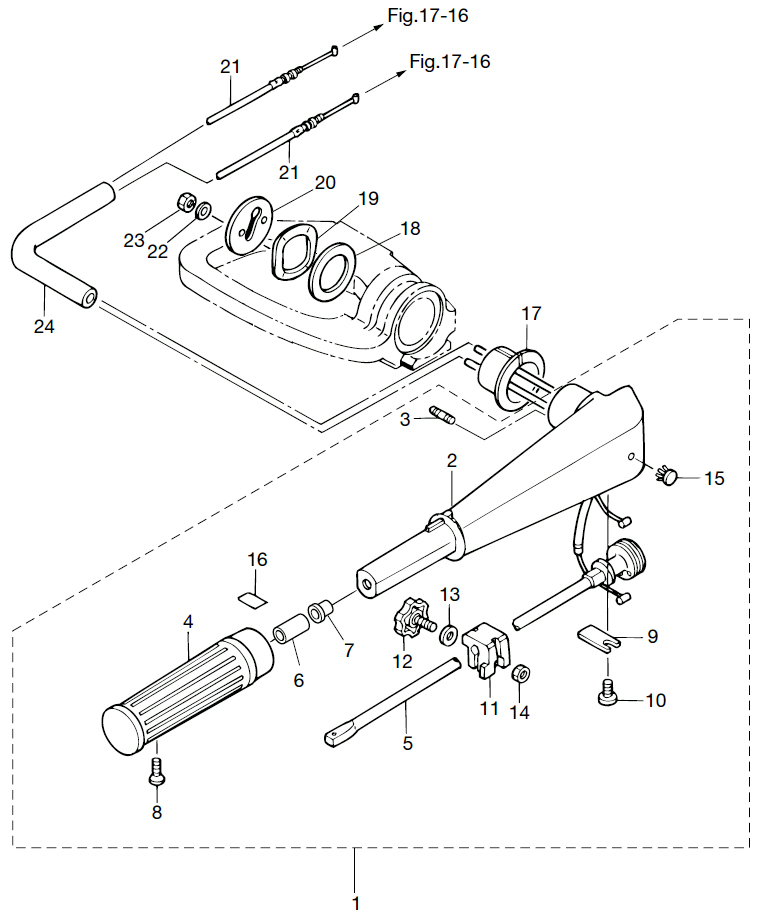

15. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE SUB-ASSY(2) TILLER HANDLE(3) STUD(4) GRIP(5) THROTTLE SHAFT(6) THROTTLE SHAFT DAMPER(7) BUSHING 8.4-10-11(8) SCREW(9) THROTTLE SHAFT SUPPORT(10) SCREW(11) FRICTION PIECE(12) ADJUSTING SCREW(13) WASHER(14) NUT(15) PLASTIC RIVET 6.5(16) THROTTLE DECAL(17) BUSHING(18) WASHER 39-52-1(19) WAVE WASHER(20) COVER(21) THROTTLE WIRE(21) THROTTLE WIRE(22) WASHER(23) NUT(24) PROTECTOR o12-250



Parts List
2012 :: 30 HP :: 4 Stroke Nissan NSF30B :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE SUB-ASSY 3ACQ630050 3ACQ63003-0 $96.55 1
(2) TILLER HANDLE 3R3Q630110 3R3Q63011-0 $47.36 1
(3) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(4) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(5) THROTTLE SHAFT 3R3630410M 3R3-63041-0 $12.36 1
(6) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(7) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(8) SCREW 9218030525M 921803-0525 $0.92 1
(9) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(10) SCREW 9215E30612M 9215E3-0612 $0.93 1
(11) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(12) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(13) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(14) NUT 9301E30600M 9301E3-0600 $0.52 1 Sold Out View More Details
(15) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(16) THROTTLE DECAL 3AC720190M 3AC-72019-0 $2.21 1
(17) BUSHING HANDLE 3R3631020M 3R3-63102-0 $1.22 1
(18) WASHER 39 - 52 -1 3R3631080M 3R3-63108-0 $1.27 1
(19) WAVE WASHER 39 - 52 -1.2 3R3631090M 3R3-63109-0 $5.64 1
(20) PLATE STEERING HANDLE 3R3631070M 3R3-63107-0 $3.37 1
(21) THROTTLE CABLE 3R0636000M 3R0-63600-0 $18.00 2
(22) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(23) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(24) PROTECTION TUBE 3R0061570M 3R0-06157-0 $2.58 1
