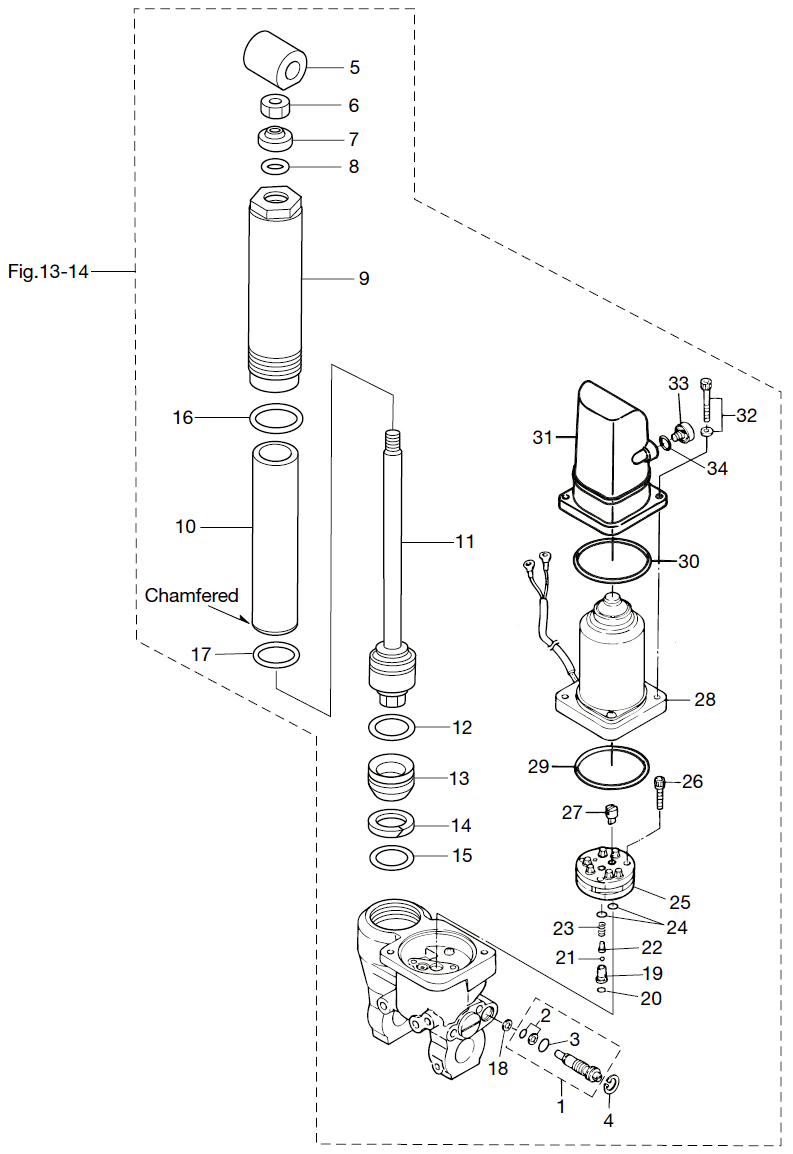

14. POWER TILT

Click Here for Microfiche Usage Tip
(1) MANUAL VALVE ASSY(2) SEAL SET(3) O-RING 2.4-9.8(4) C-RING(5) JOINT(6) NUT(7) DUST SEAL(8) O-RING 2.4-12.3(9) CYLINDER(10) INNER TUBE(11) PISTON ROD ASSY(12) O-RING 2-28.5(13) FREE PISTON(14) BACK-UP RING(15) O-RING 2.4-27.7(16) O-RING 2-43.5(17) O-RING 2-34.5(18) SEAL WASHER(19) VALVE SEAT(20) O-RING 1.5-3.5(21) BALL(22) SPRING SEAT(23) SPRING(24) O-RING 1.5-6.5(25) PUMP(26) BOLT(27) COUPLING(28) MOTOR ASSY(29) O-RING 2-62.5(30) O-RING 2.4-66.6(31) RESERVE TANK(32) BOLT(33) CAP(34) O-RING 1.9-9.8



Parts List
2012 :: 30 HP :: 4 Stroke Nissan NSF30B :: POWER TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MANUAL VALVE ASSY 3AC771750M 3AC-77175-0 $173.29 1
(2) SEAL SET 3R0774090M 3R0-77409-0 $8.91 1
(3) O-RING 2.4 - 9.8 3R0771770M 3R0-77177-0 $3.27 1
(4) C-RING 3Z5771710M 3Z5-77171-0 $3.77 1
(5) JOINT 3AD773670M 3AD-77367-0 $127.60 1
(6) NUT 3AC773740M 3AC-77374-0 $7.54 1
(7) DUST SEAL 3AC773820M 3AC-77382-0 $9.73 1
(8) O-RING 2.4-12.3 3AC773840M 3AC-77384-0 $4.69 1
(9) CYLINDER 3AC773610M 3AC-77361-0 $315.05 1
(10) INNER TUBE 3AC773630M 3AC-77363-0 $22.03 1
(11) PISTON ROD ASSY 3AC773650M 3AC-77365-0 $548.85 1
(12) O-RING 2-28.5 3AC773750M 3AC-77375-0 $4.69 1
(13) FREE PISTON 3AC773770M 3AC-77377-0 $48.82 1 Sold Out View More Details
(14) BACK-UP RING 3AC773760M 3AC-77376-0 $26.77 1
(15) O-RING 2.4-27.7 3AC773980M 3AC-77398-0 $6.28 1
(16) O-RING 2-43.5 3AC773920M 3AC-77392-0 $6.45 1
(17) O-RING 2-34.5 3AC773830M 3AC-77383-0 $6.28 1
(18) SEAL WASHER 3AC771730M 3AC-77173-0 $7.23 1 Sold Out View More Details
(19) VALVE SEAT 3AC774530M 3AC-77453-0 $61.42 1
(20) O-RING 1.5 - 3.5 3R0774510M 3R0-77451-0 $2.90 1
(21) BALL 3R0774570M 3R0-77457-0 $13.40 1
(22) SPRING SEAT 3AC774540M 3AC-77454-0 $14.95 1
(23) SPRING 3R0774550M 3R0-77455-0 $2.79 1
(24) O-RING 1.5 - 6.5 3B7774330M 3B7-77433-0 $3.57 2
(25) PUMP 3R0774300M 3R0-77430-0 $268.02 1
(26) BOLT 3B7774311M 3B7-77431-1 $3.59 3
(27) COUPLING PUMP 3E0771630M 3E0-77163-0 $10.27 1
(28) MOTOR ASSY 3AC771800M 3AC-77180-0 $661.60 1
(29) O-RING 2 – 62.5 3R0771670M 3R0-77167-0 $8.20 1 Sold Out View More Details
(30) O-RING 2.4 – 66.6 3C8771820M 3C8-77182-0 $9.00 1
(31) RESERVOIR TANK 3R0771650M 3R0-77165-0 $113.03 1
(32) BOLT 3R0771590M 3R0-77159-0 $6.22 2
(33) CAP ASSY 3R0771680M 3R0-77168-0 $20.52 1
(34) O-RING 1.9 – 9.8 3R0771690M 3R0-77169-0 $3.17 1
