9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip

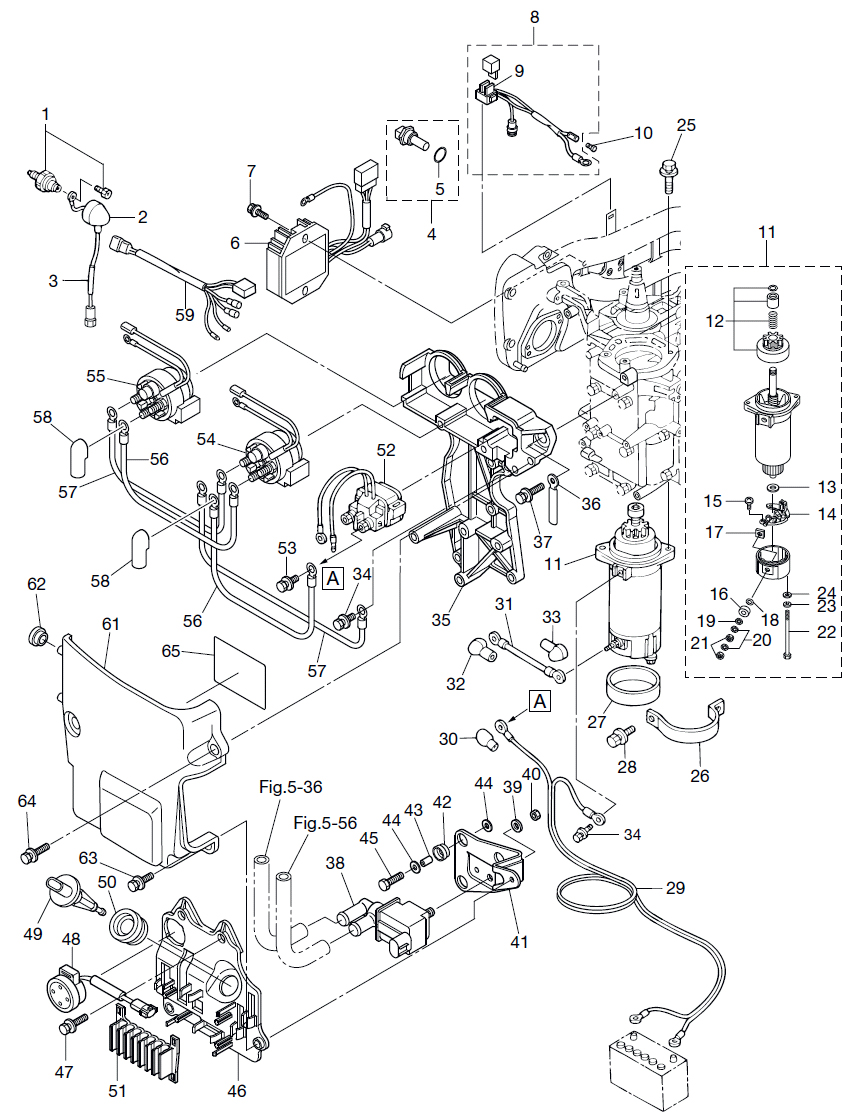

(1) OIL PRESSURE SWITCH(2) GROMMET(3) OIL PRESSURE SWITCH LEAD WIRE L=160(4) WATER TEMPERATURE SENSOR(5) O-RING 2-10(6) RECTIFIER COMPLETE(7) BOLT(8) FUSE WIRE ASSY(9) FUSE 20A(10) CABLE TERMINAL PLUG(11) STARTER MOTOR ASSY(11) STARTER MOTOR ASSY(12) PINION ASSY(13) WASHER(14) BRUSH HOLDER ASSY(15) SCREW(16) BUSHING(17) BUSHING(18) O-RING(19) WASHER(20) SPRING WASHER(21) NUT(22) BOLT(23) SPRING WASHER(24) WASHER(25) BOLT(26) STARTER MOTOR BAND(27) DAMPER(28) BOLT(29) BATTERY CABLE L=2500(30) TERMINAL CAP(31) STARTER CABLE L=270(32) TERMINAL CAP(33) TERMINAL CAP(34) BOLT(34) BOLT(35) BRACKET(36) CLAMP 6.5-47.5P(37) BOLT(38) ISC VALVE(39) WASHER(40) NUT(41) PLATE(42) RUBBER MOUNT(43) COLLAR 6.2-9-7.4(44) WASHER 6-16-1.5(44) WASHER 6-16-1.5(45) BOLT(46) CORD HOLDER(47) BOLT(48) OVERHEAT BUZZER(49) MAT SENSOR(50) GROMMET(51) HOLDER(52) STARTER SOLENOID(53) BOLT(54) PTT SOLENOID SWITCH (A)(55) PTT SOLENOID SWITCH (B)(56) SOLENOID SWITCH CORD (B) L=150(56) SOLENOID SWITCH CORD (B) L=150(57) SOLENOID SWITCH CORD (B) L=150(57) SOLENOID SWITCH CORD (B) L=150(58) TERMINAL CAP(58) TERMINAL CAP(59) EXTENSION CORD (PTT)(61) COVER ASSY(62) GROMMET(63) BOLT(64) BOLT(65) WIRING DIAGRAM DECAL



Parts List
2012 :: 30 HP :: 4 Stroke Nissan NSF30B :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(2) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(3) OIL PRESSURE SWITCH LEAD WIRE L=160 3AC076130M 3AC-07613-0 $12.52 1
(4) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 $26.18 1
(5) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(6) RECTIFIER COMPLETE 3AC760652M 3AC-76065-2 FOR ELECTRIC STARTER MODEL $127.36 1
(7) BOLT 9101035625M 910103-5625 FOR ELECTRIC STARTER MODEL $1.47 2
(8) FUSE WIRE ASSY 3AC760660M 3AC-76066-0 FOR ELECTRIC STARTER MODEL $53.60 1
(9) FUSE (20A) 3T5762470M 3T5-76247-0 FOR ELECTRIC STARTER MODEL $2.99 2
(10) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR ELECTRIC STARTER MODEL $1.50 1
(11) STARTER MOTOR 3C8760101M 3C8-76010-1 FOR ELECTRIC STARTER MODEL $491.52 1 Sold Out View More Details
(12) PINION ASSY 3C8760150M 3C8-76015-0 FOR ELECTRIC STARTER MODEL $167.77 1
(13) WASHER 3C8750150M 3C8-75015-0 FOR ELECTRIC STARTER MODEL $5.69 1
(14) BRUSH HOLDER ASSY 3C8750140M 3C8-75014-0 FOR ELECTRIC STARTER MODEL $59.83 1
(15) SCREW 9215216408M 921521-6408 FOR ELECTRIC STARTER MODEL $0.63 2
(16) BUSHING 1 3C8750160M 3C8-75016-0 FOR ELECTRIC STARTER MODEL $3.39 1
(17) BUSHING 2 3C8750170M 3C8-75017-0 FOR ELECTRIC STARTER MODEL $3.39 1
(18) O-RING 3C8750180M 3C8-75018-0 FOR ELECTRIC STARTER MODEL $1.21 1
(19) WASHER 9401030600M 940103-0600 FOR ELECTRIC STARTER MODEL $0.70 1
(20) SPRING WASHER 9413030600M 941303-0600 FOR ELECTRIC STARTER MODEL $0.84 2
(21) NUT 9302030600M 930203-0600 FOR ELECTRIC STARTER MODEL $0.00 2 Sold Out View More Details
(22) BOLT 3C8750190M 3C8-75019-0 FOR ELECTRIC STARTER MODEL $8.97 2
(23) SPRING WASHER 9413210500M 941321-0500 FOR ELECTRIC STARTER MODEL $0.00 2 Sold Out View More Details
(24) WASHER 9402210500M 940221-0500 FOR ELECTRIC STARTER MODEL $0.00 2 Sold Out View More Details
(25) BOLT 9101035830M 9101E3-5830 FOR ELECTRIC STARTER MODEL $1.89 2
(26) BAND STARTER MOTOR 3R0760090M 3R0-76009-0 FOR ELECTRIC STARTER MODEL $5.32 1
(27) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 FOR ELECTRIC STARTER MODEL $3.39 1 Sold Out View More Details
(28) BOLT 9101E35820M 9101E3-5820 FOR ELECTRIC STARTER MODEL $1.71 2 Sold Out View More Details
(29) BATTERY CABLE L=2500 3AC761200M 3AC-76120-0 FOR ELECTRIC STARTER MODEL $65.41 1
(30) TERMINAL CAP 3AA761450M 3AA-76145-0 RED BATTERY CABLE / FOR ELECTRIC STARTER MODEL $2.25 1
(31) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 FOR ELECTRIC STARTER MODEL $24.89 1
(32) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED STARTER SOLENOID / FOR ELECTRIC STARTER MODEL $2.25 1
(33) TERMINAL CAP 3Y0761450M 3Y0-76145-0 RED STARTER MOTOR / FOR ELECTRIC STARTER MODEL $2.25 1
(34) BOLT 9101035612M 910103-5612 FOR ELECTRIC STARTER MODEL $1.07 2
(35) BRACKET 3AC069010M 3AC-06901-0 $0.00 1 Sold Out View More Details
(36) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(37) BOLT 9101035625M 910103-5625 $1.47 5
(38) ISC VALVE 3AC102110M 3AC-10211-0 $105.98 1
(39) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(40) NUT 9301E30600M 9301E3-0600 $0.52 1 Sold Out View More Details
(41) PLATE 3AC025010M 3AC-02501-0 $14.73 1 Sold Out View More Details
(42) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 3
(43) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(44) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 6 Sold Out View More Details
(45) BOLT 9101E30620M 9101E3-0620 $1.04 3
(46) CORD HOLDER 3AC620040M 3AC-62004-0 $0.00 1 Sold Out View More Details
(47) BOLT 9101035625M 910103-5625 $1.47 3
(48) OVERHEAT BUZZER 3AC761710M 3AC-76171-0 FOR MF/EF $36.78 1
(49) MAT SENSOR 3AC102150M 3AC-10215-0 $23.56 1
(50) MAT SENSOR GROMMET 3AC043190M 3AC-04319-0 $3.71 1
(51) HOLDER 3AC061350M 3AC-06135-0 $5.29 1 Sold Out View More Details
(52) STARTER SOLENOID 3H8760400M 3H8-76040-0 FOR ELECTRIC STARTER MODEL $67.57 1
(53) BOLT 9101035610M 910103-5610 FOR ELECTRIC STARTER MODEL $1.02 2
(54) PTT SOLENOID SWITCH A 3AC725800M 3AC-72580-0 UP / FOR PTT MODEL $72.11 1
(55) PTT SOLENOID SWITCH B 3AC725810M 3AC-72581-0 DN / FOR PTT MODEL $72.11 1
(56) CORD B SOLENOID SWITCH 3C7725830M 3C7-72583-0 RED (+) / FOR PTT MODEL $5.07 2
(57) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 BLACK (-) / FOR PTT MODEL $4.83 2
(58) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED STARTER SOLENOID / FOR PTT MODEL $2.25 2
(59) EXTENSION CORD (PTT) 3AC725690M 3AC-72569-0 FOR PTT MODEL $82.44 1
(61) COVER ASSY 3AC069190M 3AC-06919-0 $30.92 1
(62) GROMMET LOWER WATER PIPE 309650320M 309-65032-0 $1.76 2
(63) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 1
(64) BOLT 9101E35620M 910113-5620 $1.30 1
(65) WIRING DIAGRAM DECAL 3AC720280M 3AC-72028-0 $2.91 1
