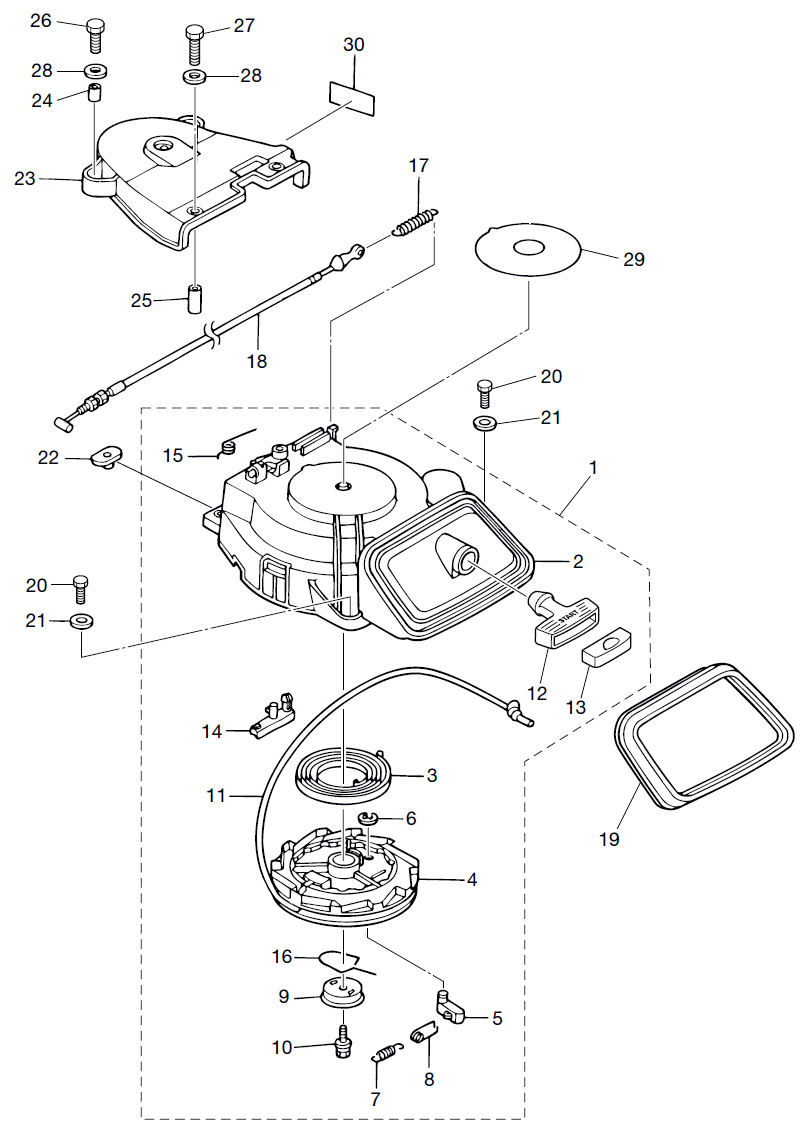

7. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER ASSY(2) STARTER CASE(3) STARTER SPRING(4) REEL(5) RATCHET(6) E-RING D=10(7) RETURN SPRING(8) RETURN SPRING(9) FRICTION PLATE(10) BOLT(11) STARTER ROPE o5-1800(12) STARTER HANDLE(13) ROPE ANCHOR(14) STARTER LOCK(15) STARTER LOCK SPRING(16) FRICTION SPRING(17) STARTER LOCK CAM SPRING(18) STARTER LOCK WIRE(19) STARTER SEAL(20) PRE-COATED BOLT 6-20(20) PRE-COATED BOLT 6-20(21) WASHER 6-16-1.5(21) WASHER 6-16-1.5(22) NUT(23) BELT COVER(24) COLLAR 6.2-9-7.4(25) COLLAR 6.2-9-12.3(26) BOLT(27) BOLT(28) WASHER 6-16-1.5(28) WASHER 6-16-1.5(29) CAUTION DECAL (B)(30) SPARK PLUG DECAL



Parts List
2012 :: 30 HP :: 4 Stroke Nissan NSF30B :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER ASSY 3AC050900M 3AC-05090-0 $293.08 1
(2) STARTER CASE 3AC051050M 3AC-05105-0 $88.33 1
(3) STARTER SPRING 3H8050040M 3H8-05004-0 $18.50 1
(4) REEL 3R3051060M 3R3-05106-0 $25.26 1
(5) RATCHET 3R3050030M 3R3-05003-0 $4.33 1
(6) E-RING D=10 3R3050110M 3R3-05011-0 $1.27 1
(7) RETURN SPRING 3R3050120M 3R3-05012-0 $4.31 1
(8) RATCHET GUIDE 3H8051231M 3H8-05123-1 $4.08 1 Sold Out View More Details
(9) FRICTION PLATE 3R3050060M 3R3-05006-0 $4.81 1
(10) BOLT STARTER SHAFT 3R3051380M 3R3-05138-0 $1.38 1
(11) STARTER ROPE 3R3050130M 3R3-05013-0 $9.25 1
(12) STARTER HANDLE 3AC050190M 3AC-05019-0 $9.09 1
(13) CAP STARTER HANDLE 3R3051310M 3R3-05131-0 $3.04 1
(14) STARTER LOCK 3R3052520M 3R3-05252-0 $4.03 1
(15) SPRING 3R3052160M 3R3-05216-0 $2.72 1
(16) FRICTION SPRING 3R3050070M 3R3-05007-0 $6.72 1
(17) STARTER LOCK CAM SPRING 3AC052580M 3AC-05258-0 $5.44 1
(18) STARTER LOCK WIRE 3AC052070M 3AC-05207-0 $28.78 1
(19) STARTER SEAL 3BJ675031M 3R3-67503-0 $14.08 1
(20) PRE-COATED BOLT 6-20 3AL601080M 3AL-60108-0 $1.68 3
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 3 Sold Out View More Details
(22) NUT 3F3760422M 3F3-76042-1 $1.66 2 Sold Out View More Details
(23) BELT COVER 3R3063080M 3R3-06308-0 $8.66 1
(24) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(25) COLLAR 6.2-9-12.3 3R0063031M 3R0-06303-1 $2.40 2
(26) BOLT 9101E30620M 9101E3-0620 $1.04 2
(27) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 2
(28) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(29) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(30) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 DCPR6E $3.04 1
