12. BRACKET (MANUAL TILT)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (R)(2) CLAMP BRACKET (L)(3) ANODE(4) BOLT(5) CO-PILOT DECAL(6) SWIVEL BRACKET SHAFT ASSY(7) CAP NUT(7) CAP NUT(8) BUSHING 26-32(8) BUSHING 26-32(9) NYLON NUT 7/8(10) DISTANCE PIECE(11) NUT(11) NUT(12) WASHER(12) WASHER(12) WASHER(12) WASHER(13) THRUST ROD(14) THRUST ROD SPRING(15) SWIVEL BRACKET(16) GREASE FITTING(16) GREASE FITTING(17) GROUND L=210(18) GROUND L=130(19) BOLT(19) BOLT(20) FRICTION LEVER ASSY(21) GRIP(22) STOPPER(23) WASHER 8.1-20-0.8(24) BOLT(25) WASHER(26) DISC(26) DISC(27) NYLON NUT 8-P1.25(28) WASHER(29) STEERING SHAFT ASSY(30) PLATE(31) BOLT(32) COLLAR(33) BUSHING 30-36-41(33) BUSHING 30-36-41(34) THRUST PLATE (UPPER)(34) THRUST PLATE (UPPER)(35) O-RING 3.5-29.7(36) C-RING D=28(37) MOUNT BRACKET(38) DAMPER (LOWER)(39) RUBBER MOUNT (LOWER)(40) BOLT(41) WASHER 13-34-3(42) DAMPER 21-36-5(43) NYLON NUT 12P-1.25(44) WASHER(44) WASHER(45) MOUNT HOLDING PLATE (LOWER)(46) BOLT(47) GROUND L=110(48) BOLT(49) RUBBER MOUNT (UPPER)(50) BOLT(51) NUT 10-P1.5(52) DAMPER (UPPER)(53) DAMPER (UPPER)(54) LOCK PLATE(55) WASHER(56) LOCK PLATE(57) RUBBER MOUNT RETAINER(58) BOLT(59) TILT STOPPER(60) SPRING PIN(61) BUSHING 10.2-12-29.5(62) SETTING PLATE(63) BOLT(64) FRICTION SPRING(65) SETTING PIECE(66) REVERSE LOCK(67) REVERSE LOCK ARM(68) PIVOT BOLT(69) WASHER 6-16-1.5(70) REVERSE LOCK ROD(71) SPLIT PIN 2-12(72) REVERSE LOCK LEVER(73) REVERSE LOCK LEVER GRIP(74) STOPPER(75) SHOULDER BOLT 6-8(76) WASHER(77) BUSHING 8.1-20(78) WASHER 8.5-18-1.6(79) WASHER 6-16-1.5(80) REVERSE LOCK LINK(81) REVERSE LOCK LEVER SPRING(82) REVERSE LOCK SPRING (L)(82) REVERSE LOCK SPRING (S)(83) STEERING BRACKET(84) BOLT(85) WASHER(86) CLAMP(87) RIGGING BOLT SET(88) BOLT(89) WASHER(89) WASHER(90) NUT(91) CLAMP SCREW KIT(92) CLAMP SCREW ASSY(93) CLAMP SCREW(94) CLAMP SCREW HANDLE(95) RIVET 3-22(96) CLAMP SCREW PAD(97) SHOULDER BOLT



Parts List

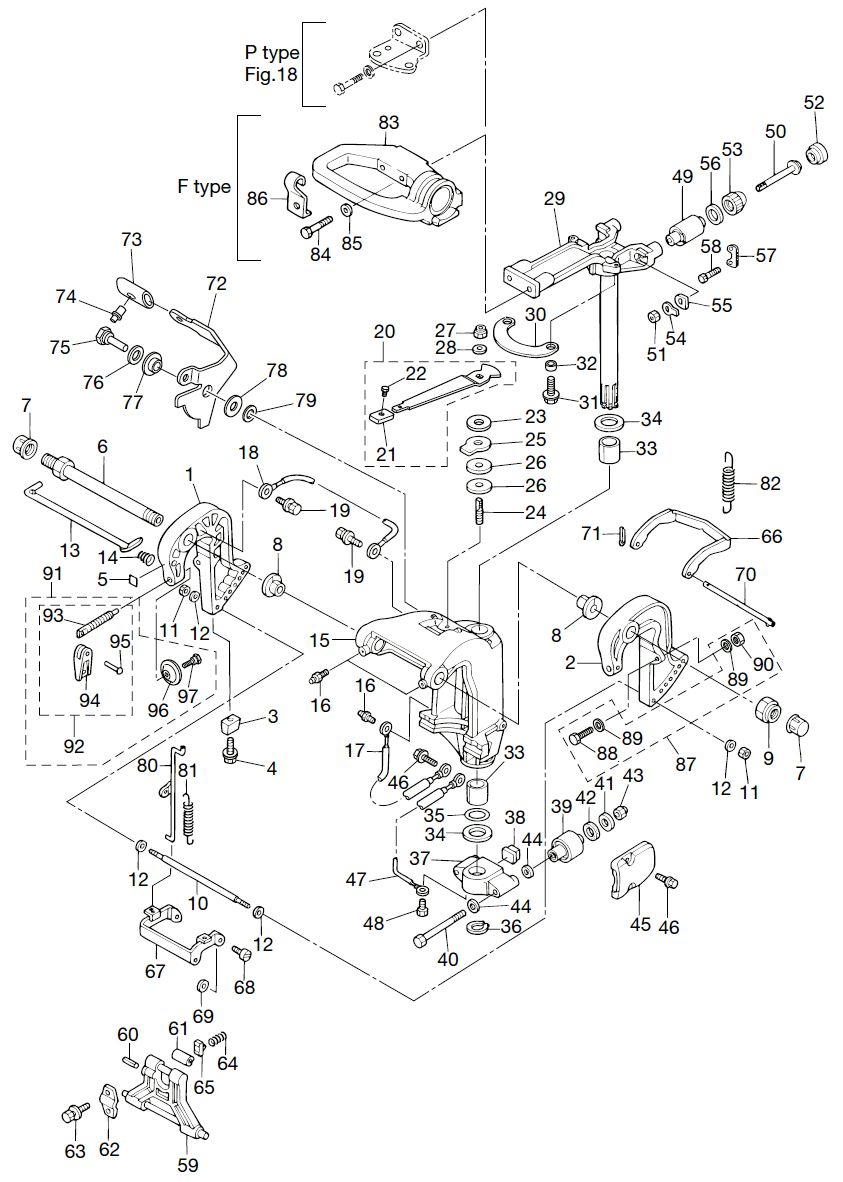

2012 :: 25 HP :: 4 Stroke Nissan NSF25B :: BRACKET (MANUAL TILT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (R) 3AEQ621122 3AEQ62112-2 STARBOARD SIDE $90.72 1
(2) CLAMP BRACKET (L) 3AEQ621132 3AEQ62113-2 PORT SIDE $90.72 1
(3) ANODE 3B7602181M 3B7-60218-1 $14.17 1
(4) BOLT 9101035630M 910113-5630 $1.22 1 Sold Out View More Details
(5) LABEL CO-PILOT 3H8720490M 3H8-72049-0 FOR MF/EF $2.48 1
(6) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 $44.07 1
(7) CAP BRACKET BOLT 346621270M 346-62127-0 FOR MF/EF $2.48 2 Sold Out View More Details
(8) BUSHING BRACKET BOLT 349621260M 349-62126-0 $5.16 2
(9) NYLON NUT 7/8 346621241M 346-62124-0 $22.63 1
(10) DISTANCE PIECE 346621171M 346-62117-1 $17.80 1
(11) NUT 9301E30600M 9301E3-0600 $0.55 2
(12) WASHER 9401E30600M 9401E3-0600 $0.00 4 Sold Out View More Details
(13) THRUST ROD 345621211M 345-62121-1 $20.89 1
(14) SPRING THRUST ROD 345621222M 345-62122-2 $2.35 1 Sold Out View More Details
(15) SWIVEL BRACKET 3AEQ623102 3AEQ62310-2 $274.08 1 Sold Out View More Details
(16) GREASE FITTING 344671771M 344-67177-0 $2.74 3
(17) GROUND CABLE 3C8623961M 3C8-62396-0 SWIVEL BRACKET-MOUNT HOLDING PLATE $4.89 1
(18) GROUND CABLE 398623961M 398-62396-1 CLAMP BRACKET-SWIVEL BRACKET $6.15 1
(19) BOLT 9101035612M 910103-5612 $1.15 2 Sold Out View More Details
(20) FRICTION LEVER ASSY 3AC624500M 3AC-62450-0 FOR MF/EF $14.27 1
(21) GRIP 3AC630120M 3AC-63012-0 FOR MF/EF $7.54 1
(22) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR MF/EF $1.36 1
(23) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR MF/EF $1.59 1
(24) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR MF/EF $7.22 1
(25) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR MF/EF $5.99 1
(26) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR MF/EF $8.46 2
(27) NYLON NUT 8P-1.25 9304030800M 930446-0800 FOR MF/EF $2.13 1
(28) WASHER 9401E30800M 9401E3-0800 FOR MF/EF $0.70 1
(29) STEERING SHAFT ASSY 3R0Q620101 3R0Q62010-0 $290.89 1
(30) PLATE 3AC624470M 3AC-62447-0 FOR MF/EF $5.82 1
(31) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR MF/EF $1.22 2
(32) COLLAR 6.5-10.7-6.5 3AC636190M 3AC-63619-0 FOR MF/EF $2.94 2
(33) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $6.39 2 Sold Out View More Details
(34) THRUST PLATE 353624231M 353624230M $4.20 2
(35) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.71 1
(36) C-RING D=28 9451032800M 945103-2800 $1.13 1
(37) MOUNT BRACKET 3AEQ614111 3AEQ61411-1 $132.32 1
(38) DAMPER RUBBER 3C8613360M 3C8-61336-0 $6.08 1
(39) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $49.27 2
(40) BOLT LOWER MOUNT RUBBER 3R0613210M 3R0-61321-0 $18.11 2
(41) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 2
(42) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(43) NYLON NUT 12 P1.25 3R0613240M 3R0-61324-0 $6.93 2 Sold Out View More Details
(44) WASHER 9402E31200M 940203-1200 $2.25 4
(45) MOUNT HOLDING PLATE (LOWER) 3R0Q613420 3R0Q61342-0 RUBBER MOUNT CAP $30.48 2 Sold Out View More Details
(46) BOLT 9101E35620M 910113-5620 $1.39 4
(47) GROUNG CABLE 3A3623961M 3A3-62396-0 MOUNT HOLDING PLATE-MOUNT BRACKET $19.09 1
(48) BOLT 9101035612M 910103-5612 $1.15 1 Sold Out View More Details
(49) RUBBER MOUNT (UPPER) 3R0613011M 3R0-61301-0 $28.39 2
(50) BOLT MOUNT RUBBER 3R0613070M 3R0-61307-0 $11.39 2
(51) NUT 9301031000M 930103-1000 $1.70 2 Sold Out View More Details
(52) UPPER DAMPER RUBBER A 3R0613330M 3R0-61333-0 $1.73 2 Sold Out View More Details
(53) UPPER DAMPER RUBBER B 3R0613371M 3R0-61337-1 $1.84 2
(54) LOCK PLATE MOUNT RUBBER 3R0613230M 3R0-61323-0 $2.07 2
(55) WASHER 345613222M 345-61322-2 $1.98 2
(56) UPPER LOCK PLATE 3R0613350M 3R0-61335-0 $2.07 2
(57) RETAINER MOUNT RUBBER 3R0613121M 3R0-61312-1 $1.84 2
(58) BOLT 9101E30620M 9101E3-0620 $1.11 4 Sold Out View More Details
(59) TILT STOPPER 349Q629932 349Q62993-2 $44.07 1
(60) SPRING PIN 6 - 40 9514030640M 951403-0640 $1.15 1
(61) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.98 1
(62) SETTING PLATE 3AC624390M 3AC-62439-0 $7.13 1
(63) BOLT 3AC632010M 3AC-63201-0 $4.12 2
(64) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.59 1
(65) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.50 1
(66) REVERSE LOCK 346663220M 346-66322-0 $49.27 1
(67) ARM REVERSE LOCK 349663130M 349-66313-0 $36.94 1
(68) SHAFT REVERSE LOCK ARM 336663191M 336-66319-1 $1.79 2
(69) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 2
(70) ROD REVERSE LOCK 346663210M 346-66321-0 $5.43 1
(71) SPLIT PIN 2-12 9515030212M 951503-0212 $1.02 1
(72) REVERSE LOCK LEVER 3P0663110M 3P0-66311-0 $18.66 1
(73) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 $3.87 1
(74) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.36 1
(75) SHOULDER BOLT 6-8 3AL052540M 3AL-05254-0 $10.73 1
(76) WASHER 9401030800M 940113-0800 $0.90 1
(77) BUSHING 8.1-20 3AL052120M 3AL-05212-0 $1.75 1
(78) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.56 1
(79) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 1
(80) LINK REVERSE LOCK 349663120M 349-66312-0 $10.12 1
(81) SPRING REVERSE LOCK LEVER 346663231M 346-66323-1 $2.35 1
(82) SPRINGL REVERSE LOCK 3R0663320M 3R0-66332-0 FOR TRANSOM L $10.12 1
(82) SPRINGS REVERSE LOCK 346663310M 346-66331-0 FOR TRANSOM S $9.12 1
(83) STEERING BRACKET 3R3Q620010 3R3Q62001-0 FOR MF/EF $75.16 1
(84) BOLT 10-80 3R3620942M 3R3-62094-2 FOR MF/EF $7.31 2
(85) WASHER 9401E31000M 940113-1000 FOR MF/EF $1.61 2
(86) CLAMP THROTTLE CABLE 3R0636280M 3R0-63628-0 FOR MF/EF $2.76 1
(87) RIGGING BOLT SET 3AC721200M 3AC-72120-0 $10.77 1
(88) BOLT 9161E30885M 916113-0885 $3.74 2 Sold Out View More Details
(89) WASHER 9401E30800M 9401E3-0800 $0.70 4
(90) NUT 9301E30800M 9301E3-0800 $2.13 2
(91) CLAMP SCREW KIT 3AAQ621050 3AAQ62105-0 $28.09 2 Sold Out View More Details
(92) CLAMP SCREW ASSY 3AAQ621080 3AAQ62108-0 $57.27 1
(93) CLAMP SCREW 3AA621060M 3AA-62106-0 $22.60 1
(94) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $8.11 1
(95) RIVET 3-22 3C8621042M 3C8-62104-2 $0.98 1
(96) CLAMP SCREW PAD 332621011M 332-62101-1 $4.61 1 Sold Out View More Details
(97) SHOULDER BOLT 3C8621070M 3C8-62107-0 $9.18 1 Sold Out View More Details
