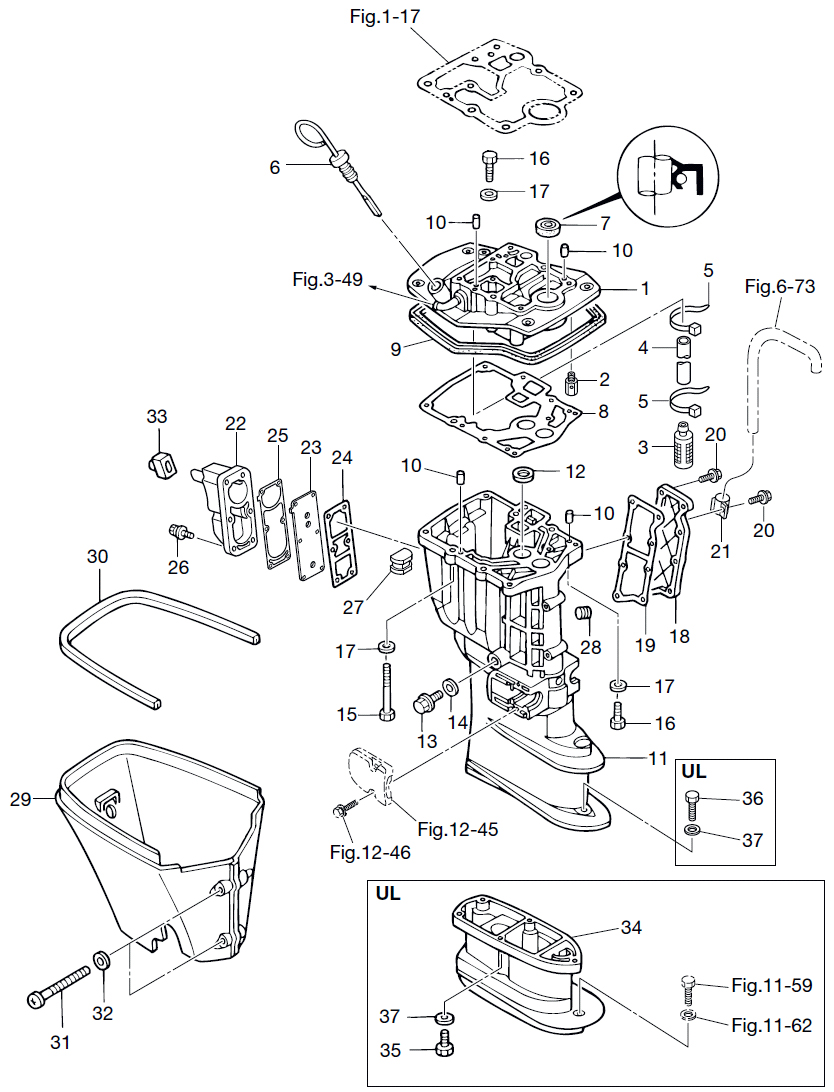

10. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) ENGINE BASEMENT ASSY(2) PLUNGER ASSY(3) OIL STRAINER ASSY(4) HOSE(5) BAND 158(5) BAND 158(6) OIL LEVEL GAUGE(7) OIL SEAL 16-28-6(8) DRIVE SHAFT HOUSING GASKET(9) ENGINE BASEMENT SEAL(10) DOWEL PIN 6-12(10) DOWEL PIN 6-12(10) DOWEL PIN 6-12(10) DOWEL PIN 6-12(11) DRIVE SHAFT HOUSING (S)(11) DRIVE SHAFT HOUSING (L)(12) WATER PIPE STOPPER(13) DRAIN BOLT(14) WASHER(15) BOLT 8-105(16) BOLT 8-40(16) BOLT 8-40(17) WASHER(17) WASHER(17) WASHER(18) COVER(19) GASKET(20) BOLT(20) BOLT(21) CLAMP 6.5-14L(22) IDLE EXHAUST PORT COVER(23) PLATE(24) IDLE EXHAUST PORT GASKET(25) IDLE EXHAUST PORT GASKET(26) BOLT(27) GROMMET(28) EXHAUST PLUG(29) APRON(30) SEAL(31) TAPPING SCREW(32) WASHER(33) GROMMET(34) EXTENSION HOUSING(35) BOLT(36) BOLT(37) WASHER 8.1-16-1.5(37) WASHER 8.1-16-1.5



Parts List
2012 :: 25 HP :: 4 Stroke Nissan NSF25B :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE BASEMENT ASSY 3ACQ013000 3ACQ01300-0 NIPPLE $249.38 1 Sold Out View More Details
(2) PLUNGER 3V2076200M 3V1-07620-0 $26.96 1
(3) OIL STRAINER 3R3077101M 3R3-07410-0 $7.36 1
(4) HOSE 98AH95220M 98AH-95-220 ENGINE BASE-OIL STRAINER / 98AH-951000 $65.61 1
(5) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(6) OIL LEVEL GAUGE 3AC074210M 3AC-07421-0 $17.65 1
(7) OIL SEAL 16 - 28 - 6 346012150M 346-01215-0 $4.40 1
(8) GASKET DRIVE SHAFT HOUSING 3R0610120M 3R0-61012-0 $38.76 1
(9) SEAL RUBBER ENGINE BASE 3R0671160M 3R0-67116-0 $7.43 1
(10) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(11) DRIVE SHAFT HOUSING (S) 3AEQ611911 3AEQ61191-1 FOR TRANSOM S $494.88 1
(11) DRIVE SHAFT HOUSING (L) 3AEQ611921 3AEQ61192-1 FOR TRANSOM L & UL $530.01 1
(12) PLATE WATER PIPE 3R0652070M 3R0-65207-0 $1.75 1
(13) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(14) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(15) BOLT 8-105 3B7610173M 3B7-61017-2 $4.83 6
(16) BOLT 8-40 3R0610171M 3R0-61017-1 $1.62 3
(17) WASHER 9401E30800M 9401E3-0800 $0.65 9
(18) COVER 3R0Q610280 3R0Q61028-0 $0.00 1 Sold Out View More Details
(19) GASKET DRAIN COVER 3R0610290M 3R0-61029-0 $4.29 1
(20) BOLT 9101E35618M 9101E3-5618 $0.93 8 Sold Out View More Details
(21) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(22) IDLE EXHAUST PORT COVER 3ACQ612080 3ACQ61208-0 $44.14 1 Sold Out View More Details
(23) PLATE 3AC621140M 3AC-62114-0 $4.38 1
(24) GASKET IDLE PORT 3R0612070M 3R0-61207-0 INSIDE $4.03 1
(25) IDLE EXHAUST PORT GASKET 3AC612201M 3AC-61220-1 OUTSIDE $4.38 1
(26) BOLT 9101E35620M 910113-5620 $1.30 6
(27) GROMMET 3AC611820M 3AC-61182-0 $1.67 1
(28) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(29) APRON 3R0Q612100 3R0Q61210-0 $95.97 1
(30) SEAL RUBBER APRON 3R0612130M 3R0-61213-0 $3.87 1
(31) TAPPING SCREW 3AC612170M 3AC-61217-0 $1.82 2
(32) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(33) GROMMET APRON 3R0612120M 3R0-61212-0 $2.05 1
(34) EXTENSION HOUSING 346Q611105 346Q61110-5 FOR TRANSOM UL $219.54 1
(35) BOLT 9161E30835M 916113-0835 FOR TRANSOM UL $2.01 4
(36) BOLT 9161E30845M 9161E3-0845 FOR TRANSOM UL $2.35 1
(37) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 FOR TRANSOM UL $1.29 5
