13. POWER TILT

Click Here for Microfiche Usage Tip

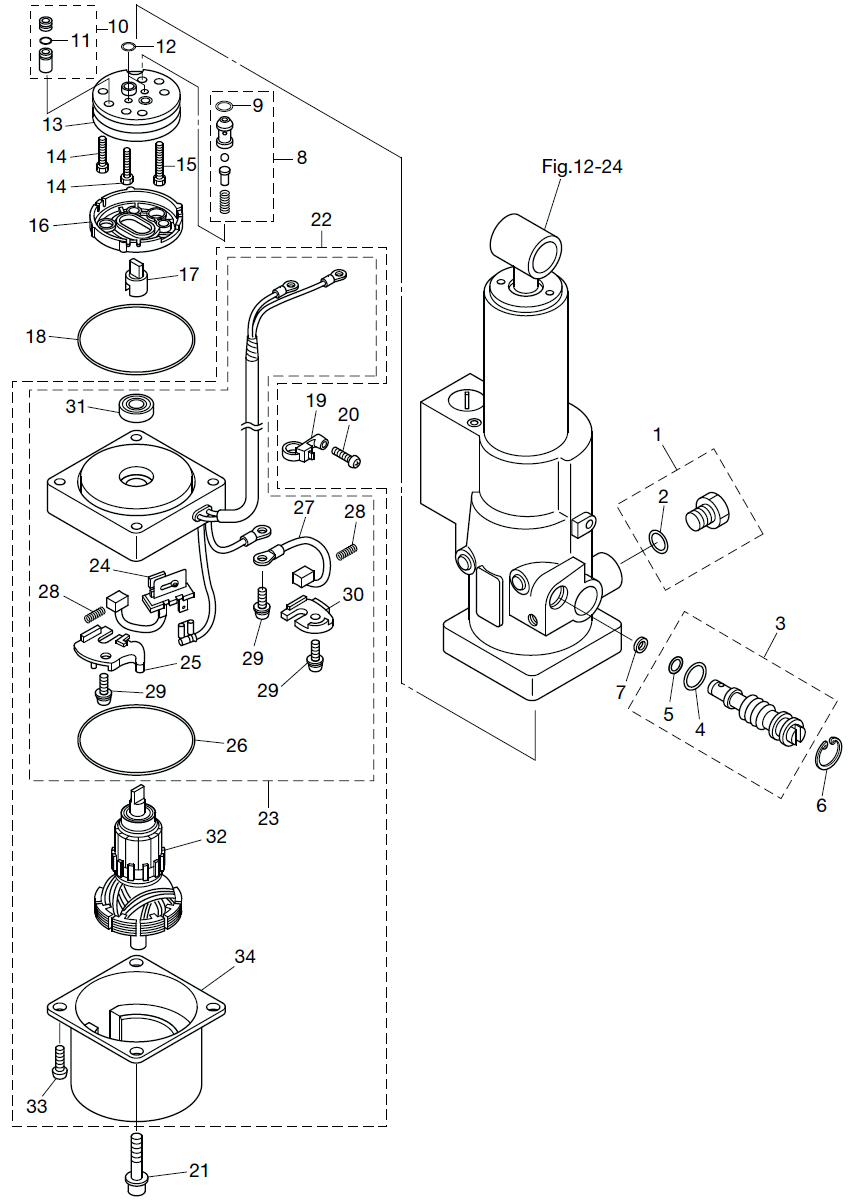

(1) CAP ASSY(2) O-RING(3) MANUAL VALVE ASSY(4) O-RING 2.4-9.8(5) O-RING(6) C-RING(7) SEAL WASHER(8) RELIEF VALVE ASSY(9) O-RING(10) VALVE ASSY(11) O-RING 1.5-3.5(12) O-RING(13) PUMP(14) BOLT(14) BOLT(15) BOLT(16) FILTER(17) COUPLING(18) O-RING 2-62.5(19) BAND(20) PRE-COATED SCREW 5-12(21) BOLT(22) MOTOR ASSY(23) MOTOR BRACKET ASSY(24) BREAKER(25) BREAKER HOLDER(26) O-RING(27) BRUSH(28) BRUSH SPRING(28) BRUSH SPRING(29) SCREW(29) SCREW(29) SCREW(30) BRUSH HOLDER(31) OIL SEAL(32) ARMATURE ASSY(33) SCREW(34) YOKE ASSY



Parts List
2012 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: POWER TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAP ASSY 3Z0772210M 3Z0-77221-0 $23.49 1
(2) O-RING 3B7771690M 3B7-77169-0 $5.02 1
(3) MANUAL VALVE ASSY 3BA771750M 3BA-77175-0 $154.25 1
(4) O-RING 2.4 - 9.8 3R0771770M 3R0-77177-0 $3.05 1
(5) O-RING 3Z0771790M 3Z0-77179-0 $2.77 1
(6) C-RING 3R0771710M 3R0-77171-0 $3.52 1
(7) SEAL WASHER 3AC771730M 3AC-77173-0 $6.76 1
(8) RELIEF VALVE ASSY 3BA774500M 3BA-77450-0 $51.46 1
(9) O-RING 3Z0771790M 3Z0-77179-0 $2.77 1
(10) PUMP 3Z0774600M 3Z0-77460-0 $0.00 1 Sold Out View More Details
(11) O-RING 1.5 - 3.5 3R0774510M 3R0-77451-0 $2.71 1
(12) O-RING 3B7771690M 3B7-77169-0 $5.02 2
(13) PUMP 3B7774300M 3B7-77430-0 $0.00 1 Sold Out View More Details
(14) BOLT 3B7774321M 3B7-77432-1 $3.27 2
(15) BOLT 3B7774311M 3B7-77431-1 $3.36 1
(16) FILTER 3B7774341M 3B7-77434-1 $43.47 1
(17) COUPLING PUMP 3E0771630M 3E0-77163-0 $9.60 1
(18) O-RING 2 – 62.5 3R0771670M 3R0-77167-0 $7.66 1
(19) BAND 3Z1843981M 3Z1-84398-1 $4.17 1 Sold Out View More Details
(20) PRE-COATED SCREW 5-12 3V1643330M 3V1-64333-0 $4.84 1 Sold Out View More Details
(21) BOLT 3Z0774310M 3Z0-77431-0 $6.35 2
(22) MOTOR ASSY 3BA771800M 3BA-77180-0 $359.63 1
(23) MOTOR BRACKET ASSY 3BA771920M 3BA-77192-0 $274.05 1
(24) BREAKER 3Z0771910M 3Z0-77191-0 $0.00 1 Sold Out View More Details
(25) BREAKER HOLDER 3Z0771870M 3Z0-77187-0 $0.00 1 Sold Out View More Details
(26) O-RING 3Z0771670M 3Z0-77167-0 $9.09 1
(27) BRUSH 3E0771830M 3E0-77183-0 $76.76 1
(28) BRUSH SPRING 3E0771840M 3E0-77184-0 $0.00 2 Sold Out View More Details
(29) CREW 9215215512M 921521-5512 $0.51 3 Sold Out View More Details
(30) BRUSH HOLDER 3Z0771860M 3Z0-77186-0 $0.00 1 Sold Out View More Details
(31) OIL SEAL 3E0771930M 3E0-77193-0 $0.00 1 Sold Out View More Details
(32) ARMATURE ASSY 3Z0771900M 3Z0-77190-0 $276.41 1
(33) SCREW 9215E35512M 9215E3-5512 $0.83 2
(34) YOKE ASSY 3Z0771950M 3Z0-77195-0 $263.33 1
