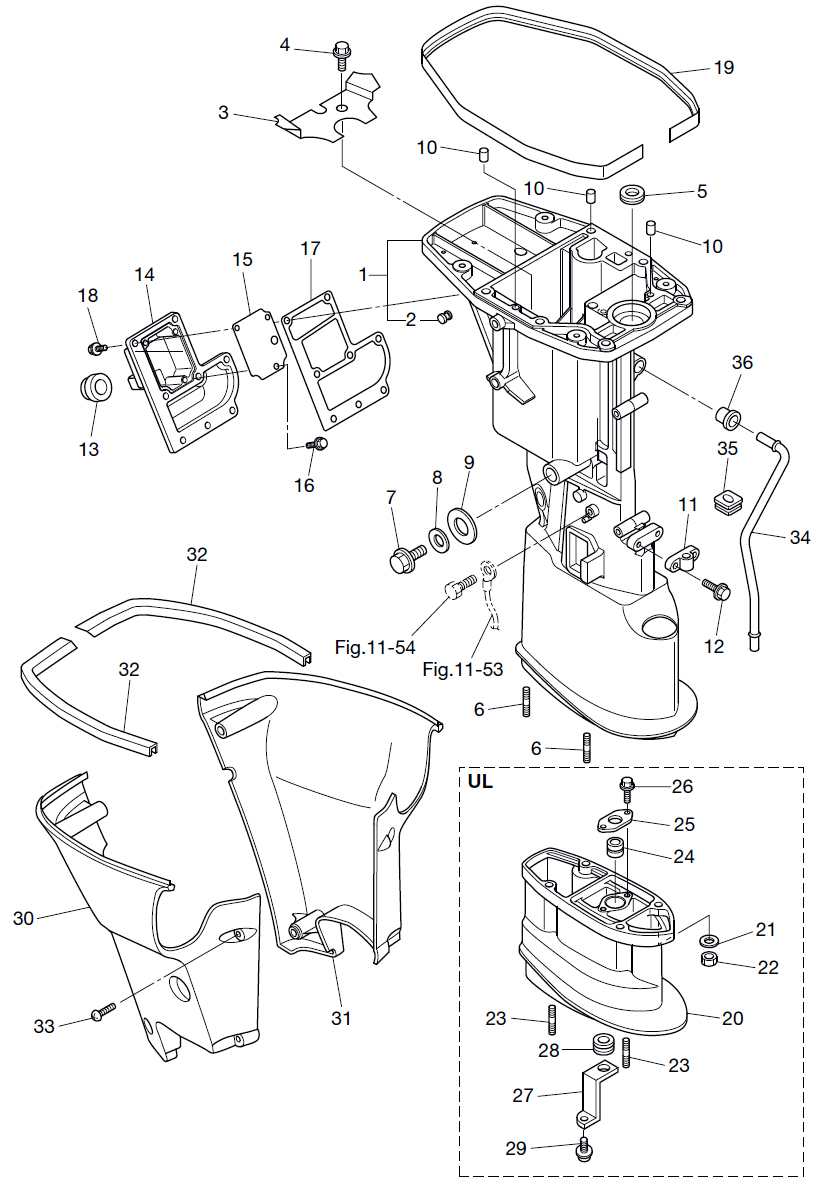

9. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING ASSY (S)(1) DRIVE SHAFT HOUSING ASSY (L)(2) EXHAUST PLUG(3) GUIDE PLATE(4) BOLT(5) OIL SEAL 12.8-25-7(6) STUD(6) STUD(7) DRAIN BOLT(8) WASHER(9) GROMMET(10) DOWEL PIN 6-12(10) DOWEL PIN 6-12(10) DOWEL PIN 6-12(11) CAM ROD HOLDER(12) BOLT(13) IDLE EXHAUST PORT GROMMET(14) IDLE EXHAUST PORT COVER(15) PLATE(16) BOLT(17) IDLE EXHAUST PORT GASKET(18) BOLT(19) ENGINE BASEMENT SEAL(20) EXTENSION HOUSING(21) WASHER 8.1-16-1.5(22) NUT(23) STUD(23) STUD(24) DRIVE SHAFT BUSHING(25) STOPPER(26) BOLT(27) LOCK PLATE(28) WATER PIPE AUXILIARY MOUNT 13-2.5(29) SCREW(30) DRIVE SHAFT HOUSING COVER (R)(31) DRIVE SHAFT HOUSING COVER (L)(32) SEAL(32) SEAL(33) TAPPING SCREW 6-60(34) WATER PIPE (S)(34) WATER PIPE (L)(34) WATER PIPE (UL)(35) WATER PIPE AUXILIARY MOUNT(36) WATER PIPE SEAL (UPPER)



Parts List
2012 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3BKQ610201 3BKQ61020-0 FOR TRANSOM S $483.83 1
(1) DRIVE SHAFT HOUSING L 3BKQ610300 3BKQ61030-0 FOR TRANSOM L & UL $540.23 1
(2) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.94 1
(3) GUIDE PLATE 3V9074400M 3V9-07440-0 $7.23 1
(4) BOLT 9101035612M 910103-5612 $1.15 1 Sold Out View More Details
(5) OIL SEAL 12.8-25-7 350012151M 350-01215-1 $5.09 1
(6) STUD BOLT 3BJ611110M 3BJ-61111-0 $2.77 4
(7) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.83 1
(8) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.88 1
(9) OIL DRAIN GROMMET 3R3670170M 3R3-67017-0 $2.35 1
(10) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 2
(11) CAM ROD HOLDER 3V6660370M 3V6-66037-0 $1.94 1
(12) BOLT 9101E35620M 910113-5620 $1.39 2
(13) IDLE EXHAUST PORT GROMMET 3BJ612070M 3BJ-61207-0 $1.61 1
(14) IDLE EXHAUST PORT COVER 3BJQ612080 3BJQ61208-0 $48.58 1
(15) IDLE EXHAUST PORT PLATE 3BJ621140M 3BJ-62114-0 $8.11 1
(16) BOLT 9101E30512M 9101E3-0512 $1.25 3
(17) IDLE EXHAUST PORT GASKET 3BJ612200M 3BJ-61220-0 $14.20 1
(18) BOLT 9101F45616M 9101F4-5616 $0.74 8
(19) ENGINE BASEMENT SEAL 3R3671160M 3R3-67116-0 $24.52 1
(20) EXTENSION HOUSING UL 3BJQ611100 3BJQ61110-0 FOR TRANSOM UL $189.07 1
(21) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 FOR TRANSOM UL $1.38 4 Sold Out View More Details
(22) NUT 9301E30800M 9301E3-0800 FOR TRANSOM UL $2.13 4
(23) STUD BOLT 3BJ611110M 3BJ-61111-0 FOR TRANSOM UL $2.77 4
(24) DRIVE SHAFT BUSHING 3BJ600030M 3BJ-60003-0 FOR TRANSOM UL $47.41 1
(25) BUSHING STOPPER 3V1643320M 3V1-64332-0 FOR TRANSOM UL $5.55 1 Sold Out View More Details
(26) BOLT 9101E35612M 910103-5612 FOR TRANSOM UL $1.15 2
(27) LOCK PLATE 3Z0652030M 3Z0-65203-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(28) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 FOR TRANSOM UL $2.59 1
(29) SCREW 9215E30510M 9215E3-0510 FOR TRANSOM UL $0.87 1 Sold Out View More Details
(30) DRIVE SHAFT HOUSING COVER (RIGHT) 3R3Q670031 3R3Q67003-1 STARBOARD SIDE $85.08 1
(31) DRIVE SHAFT HOUSING COVER (LEFT) 3R3Q670041 3R3Q67004-1 PORT SIDE $85.08 1
(32) APRON SEAL 3R3612130M 3R3-61213-0 $4.19 2 Sold Out View More Details
(33) TAPPING SCREW 6 - 60 3R0612170M 3R0-61217-0 $1.57 4
(34) WATER PIPE S 3H8651000M 3H8-65100-0 FOR TRANSOM S $14.98 1 Sold Out View More Details
(34) WATER PIPE L 3H8651100M 3H8-65110-0 FOR TRANSOM L $16.79 1 Sold Out View More Details
(34) WATER PIPE UL 3BJ651200M 3BJ-65120-0 FOR TRANSOM UL $24.32 1
(35) WATER PIPE AUXILIARY MOUNT 3R3652040M 3R3-65204-0 $3.02 1
(36) WATER PIPE SEAL (UPPER) 3R3652061M 3R3-65206-1 $2.35 1
