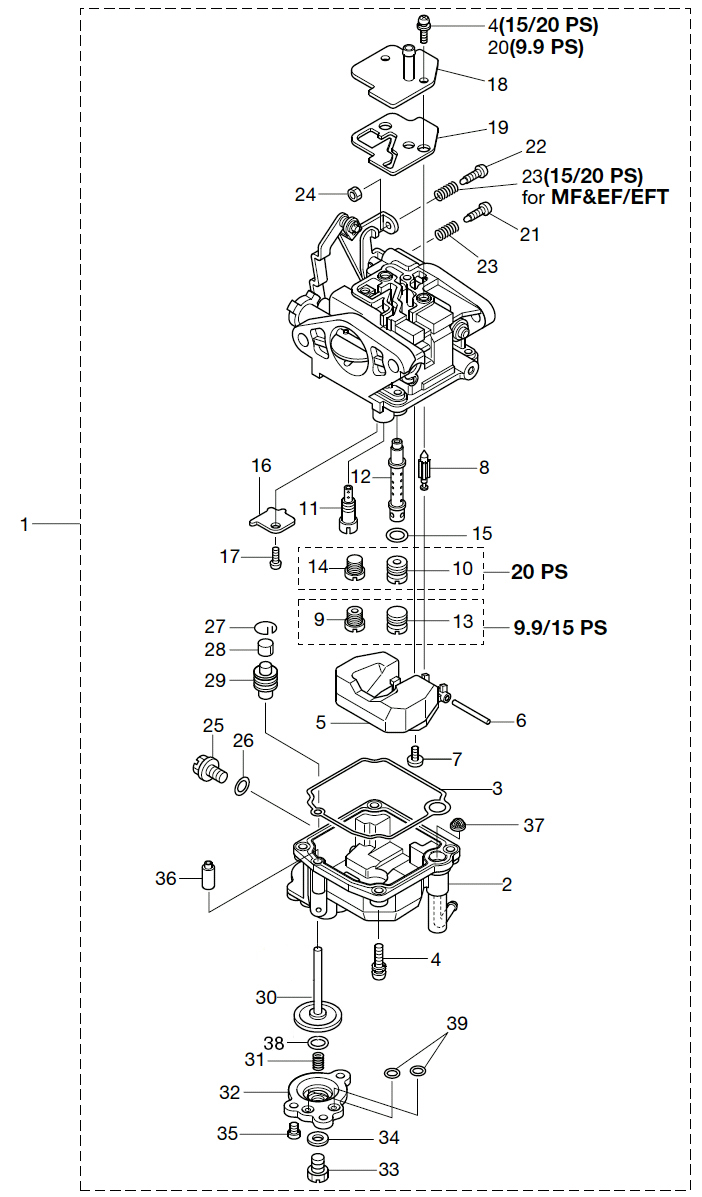

6. CARBURETOR

Click Here for Microfiche Usage Tip
(1) CARBURETOR ASSY(1) CARBURETOR ASSY (EP)(2) FLOAT CHAMBER(3) FLOAT CHAMBER GASKET(4) SCREW(4) SCREW(5) FLOAT(6) FLOAT ARM PIN(7) SCREW(8) FLOAT VALVE(9) MAIN JET (#99)(10) MAIN JET (#121)(11) SLOW JET (#46)(12) MAIN NOZZLE o1.7(13) PLUG(14) PLUG(15) O-RING(16) PLATE(17) SCREW(18) CARBURETOR COVER(19) CARBURETOR COVER GASKET(20) SCREW(21) STOP SCREW L=18(22) STOP SCREW(23) SPRING L=14(23) SPRING L=14(23) SPRING L=14(23) SPRING L=14(24) NUT(25) DRAIN SCREW(26) GASKET(27) RETAINING RING(28) CAP(29) RUBBER BOOT(30) PLUNGER COMPLETE(31) COIL SPRING(32) DIAPHRAGM COVER(33) DRAIN SCREW(34) GASKET(35) SCREW(36) CHECK VALVE(37) FILTER(38) O-RING 1.5-10.7(39) O-RING



Parts List
2012 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3BH031000M 3BH-03100-0 15PS FOR MF & EF/EFT 3BHF A5 $265.02 1
(1) CARBURETOR 3BH031330M 3AZ-03133-0 15PS FOR EP/EPT 3BHP A5 $265.02 1
(2) FLOAT CHAMBER 3BA031200M 3BA-03120-0 15/20PS $58.22 1
(3) FLOAT CHAMBER GASKET 3BA031210M 3BA-03121-0 15/20PS $11.00 1
(4) SCREW 9225030413M 922503-0413 15/20PS FLOAT CHAMBER / CARBURETOR COVER $1.27 8
(5) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(6) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(7) SCREW 9215030408M 921503-0408 15/20PS $0.75 1
(8) FLOAT VALVE 3V1031471M 3V1-03147-1 $15.02 1
(9) MAIN JET #99 3BH044990M 3BH-04499-0 15PS $11.60 1
(10) MAIN JET #121 3BJ044210M 3BJ-04421-0 20PS $11.69 0
(11) SLOW JET #46 3BH045460M 3BH-04546-0 15PS $18.80 1
(12) MAIN NOZZLE 3BH031410M 3BH-03141-0 15PS $23.97 1
(13) PLUG (FOR EU) 3V1031690M 3V1-03169-0 9.9/15PS $5.73 1
(14) PLUG 3V2031690M 3V2-03169-0 20PS $5.73 0
(15) O-RING 3V1031160M 3V1-03116-0 $1.50 1
(16) PLATE 3V1031280M 3V1-03128-0 9.9PS $2.26 0
(17) SCREW 9225030305M 922503-0305 9.9PS $0.00 0 Sold Out View More Details
(18) CARBURETOR COVER 3BJ031810M 3BJ-03181-0 15/20PS $15.65 1
(19) CARBURETOR COVER GASKET 3BJ031820M 3BJ-03182-0 15/20PS $7.27 1
(20) SCREW 9225036410M 922503-6410 9.9PS $1.79 0
(21) STOP SCREW 3V2031790M 3V2-03179-0 $3.36 1
(22) STOP SCREW 3BJ031790M 3BJ-03179-0 15/20PS FOR MF & EF/EFT $3.73 1
(23) SPRING 3V2031570M 3V2-03157-0 9.9PS FOR MF & EF / 15/20PS FOR EP/EPT $2.42 1
(23) SPRING 3V2031570M 3V2-03157-0 15/20PS FOR MF & EF/EFT $2.42 2
(24) NUT 3V1031910M 3V1-03191-0 9.9PS $5.32 0
(25) DRAIN SCREW 3BJ031920M 3BJ-03192-0 15/20PS $3.73 1
(26) DRAIN SCREW GASKET 3BJ031930M 3BJ-03193-0 15/20PS $1.59 1
(27) RETAINING RING 3AA031890M 3AA-03189-0 $3.63 1 Sold Out View More Details
(28) CAP 3AA031900M 3AA-03190-0 $2.58 1
(29) RUBBER BOOT 3AA033110M 3AA-03311-0 $4.28 1
(30) PLUNGER COMPLETE 3BJ033150M 3BJ-03315-0 15/20PS $19.14 1
(31) COIL SPRING 3BJ033140M 3BJ-03314-0 15/20PS $3.05 1
(32) DIAPHRAGM COVER 3BJ031970M 3BJ-03197-0 15/20PS $8.80 1
(33) DRAIN SCREW 3AA031920M 3AA-03192-0 15/20PS $8.00 1
(34) DRAIN SCREW GASKET 3AA031930M 3AA-03193-0 15/20PS $3.31 1
(35) SCREW 9215030410M 921503-0410 15/20PS $0.46 3
(36) CHECK VALVE 3BJ031980M 3BJ-03198-0 15/20PS $12.49 1
(37) FUEL FILTER 3BJ022340M 3BJ-02234-0 $2.86 1
(38) O-RING 1.5-10.7 3H8076320M 3H8-07632-0 15/20PS $2.01 1
(39) O-RING 3BJ032430M 3BJ-03243-0 $2.22 2
