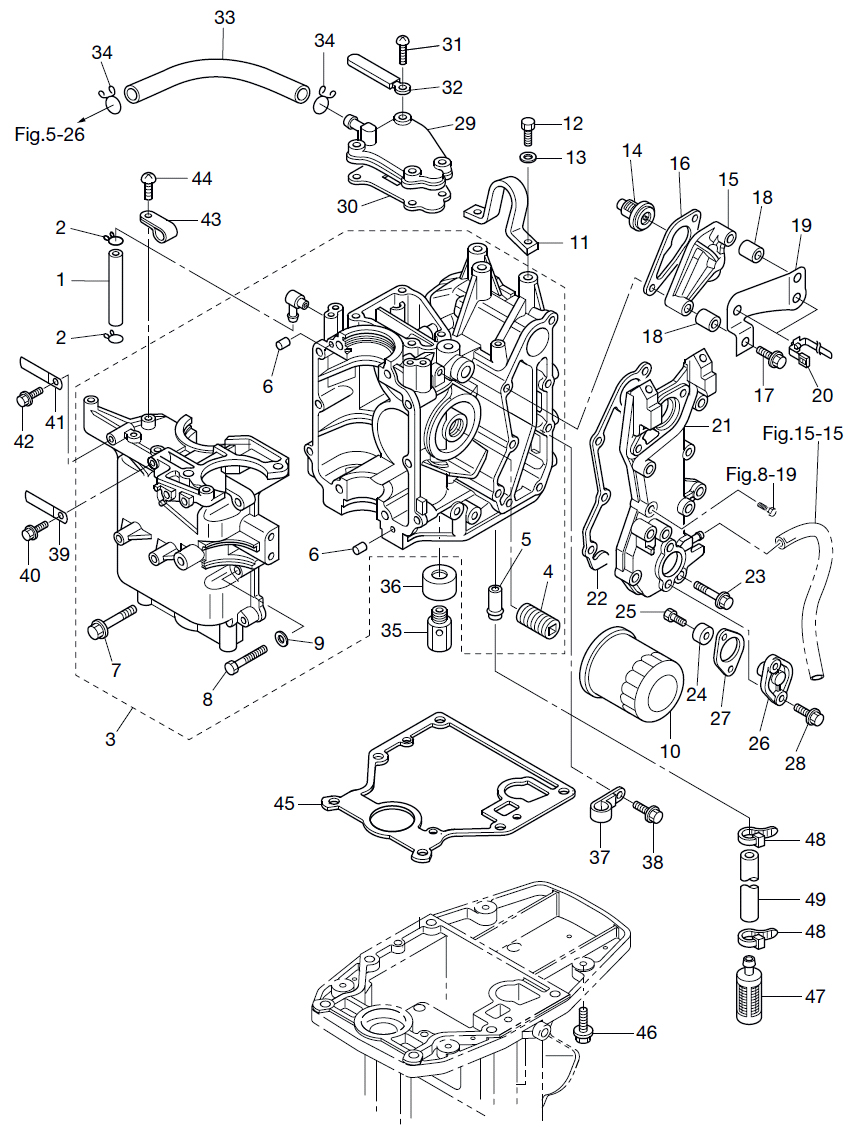

1. CYLINDER & CRANK CASE

Click Here for Microfiche Usage Tip
(1) HOSE(2) CLIP o10(2) CLIP o10(3) CYL BLOCK & CRANKCASE ASSY(4) OIL FILTER BOLT(5) NIPPLE 10-32(6) DOWEL PIN 6-12(6) DOWEL PIN 6-12(7) CYLINDER HEAD BOLT 8-50(8) BOLT(9) WASHER(10) OIL FILTER(11) HANGER(12) BOLT(13) WASHER(14) THERMOSTAT(15) THERMOSTAT CAP(16) THERMOSTAT CAP GASKET(17) BOLT(18) COLLAR 6.2-9-9.55(18) COLLAR 6.2-9-9.55(19) BRACKET(20) BAND 135(21) EXHAUST COVER (OUTER)(22) EXHAUST COVER GASKET(23) BOLT(24) ANODE(25) BOLT(26) ANODE PLUG(27) GASKET(28) BOLT(29) BREATHER CHAMBER COVER(30) GASKET(31) SCREW 6-20(32) CLAMP 6.5-47.5P(33) HOSE(34) CLIP o12(34) CLIP o12(35) PLUNGER ASSY(36) PLUNGER ASSY COVER(37) CLAMP 6.5-14L(38) BOLT(39) CLAMP 6.5-67P(40) BOLT(41) CLAMP 7-120P(42) BOLT(43) CLAMP 6.5-14L(44) SCREW(45) OILPAN GASKET(46) BOLT 8-P1.25(47) OIL STRAINER ASSY(48) BAND 158(48) BAND 158(49) HOSE



Parts List
2012 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: CYLINDER & CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RUBBER HOSE 98AB50110M 98AB-50-110 98AB-501000 $11.41 1
(2) CLIP ø10 338022150M 338-02215-0 $1.41 2
(3) CYL BLOCK & CRANKCASE ASSY 3BJB011001 3BJB01100-1 $960.21 1
(4) BOLT OIL FILTER 3H8076360M 3H8-07636-0 $6.49 1
(5) NIPPLE 10-32 3H8020930M 3H8-02093-0 $0.00 1 Sold Out View More Details
(6) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(7) BOLT 8-50 3H8010121M 3H8-01012-1 $2.49 4
(8) BOLT 9161F90630M 9161F9-0630 $2.68 6
(9) WASHER 9401E30600M 9401E3-0600 $0.00 6 Sold Out View More Details
(10) OIL FILTER ASSY 3R0076150M 3R0-07615-0 $11.78 1
(11) HANGER 3C7015132M 3C7-01513-2 $0.00 1 Sold Out View More Details
(12) BOLT 9101E40820M 9101E4-0820 $1.39 2
(13) WASHER 9402E30800M 9402E3-0800 $1.11 2
(14) THERMOSTAT 3R3010300M 3R3-01030-0 MARK 60 $39.63 1
(15) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(16) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(17) BOLT 9101E35650M 9101035650M $2.59 2
(18) COLLAR 6.2-9-9.55 3AL760790M 3AL-76079-0 $3.04 2
(19) BRACKET 3BJ068690M 3BJ-06869-0 $0.00 1 Sold Out View More Details
(20) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 2
(21) EXHAUST COVER 3BJB023010 3BJB02301-0 $48.12 1
(22) EXHAUST COVER GASKET 3R3023050M 3R3-02305-0 $7.00 1
(23) BOLT 9101F45625M 9101F4-5625 $1.04 5
(24) ANODE 369602181M 369-60218-1 $7.42 1
(25) BOLT 9101030616M 910113-0616 $0.98 1
(26) ANODE CAP 3H8B011431 3H8B01143-0 $17.31 1
(27) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.01 1
(28) BOLT 9101E35620M 910113-5620 $1.30 2
(29) BREATHER CHAMBER COVER 3R3B074310 3R3B07431-0 $0.00 1 Sold Out View More Details
(30) BREATHER CHAMBER COVER GASKET 3R3074321M 3R3074320M $4.56 1
(31) SCREW 6-20 PRE-COATED 3R3074300M 3R3-07430-0 $1.18 4
(32) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(33) RUBBER HOSE 98AB70120M 98AB-7-0120 BREATHER / 98AB-701000 $13.44 1
(34) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(35) PLUNGER 3V2076200M 3V1-07620-0 $26.96 1
(36) PLUNGER COVER 3H8076290M 3H8-07629-0 $4.10 1
(37) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(38) BOLT 9101E35612M 910103-5612 $1.07 1
(39) CLAMP 6.5-67P 398069720M 398-06972-0 FOR MF/EP & EF/EFT $2.31 1
(40) BOLT 9101E35612M 910103-5612 FOR MF/EP & EF/EFT $1.07 1
(41) CLAMP 6.5-120P 3Z5069721M 3Z5-06972-1 FOR EP/EPT $0.00 2 Sold Out View More Details
(42) BOLT 9101E35612M 910103-5612 FOR EP $1.07 1
(43) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(44) SCREW 9215E30616M 9215E3-0616 $0.98 1
(45) OIL PAN GASKET 3V9074021M 3V9-07402-1 $32.02 1
(46) BOLT 8-P1.25 3BJ610171M 3BJ-61017-1 $1.82 6
(47) OIL STRAINER 3R3077101M 3R3-07410-0 $7.36 1
(48) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(49) HOSE 98AH95150M 98AH-95-150 98AH-951000 $65.61 1
