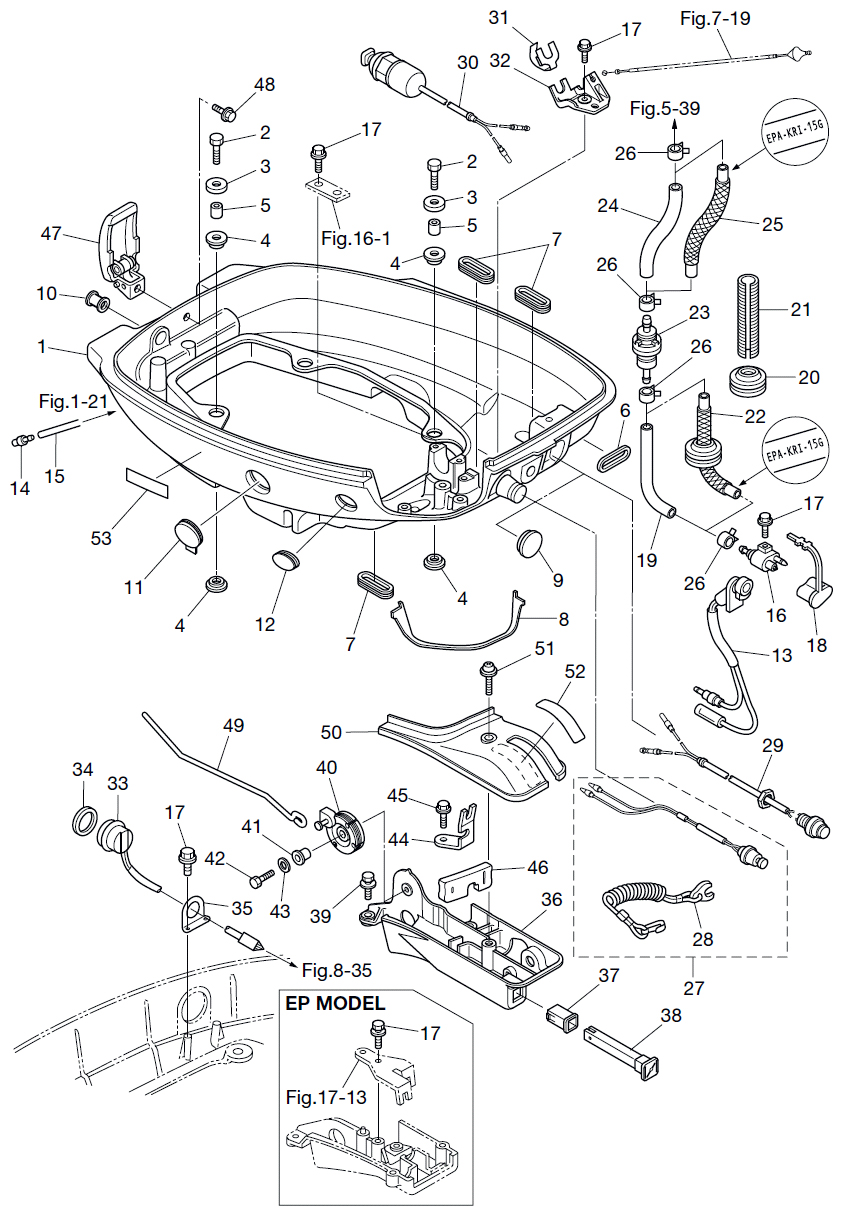

15. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) BOLT(2) BOLT(3) WASHER(3) WASHER(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(5) SPACER 6.2-9-15.7(5) SPACER 6.2-9-15.7(6) GROMMET(7) GROMMET(7) GROMMET(8) SEAL(9) GROMMET 17-2.7(10) GROMMET(11) GROMMET(12) GROMMET(13) PILOT LAMP ASSY(14) NIPPLE(15) HOSE(16) FUEL CONNECTOR (MALE)(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(17) BOLT(18) FUEL CONNECTOR PROTECTOR(19) HOSE(20) GROMMET 22-2.5(21) FUEL HOSE PROTECTOR o10.7-280(22) FUEL HOSE W/PROTECTOR L=400(23) FUEL FILTER ASSY(24) HOSE(25) FUEL HOSE W/PROTECTOR L=120(26) CLIP o9.4(26) CLIP o9.4(26) CLIP o9.4(26) CLIP o9.4(27) STOP SWITCH ASSY(28) STOP SWITCH LANYARD ASSY(29) MAIN SWITCH ASSY(30) NEUTRAL SWITCH(31) NEUTRAL SWITCH ACTUATOR(32) NEUTRAL SWITCH BRACKET(33) PTT SWITCH ASSY(34) GASKET(35) PTT SWITCH ASSY BRACKET(36) SHIFT LEVER BRACKET(37) BUSHING(38) CHOKE ROD(39) BOLT(40) THROTTLE DRUM ASSY(41) COLLAR 6.1-9-7.4(42) BOLT(43) WASHER 6-16-1.5(44) THROTTLE WIRE BRACKET(45) BOLT(46) GROMMET(47) COWL LATCH ASSY(48) BOLT(49) THROTTLE ROD(50) SHIFT LEVER BRACKET COVER(51) SCREW(52) SHIFT DECAL (F-N-R)(53) STORAGE DECAL



Parts List
2012 :: 15 HP :: 4 Stroke Nissan NSF15C :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3BAQ671000 3BAQ67100-0 $323.90 1 Sold Out View More Details
(2) BOLT 9101E30630M 910114-5630 $1.21 4
(3) RUBBER MOUNT WASHER 3BJ671150M 3BJ-67115-0 $2.40 4
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(5) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(6) BATTERY CABLE GROMMET 3R3671620M 3R3-67162-0 BATTERY CORD $1.98 1
(7) SHIFT ROD GROMMET 3R3662260M 3R3-66226-0 SHIFT ROD $1.44 3
(8) SHIFT LEVER BRACKET SEAL 3BJ674840M 3BJ-67484-0 $10.95 1
(9) GROMMET 17-2.7 345671170M 345-67117-0 MAIN SWITCH FOR MF & EP/EPT $2.31 1 Sold Out View More Details
(10) GROMMET 3B2671870M 3B2-67187-0 THROTTLE SHAFT $3.27 1
(11) GROMMET 3BA726180M 3BA-72618-0 PTT SWITCH FOR MF/EP & EF/EFT $3.83 1
(12) GROMMET 3BA671870M 3BA-67187-0 $2.26 1
(13) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(14) WATER NIPPLE 3BA011380M 353-01138-0 $2.21 1
(15) HOSE 98AB50330M 98AB-5-0330 98AB-501000 $11.41 1
(16) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(17) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR MF & EF/EFT HOLDER CONNECTOR NEUTRAL SW $1.15 4
(17) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EP HOLDER CONNECTOR NEUTRAL SW CABLE CLIP $1.15 5
(17) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EPT HOLDER CONNECTOR N-SW C/CLIP PTT SW $1.15 7
(18) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(19) RUBBER HOSE 98AB50400M 98AB-5-0400 STD / 98AB-501000 $11.41 1
(20) GROMMET 22-2.5 345760230M 345-76023-0 STD $4.38 1
(21) FUEL HOSE PROTECTOR 3BJ703130M 3BJ-70313-0 STD $0.00 1 Sold Out View More Details
(22) FUEL HOSE W/PROTECTOR L=400 3BA021600M 3BA-02160-0 LOW PERMEATION PARTS / EPA-KRI-15G USA GROMMET $37.26 1
(23) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(24) RUBBER HOSE 98AB50120M 98AB-5-0120 STD / 98AB-501000 $11.41 1
(25) FUEL HOSE W/PROTECTOR L=120 3BH021600M 3BH-02160-0 LOW PERMEATION PARTS / EPA-KRI-15G USA $12.42 1
(26) CLIP ø 9.5 3AB351430M 121-35143-0 FUEL CONNECTOR-FUEL PUMP $1.30 4
(27) STOP SWITCH 398068300M 398-06830-0 $48.44 1
(28) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(29) MAIN SWITCH 3AA760260M 3AA-76026-0 FOR EF/EFT $13.94 1
(30) NEUTRAL SWITCH 361760800M 361-76080-0 FOR EF/EFT $20.43 1
(31) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF/EFT $4.02 1
(32) NEUTRAL SWITCH BRACKET 3BJ760810M 3BJ-76081-0 $9.90 1
(33) PTT SWITCH 3AC726150M 3AC-72615-0 FOR EPT $61.81 1
(34) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 FOR EPT $3.27 1
(35) PTT SWITCH BRACKET 3AL726170M 3AL-72617-0 FOR EPT $9.55 1
(36) SHIFT LEVER BRACKET 3BJQ674800 3BJQ67480-0 FOR MF & EF/EFT $36.81 1
(37) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF/EFT $3.31 1
(38) CHOKE ROD 3C8671511M 3C8-67151-0 FOR MF & EF/EFT $5.75 1 Sold Out View More Details
(39) BOLT 9101E35620M 910113-5620 FOR MF & EF/EFT $1.30 2
(40) THROTTLE DRUM ASSY 3BH636220M 3BH-63622-0 FOR MF & EF/EFT $4.95 1
(41) COLLAR 6.1-14-8.9 3BJ062830M 3BJ-06283-0 FOR MF & EF/EFT $4.42 1
(42) BOLT 9101E30620M 9101E3-0620 FOR MF & EF/EFT $1.04 1
(43) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 THROTTLE DRUM SHIFT LEVER FOR MF & EF/EFT $1.59 2 Sold Out View More Details
(44) THROTTLE WIRE BRACKET 3BJ635080M 3BJ-63508-0 FOR MF & EF/EFT $3.82 1
(45) BOLT 9101E35625M 910113-5625 FOR MF & EF/EFT $1.47 1
(46) SHIFT LEVER ROD GROMMET 3BJ662600M 3BJ-66260-0 FOR MF & EF/EFT $5.32 1
(47) COWL LATCH ASSY 3AA671200M 3AA-67120-0 $20.93 1
(48) BOLT 9101E35612M 910103-5612 $1.07 1
(49) THROTTLE ROD 3BA636170M 3BA-63617-0 FOR MF & EF/EFT $8.29 1
(50) SHIFT LEVER BRACKET COVER 3BJ674810M 3BJ-67481-0 FOR MF & EF/EFT $7.36 1
(51) SCREW 9225E35635M 9225E3-5635 FOR MF & EF/EFT $1.68 1
(52) SHIFT DECAL (F N R) 3V9675781M 3V9-67578-1 FOR MF & EF/EFT $7.07 1
(53) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
