11. BRACKET (MANUAL)

Click Here for Microfiche Usage Tip
(1) LOCK PLATE(2) CLAMP BRACKET (R)(3) CO-PILOT DECAL(4) CLAMP BRACKET (L)(5) ANODE(6) BOLT(7) DISTANCE PIECE(8) WASHER(8) WASHER(8) WASHER(8) WASHER(8) WASHER(8) WASHER(8) WASHER(8) WASHER(9) NUT(9) NUT(10) SWIVEL BRACKET SHAFT ASSY(11) NYLON NUT 7/8(12) BUSHING 26-32(12) BUSHING 26-32(13) CAP NUT(13) CAP NUT(14) THRUST ROD ASSY(15) THRUST ROD SPRING(16) SWIVEL BRACKET ASSY(17) PIN(18) GREASE FITTING(18) GREASE FITTING(19) STEERING SHAFT ASSY(20) BUSHING 28-31-35(20) BUSHING 28-31-35(21) THRUST PLATE (UPPER)(21) THRUST PLATE (UPPER)(22) O-RING 3.5-25.7(23) RUBBER MOUNT (UPPER)(23) RUBBER MOUNT (UPPER)(23) RUBBER MOUNT (UPPER)(23) RUBBER MOUNT (UPPER)(24) BOLT(24) BOLT(25) STUD 10-95(25) STUD 10-95(26) NYLON NUT 10-P1.5(26) NYLON NUT 10-P1.5(27) WASHER(27) WASHER(28) DAMPER (LOWER)(28) DAMPER (LOWER)(29) RUBBER MOUNT (LOWER)(29) RUBBER MOUNT (LOWER)(30) MOUNT BRACKET (R)(31) MOUNT BRACKET (L)(32) BOLT(33) BOLT(34) NUT(35) WASHER 8.1-16-1.5(36) ANODE(37) BOLT(38) FRICTION LEVER(39) WASHER 8.1-20-0.8(40) BOLT(41) NYLON NUT 8-P1.25(42) PLATE(43) BOLT(44) WASHER(45) DISC(46) TILT STOPPER(47) SPRING PIN(48) BUSHING 8.2-10-26.5(49) SETTING PLATE(50) BOLT(51) FRICTION SPRING(52) SETTING PIECE(53) GROUND L=130(54) BOLT(55) GROUND L=130(56) GROUND L=130(57) BOLT(57) BOLT(58) REVERSE LOCK LEVER(59) REVERSE LOCK LEVER GRIP(60) STOPPER(61) SHOULDER BOLT 6-8(62) WASHER(63) BUSHING 8.1-20(64) WASHER 8.5-18-1.6(65) WASHER 6-16-1.5(66) REVERSE LOCK(67) REVERSE LOCK ARM(68) COLLAR(69) REVERSE LOCK SHAFT(69) REVERSE LOCK SHAFT(70) E-RING D=5(70) E-RING D=5(70) E-RING D=5(70) E-RING D=5(71) REVERSE LOCK LEVER SPRING(72) REVERSE LOCK SPRING(73) REVERSE LOCK LINK(74) SPRING PIN(75) ROD SNAP 3.5-2(76) BOLT(77) NUT(78) WASHER(78) WASHER(79) CLAMP SCREW KIT(80) CLAMP SCREW ASSY(81) CLAMP SCREW(82) CLAMP SCREW HANDLE(83) RIVET 3-22(84) CLAMP SCREW PAD(85) SHOULDER BOLT



Parts List

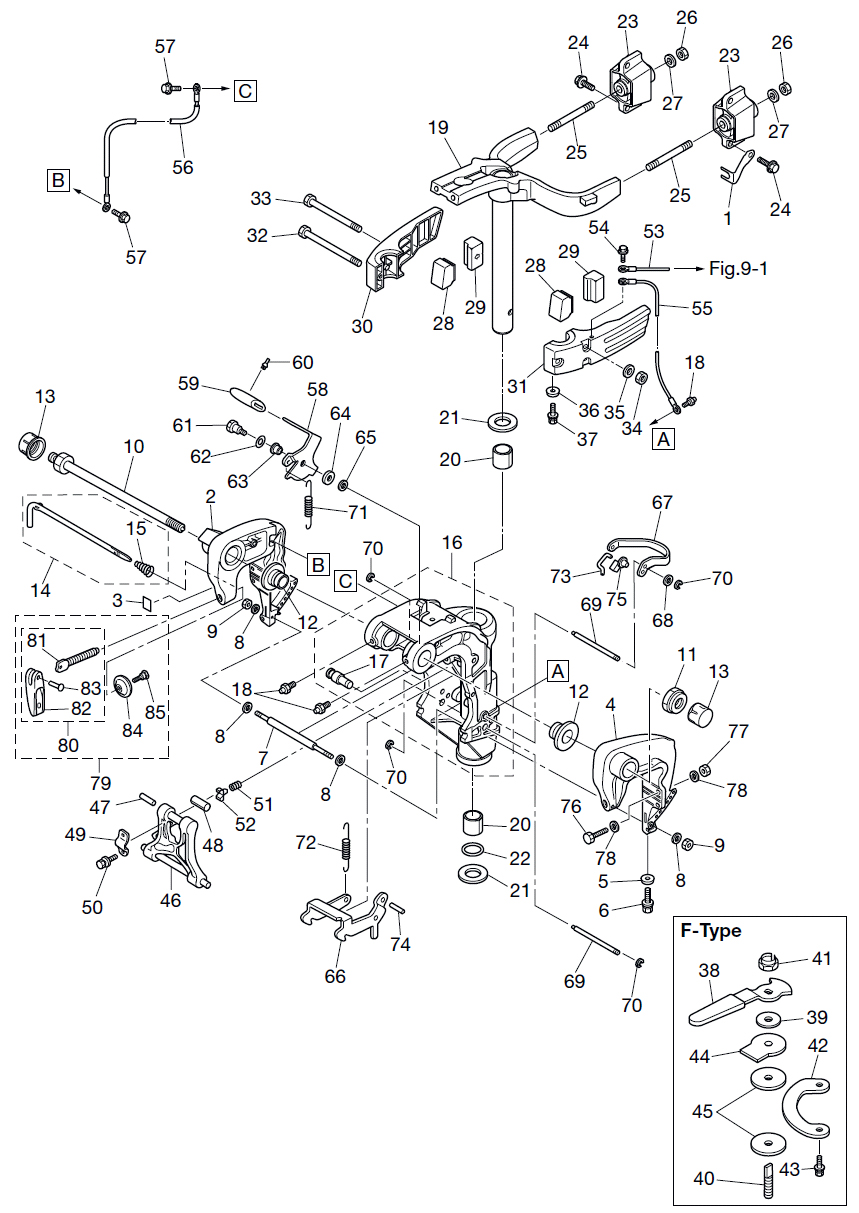

2012 :: 15 HP :: 4 Stroke Nissan NSF15C :: BRACKET (MANUAL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) WATER PIPE LOCK PLATE 3R3652050M 3R3-65205-0 $4.89 1
(2) CLAMP BRACKET (RIGHT) 3BJQ621120 3BJQ62112-0 STARBOARD SIDE $78.75 1
(3) LABEL CO-PILOT 3H8720490M 3H8-72049-0 FOR MF & EF/EFT $2.48 1
(4) CLAMP BRACKET (LEFT) 3BJQ621130 3BJQ62113-0 PORT SIDE $78.75 1
(5) ANODE 338602182M 338-60218-2 $9.84 1
(6) BOLT 9101035620M 910103-5620 $1.39 1 Sold Out View More Details
(7) DISTANCE PIECE 3V6621170M 3V6-62117-0 $11.11 1
(8) WASHER 9401E30600M 9401E3-0600 DISTANCE PIECE $0.00 2 Sold Out View More Details
(8) WASHER 9401E30600M 9401E3-0600 CLAMP BRACKET $0.00 2 Sold Out View More Details
(9) NUT 9301E30600M 9301E3-0600 $0.55 2
(10) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $44.07 1
(11) NYLON NUT 7/8 346621241M 346-62124-0 $22.63 1
(12) BUSHING BRACKET BOLT 349621260M 349-62126-0 $5.16 2
(13) CAP BRACKET BOLT 346621270M 346-62127-0 FOR MF/EF $2.48 2 Sold Out View More Details
(14) THRUST ROD ASSY 3BJ621230M 3BJ-62123-0 $39.59 1
(15) THRUST ROD SPRING 369621222M 369-62122-2 $1.98 1
(16) SWIVEL BRACKET ASSY 3BJQ623090 3BJQ62309-0 $220.58 1
(17) PIN 3BA663140M 3BA-66314-0 $0.00 1 Sold Out View More Details
(18) GREASE FITTING 344671771M 344-67177-0 $2.74 3
(19) STEERING SHAFT ASSY 3BKQ620100 3R3Q62010-1 $487.81 1
(20) BUSHING 28-31-35 3R3624170M 3R3-62417-0 $2.48 2
(21) THRUST PLATE 28.5-48-1 3H8624231M 3H8-62423-1 $2.07 2
(22) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.18 1
(23) RUBBER MOUNT (UPPER) 3BJ613010M 3BJ-61301-0 FOR TRANSOM S & L $42.42 2
(23) RUBBER MOUNT (UPPER) 3BA613010M 3R3613010M FOR TRANSOM UL $88.23 2 Sold Out View More Details
(24) BOLT 9101E35830M 9101E3-5830 $2.02 4 Sold Out View More Details
(25) STUD BOLT 10-95 3R3613131M 3R3-61313-1 $8.19 2
(26) NYLON NUT 9304031000M 930403-1000 $4.89 2
(27) WASHER 9401E31000M 940113-1000 $1.61 2
(28) DAMPER (LOWER) 3BJ613360M 3BJ-61336-0 $28.35 2
(29) RUBBER MOUNT (LOWER) 3BJ613020M 3BJ-61302-0 $12.60 2
(30) MOUNT BRACKET (RIGHT) 3BJQ614010 3BJQ61401-0 STARBOARD SIDE $39.39 1
(31) MOUNT BRACKET (LEFT) 3BJQ614020 3BJQ61402-0 PORT SIDE $39.39 1
(32) BOLT 9101E30855M 9101E3-0855 $1.79 1
(33) BOLT 9101E30885M 9101E3-0885 $3.74 2 Sold Out View More Details
(34) NUT 9301E30800M 9301E3-0800 $2.13 3
(35) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.38 3 Sold Out View More Details
(36) ANODE 338602182M 338-60218-2 $9.84 1
(37) BOLT 9101035620M 910103-5620 $1.39 1 Sold Out View More Details
(38) CO- PILOT HANDLE 3AA624410M 3AA-62441-0 FOR F-TYPE $13.81 1
(39) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR F-TYPE $1.59 1
(40) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR F-TYPE $7.22 1
(41) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 FOR F-TYPE $5.62 1
(42) PLATE CO-PILOT 3R3624470M 3R3-62447-0 FOR F-TYPE $4.58 1
(43) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR F-TYPE $1.22 2
(44) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR F-TYPE $5.99 1
(45) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR F-TYPE $8.46 2
(46) TILT STOPPER 3G2Q629931 3G2Q62993-1 $34.67 1
(47) SPRING PIN 5-40 9514030540M 951403-0540 $1.25 1
(48) BUSHING 8.2-10-26.5 350624370M 350-62437-0 $1.66 1
(49) TILT STOPPER SETTING PLATE 350624391M 350-62439-1 $5.66 1
(50) BOLT 9101E35818M 9101E3-5818 $1.75 2
(51) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.59 1
(52) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.50 1
(53) GROUND CABLE 398623961M 398-62396-1 MOUNT BRACKET-DRIVE SHAFT HOUSING $6.15 1
(54) BOLT 9101035610M 910103-5610 $1.10 2 Sold Out View More Details
(55) GROUND CABLE 398623961M 398-62396-1 MOUNT BRACKET-SWIVEL BRACKET $6.15 1
(56) GROUND CABLE 398623961M 398-62396-1 CLAMP BRACKET-SWIVEL BRACKET $6.15 1
(57) BOLT 9101035612M 910103-5612 $1.15 2 Sold Out View More Details
(58) REVERSE LOCK LEVER 3BA663110M 3BA-66311-0 $36.51 1
(59) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 $3.87 1
(60) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.36 1
(61) SHOULDER BOLT 6-8 3AL052540M 3AL-05254-0 $10.73 1
(62) WASHER 9401E30800M 9401E3-0800 $0.70 1
(63) BUSHING 8.1-20 3AL052120M 3AL-05212-0 $1.75 1
(64) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.56 1
(65) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 1
(66) REVERSE LOCK 3BA663220M 3BA-66322-0 $31.70 1
(67) REVERSE LOCK ARM 3BA663130M 3BA-66313-0 $12.37 1
(68) COLLAR 3BA632070M 3BA-63207-0 $2.07 1
(69) SHAFT REVERSE LOCK B 3G2663240M 3G2-66324-0 $3.91 2
(70) E-RING D=5 9453030500M 945303-0500 $0.92 4
(71) REVERSE LOCK LEVER SPRING 3BA663230M 3BA-66323-0 $5.09 1
(72) REVERSE LOCK SPRING 3BA663150M 3BA-66315-0 $4.74 1
(73) REVERSE LOCK LINK 3BA663050M 3BA-66305-0 $4.14 1
(74) SPRING PIN 5-35 9514030535M 951403-0535 $1.25 1
(75) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.56 1
(76) BOLT 9101E30885M 9101E3-0885 OPT $3.74 4 Sold Out View More Details
(77) NUT 9301E30800M 9301E3-0800 OPT $2.13 4
(78) WASHER 9401E30800M 9401E3-0800 OPT $0.70 8
(79) CLAMP SCREW KIT 3AAQ621050 3AAQ62105-0 $28.09 2 Sold Out View More Details
(80) CLAMP SCREW ASSY 3AAQ621080 3AAQ62108-0 $57.27 1
(81) CLAMP SCREW 3AA621060M 3AA-62106-0 $22.60 1
(82) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $8.11 1
(83) RIVET 3-22 3C8621042M 3C8-62104-2 $0.98 1
(84) CLAMP SCREW PAD 332621011M 332-62101-1 $4.61 1 Sold Out View More Details
(85) SHOULDER BOLT 3C8621070M 3C8-62107-0 $9.18 1 Sold Out View More Details
