11. BRACKET (MF & EF MODEL)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (R)(2) CLAMP BRACKET (L)(3) BOLT 8-122(4) NYLON NU T8-P1.25(5) WASHER(6) WASHER8 5-28-1(6) WASHER8 5-28-1(7) DISTANCE PLATE(8) SCREW(9) STERN BRACKET SPRING(10) SCREW(11) WASHER 4.3-16-1.5(12) THRUST ROD(13) THRUST ROD SPRING(14) SWIVEL BRACKET(15) GREASE FITTING(16) FRICTION PIECE(17) FRICTION SPRING(18) BOLT(19) REVERSE LOCK(20) REVERSE LOCK ARM(21) REVERSE LOCK ROD(21) REVERSE LOCK ROD(22) E-RING D=5(22) E-RING D=5(22) E-RING D=5(22) E-RING D=5(23) REVERSE LOCK SPRING(24) REVERSE LOCK LINK(25) ROD SNAP 5-3(26) ROD SNAP 4-2(27) STEERING SHAFT ASSY(28) STUD(28) STUD(29) BUSHING 24-30-30(29) BUSHING 24-30-30(30) THRUST PLATE (UPPER)(30) THRUST PLATE (UPPER)(31) O-RING 3.5-22(32) RUBBER MOUNT (UPPER)(32) RUBBER MOUNT (UPPER)(33) BOLT(33) BOLT(34) DAMPER (UPPER)(35) WASHER(35) WASHER(36) NUT(36) NUT(37) RUBBER MOUNT (LOWER)(37) RUBBER MOUNT (LOWER)(38) MOUNT BRACKET (R)(39) MOUNT BRACKET (L)(40) BOLT(41) GROUND L=110(42) GROUND L=110(43) BOLT(43) BOLT(44) TILT STOPPER ASSY(45) TILT STOPPER GRIP(46) BUSHING(46) BUSHING(47) SETTING PLATE(48) BOLT(49) CLAMP SCREW KIT(50) CLAMP SCREW ASSY(51) CLAMP SCREW(52) CLAMP SCREW HANDLE(53) RIVET 3-22(54) CLAMP SCREW PAD(55) SHOULDER BOLT



Parts List

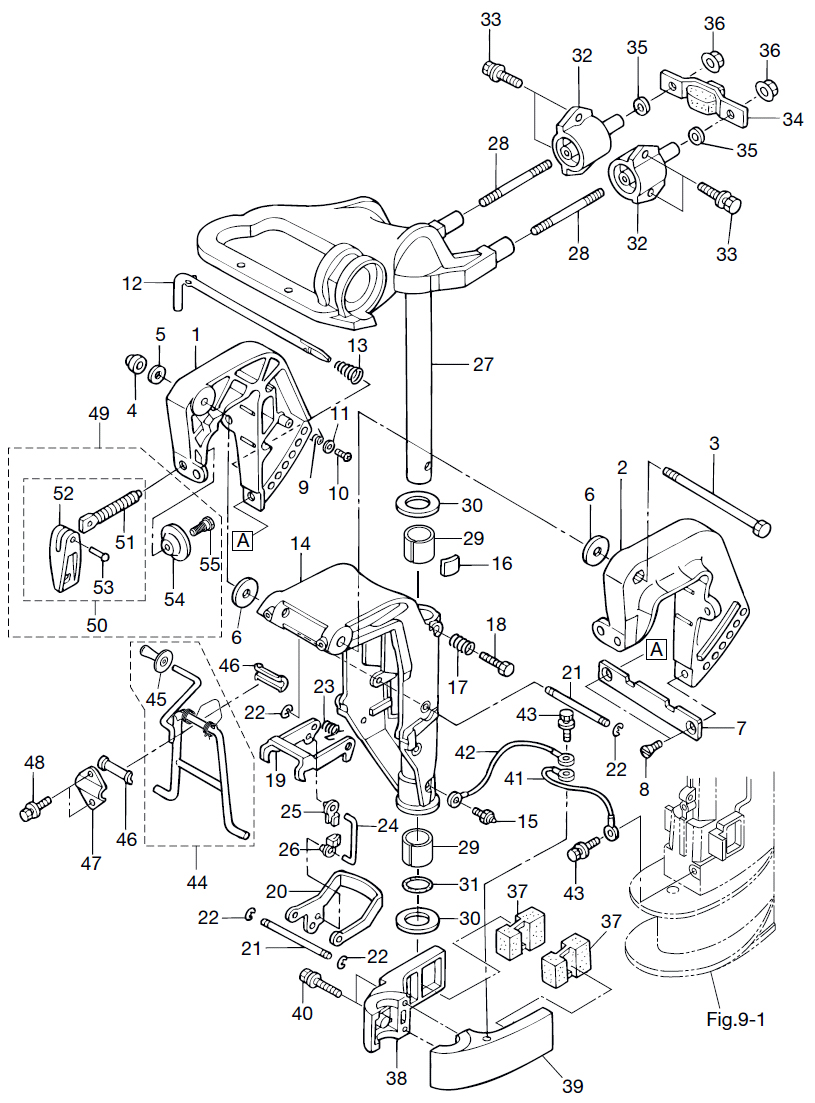

2012 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: BRACKET (MF & EF MODEL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (R) 3V1Q621121 3V1Q62112-0 STERN BRACKET / STARBOARD SIDE $70.52 1
(2) CLAMP BRACKET (L) 3V1Q621131 3V1Q62113-0 STERN BRACKET / PORT SIDE $70.52 1 Sold Out View More Details
(3) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(4) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(5) WASHER 9401E30800M 9401E3-0800 $0.65 1
(6) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(7) DISTANCE PLATE 3B2621180M 3B2-62118-0 $6.47 1 Sold Out View More Details
(8) SCREW 9216E30612M 9216E3-0612 $0.98 2
(9) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(10) SCREW 9217030406M 920703-0406 $0.67 1
(11) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(12) THRUST ROD 350621212M 350-62121-1 $20.96 1
(13) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(14) SWIVEL BRACKET 3V1Q623100 3V1Q62310-0 $136.79 1
(15) GREASE FITTING 344671771M 344-67177-0 $2.56 1 Sold Out View More Details
(16) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(17) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(18) BOLT 9101E30830M 9101E3-0830 $1.67 1
(19) REVERSE LOCK 3V1663220M 3V1-66322-0 $12.34 1
(20) REVERSE LOCK ARM 3V1663130M 3V1-66313-0 $15.13 1
(21) REVERSE LOCK ROD 3B2663211M 3B2-66321-1 $4.19 2
(22) E-RING D=5 9453030500M 945303-0500 $0.86 4
(23) REVERSE LOCK SPRING 3B2663150M 3B2-66315-0 $2.31 1
(24) REVERSE LOCK LINK 3V1663051M 3V1-66305-0 $3.46 1
(25) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 1
(26) ROD SNAP 4-2 3K9052230M 3K9-05223-0 $1.02 1
(27) STEERING SHAFT 3V1Q620100 3V1Q62010-0 $251.99 1
(28) STUD 3V1613131M 3V1-61313-0 $7.18 2 Sold Out View More Details
(29) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 2
(30) THRUST PLATE 22-44-2 350624230M 350-62423-0 $4.63 2
(31) O-RING 3.5-22 350624150M 350-62415-0 $2.07 1
(32) RUBBER MOUNT (UPPER) 3V1B613011 3V1B61301-1 $43.13 2
(33) BOLT 9101F45620M 9101F4-5620 $1.53 4
(34) DAMPER (UPPER) 3V1613331M 3V1-61333-1 $21.58 1
(35) WASHER 9401E30800M 9401E3-0800 $0.65 2
(36) NUT 3V1613240M 3V1-61324-0 $1.99 2 Sold Out View More Details
(37) RUBBER MOUNT (LOWER) 3V1613020M 3V1-61302-0 $9.64 2
(38) MOUNT BRACKET (RIGHT) 3V1Q614010 3V1Q61401-0 STARBOARD SIDE $44.80 1
(39) MOUNT BRACKET (LEFT) 3V1Q614020 3V1Q61402-0 PORT SIDE $44.80 1
(40) BOLT 9101E35652M 910113-5652 $2.91 2
(41) GROUNG CABLE 3A3623961M 3A3-62396-0 DRIVE SHAFT HOUSING-MOUNT BRACKET (R) $17.85 1
(42) GROUNG CABLE 3A3623961M 3A3-62396-0 SWIVEL BRACKET-MOUNT BRACKET (R) $17.85 1
(43) BOLT 9101E35612M 910103-5612 $1.07 2
(44) TILT STOPPER ASSY 3V1624311M 3B2S62431-3 $34.68 1 Sold Out View More Details
(45) TILT STOPPER GRIP 3AS624330M 393-62433-0 $1.82 1
(46) BUSHING 393624371M 393-62437-0 $2.25 2
(47) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(48) BOLT 9101E35612M 910103-5612 $1.07 2
(49) CLAMP SCREW KIT 3V1Q621050 398S62100-0 $31.11 2
(50) CLAMP SCREW ASSY 3V1Q621080 3V1Q62108-0 $31.11 1
(51) CLAMP SCREW 3V1621060M 398-62103-0 $49.87 1
(52) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 1
(53) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 1
(54) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(55) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
