6. CARBURETOR

Click Here for Microfiche Usage Tip

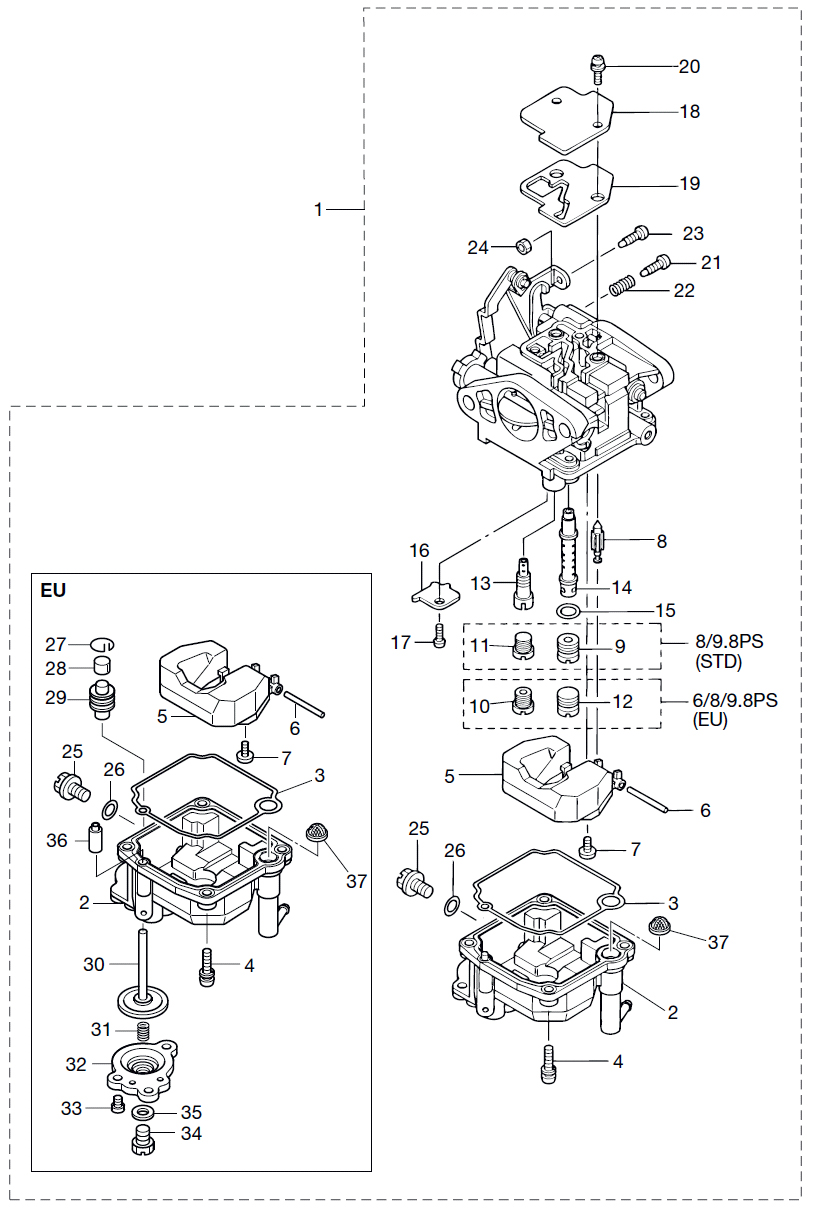

(1) CARBURETOR ASSY(1) CARBURETOR ASSY(1) CARBURETOR ASSY (EP)(1) CARBURETOR ASSY (EP)(2) FLOAT CHAMBER(2) FLOAT CHAMBER(2) FLOAT CHAMBER(2) FLOAT CHAMBER(3) FLOAT CHAMBER GASKET(3) FLOAT CHAMBER GASKET(4) SCREW(4) SCREW(5) FLOAT(5) FLOAT(6) FLOAT ARM PIN(6) FLOAT ARM PIN(7) SCREW(7) SCREW(8) FLOAT VALVE(9) MAIN JET (#92)(10) MAIN JET (#93)(11) PLUG(12) PLUG(13) SLOW JET (#39)(13) SLOW JET (#40)(14) MAIN NOZZLE o2.6(14) MAIN NOZZLE o2.3(15) O-RING(16) PLATE(17) SCREW(18) CARBURETOR COVER(19) CARBURETOR COVER GASKET(20) SCREW(21) STOP SCREW L=18(22) SPRING L=14(23) STOP SCREW L=15(24) NUT(25) DRAIN SCREW(25) DRAIN SCREW(26) GASKET(26) GASKET(27) RETAINING RING(28) CAP(29) RUBBER BOOT(30) PLUNGER COMPLETE(31) COIL SPRING(32) DIAPHRAGM COVER(33) SCREW(34) DRAIN SCREW(35) GASKET(36) CHECK VALVE(37) FILTER(37) FILTER



Parts List
2012 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR ASSY 3V2031003M 3V2-03100-2 9.8PS / FOR F TYPE $264.85 1 Sold Out View More Details
(1) CARBURETOR ASSY 3DP031002 3DP-03100-2 9.8PS / FOR F TYPE EU $0.00 1 Sold Out View More Details
(1) CARBURETOR ASSY (EP) 3V2031333M 3V2-03133-2 9.8PS / FOR P TYPE $220.32 1
(1) CARBURETOR ASSY (EP) 3DP031332 3DP-03133-2 9.8PS / FOR EP TYPE EU $0.00 1 Sold Out View More Details
(2) FLOAT CHAMBER 3Y2031200M 3Y2-03120-0 9.8PS / FOR EU $0.00 1 Sold Out View More Details
(2) FLOAT CHAMBER 3V1031200M 3V1-03120-0 8/9.8PS STD $38.82 1
(3) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $4.86 1
(4) SCREW 9225036412M 922503-6412 $1.47 4
(5) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(6) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(7) SCREW 9217030406M 920703-0406 $0.67 1
(8) FLOAT VALVE 3V1031471M 3V1-03147-1 $15.02 1
(9) MAIN JET #92 3V2044920M 3V2-04492-0 9.8PS / STD $7.41 1
(10) MAIN JET #93 (FOR EU) 3V1044930M 3V1-04493-0 9.8PS / FOR EU $8.45 1
(11) PLUG (FOR EU) 3V1031690M 3V1-03169-0 8/9.8PS / STD $5.73 1
(12) PLUG 3V2031690M 3V2-03169-0 6/8/9.8PS / FOR EU $5.73 1
(13) SLOW JET #36 3V1045390M 3V1-04539-0 8/9.8PS / STD $17.55 1
(13) SLOW JET #40 (FOR EU) 3V1045400M 3V1-04540-0 9.8PS / FOR EU $18.32 1
(14) MAIN NOZZLE 3V2031410M 3V2-03141-0 9.8PS / STD $21.12 1
(14) MAIN NOZZLE (FOR EU) 3Y2031410 3Y2-03141-0 9.8PS / FOR EU $0.00 1 Sold Out View More Details
(15) O-RING 3V1031160M 3V1-03116-0 $1.50 1
(16) PLATE 3V1031280M 3V1-03128-0 $2.26 1
(17) SCREW 9225030305M 922503-0305 $0.00 1 Sold Out View More Details
(18) CARBURETOR COVER 3C8031810M 3C8-03181-0 $6.90 1
(19) CARBURETOR COVER GASKET 3V1031820M 3V1-03182-0 $6.74 1
(20) SCREW 9225036410M 922503-6410 $1.79 2
(21) STOP SCREW 3V2031790M 3V2-03179-0 $3.36 1
(22) SPRING 3V2031570M 3V2-03157-0 $2.42 1
(23) STOP SCREW 3V1031790M 3V1-03179-0 FOR MF & EF $3.32 1
(24) NUT 3V1031910M 3V1-03191-0 FOR MF & EF $5.32 1
(25) DRAIN SCREW 3V1031920M 3V1-03192-0 $3.28 1
(26) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.40 1
(27) RETAINING RING 3AA031890M 3AA-03189-0 FOR EU $3.63 1 Sold Out View More Details
(28) CAP 3AA031900M 3AA-03190-0 FOR EU $2.58 1
(29) RUBBER BOOT 3AA033110M 3AA-03311-0 FOR EU $4.28 1
(30) PLUNGER COMPLETE 3AA033150M 3AA-03315-0 FOR EU $18.75 1
(31) COIL SPRING 3AA033140M 3AA-03314-0 FOR EU $3.11 1
(32) DIAPHRAGM COVER 3Y0031970M 3Y0-03197-0 FOR EU $10.96 1
(33) SCREW 9215030508M 921503-0508 FOR EU $0.60 3
(34) DRAIN SCREW 3AA031920M 3AA-03192-0 FOR EU $8.00 1
(35) DRAIN SCREW GASKET 3AA031930M 3AA-03193-0 FOR EU $3.31 1
(36) CHECK VALVE 3Y2031980 3Y2-03198-0 9.8PS / FOR EU $0.00 1 Sold Out View More Details
(37) FUEL FILTER 3BJ022340M 3BJ-02234-0 $2.86 1
