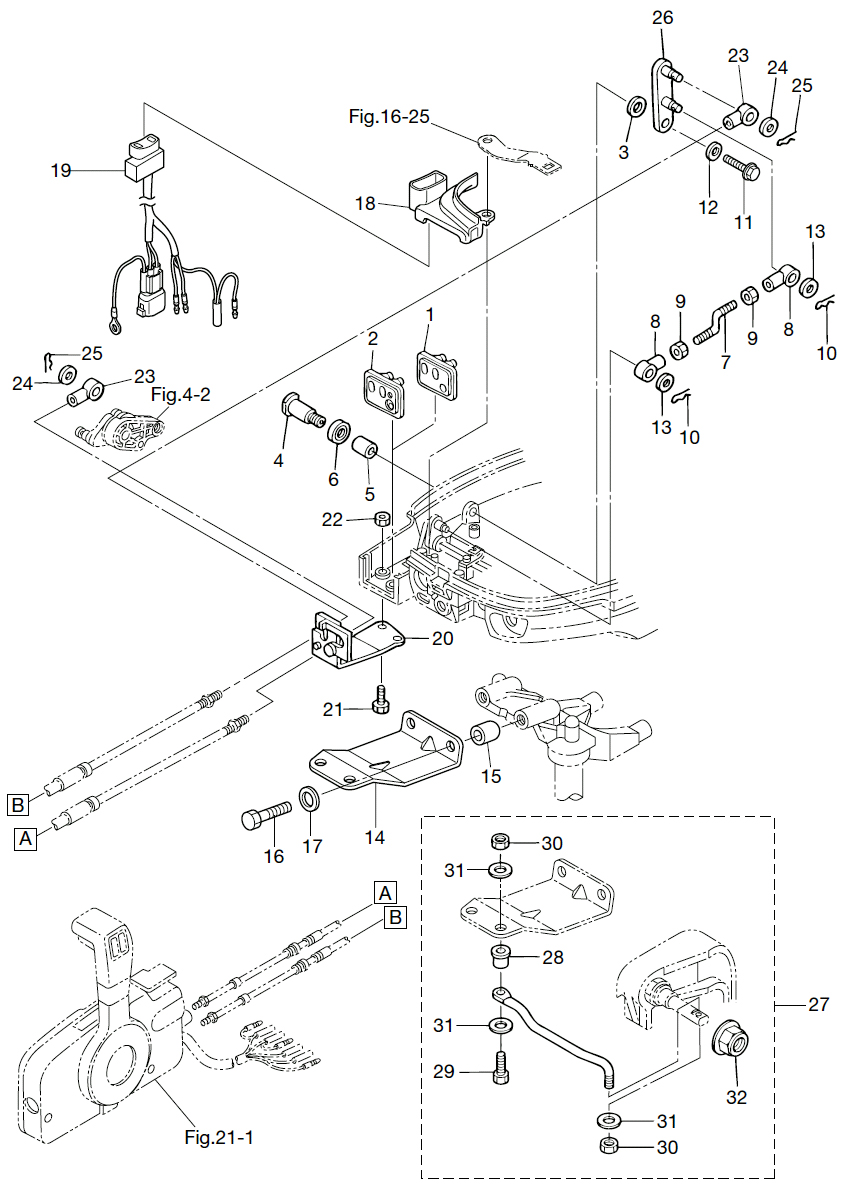

18. REMOTE CONTROL PARTS

Click Here for Microfiche Usage Tip
(1) GROMMET(2) GROMMET(3) WAVE WASHER D=14(4) PIVOT(5) HOOK LEVER BUSHING(6) SEAL RING(7) SHIFT LEVER ROD(8) CABLE JOINT(8) CABLE JOINT(9) NUT(9) NUT(10) SNAP PIN D=8(10) SNAP PIN D=8(11) BOLT(12) WASHER 6.5-21-1(13) WASHER 8.5-18-1.6(13) WASHER 8.5-18-1.6(14) STEERING HOOK PLATE(15) COLLAR 10.1-20-15(16) BOLT(17) WASHER(18) REMOTE CONT CABLE STAY COVER(19) PTT SWITCH ASSY(20) CABLE CLIP ASSY(21) BOLT(22) NUT(23) CABLE JOINT(23) CABLE JOINT(24) WASHER 8.5-18-2.6(24) WASHER 8.5-18-2.6(25) SNAP PIN D=8(25) SNAP PIN D=8(26) SHIFT ARM (REMOTE CONTROL)(27) DRAG LINK ASSY(28) SPACER(29) BOLT 3/8-35(30) NYLON NUT 3/8-24UNF(30) NYLON NUT 3/8-24UNF(31) WASHER9.6-18-2(31) WASHER9.6-18-2(31) WASHER9.6-18-2(32) SEAL RING



Parts List
2012 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A3 :: REMOTE CONTROL PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GROMMET (P TYPE) 3V1837320M 3V1-83732-0 FOR EP $5.61 1
(2) GROMMET 3V2837320M 3V2-83732-0 FOR EPT $6.47 1
(3) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(4) PIVOT 3V1661420M 3V1-66142-0 $20.10 1
(5) BUSHING 369671050M 369-67105-0 $2.07 1
(6) SEAL RING 338671470M 338-67147-0 $1.85 1
(7) SHIFT LEVER ROD 3V1661340M 3V1-66134-0 $5.82 1
(8) CABLE JOINT 3R0837150M 3R0-83715-0 ROD END $2.40 2
(9) NUT 9301030500M 930103-0500 $0.86 2
(10) SNAP PIN D=8 9516030800M 951603-0800 ROD END $0.70 2
(11) BOLT 9101E35612M 910103-5612 $1.07 1
(12) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(13) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 ROD END $2.39 2
(14) STEERING HOOK PLATE 3AA838300M 3AA-83830-0 $28.50 1
(15) COLLAR 10.1-20-15 3AA839130M 3AA-83913-0 $9.99 2
(16) BOLT 9161E31045M 9161E3-1045 $5.89 2
(17) WASHER 9401E31000M 940113-1000 $1.50 2
(18) REMOTE CONT CABLE STAY COVER 3V1Q674830 3V1Q67483-0 FOR EPT $15.73 1
(19) PTT SWITCH ASSY 3V2726150M 3V2-72615-0 FOR EPT $58.24 1
(20) CABLE CLIP 3V1838200M 3V1-83820-0 $25.88 1
(21) BOLT 9101E30616M 9101E3-0616 $0.98 2
(22) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(23) CABLE JOINT 3B7837151M 3B7-83715-1 CABLE END $4.83 2 Sold Out View More Details
(24) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 CABLE END $2.39 2
(25) SNAP PIN D=8 9516030800M 951603-0800 CABLE END $0.70 2
(26) SHIFT ARM (EP) 3V2661280M 3V2-66128-0 MARK 3V2 $4.75 1
(27) DRAG LINK J 3AA849050M 3AA-84905-0 $127.63 1
(28) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(29) BOLT 3/8-35 3C8849640M 3C8-84964-0 $18.38 1
(30) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(31) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(32) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
