16. BOTTOM COWL

Click Here for Microfiche Usage Tip

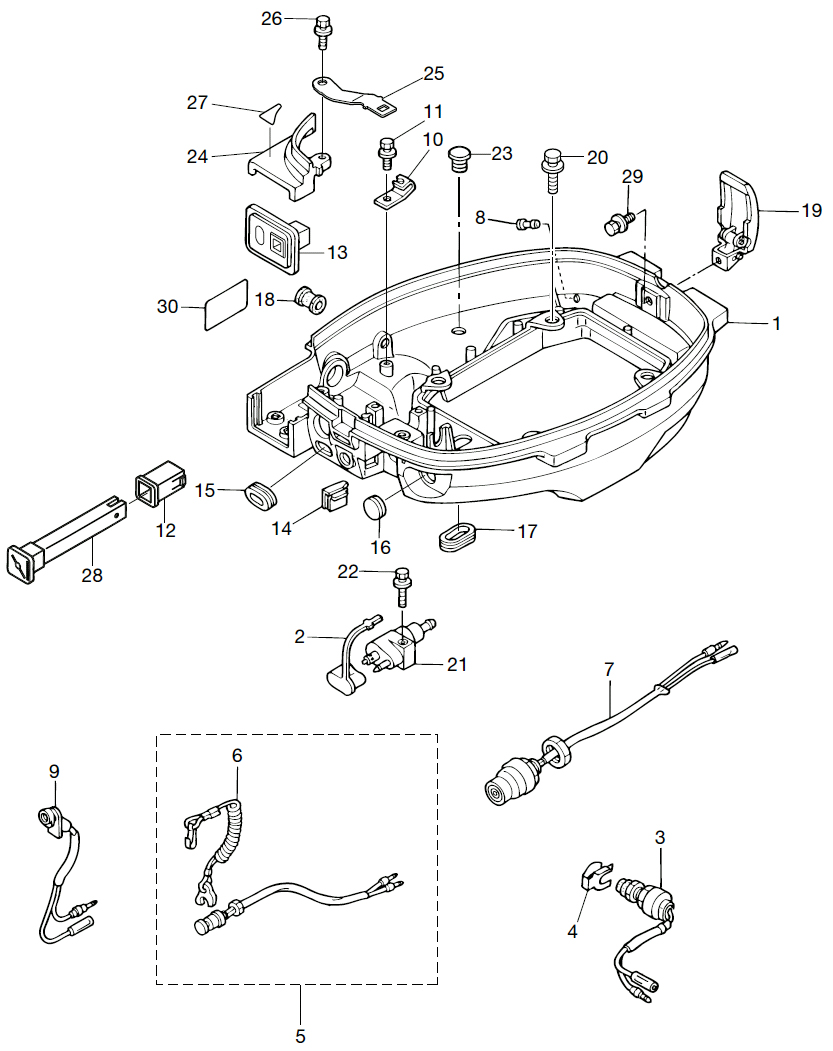

(1) BOTTOM COWL(2) FUEL CONNECTOR PROTECTOR(3) NEUTRAL SWITCH(4) NEUTRAL SWITCH ACTUATOR(5) STOP SWITCH ASSY(6) STOP SWITCH LANYARD ASSY(7) MAIN SWITCH ASSY(8) NIPPLE(9) PILOT LAMP ASSY(9) PILOT LAMP ASSY(10) STARTER LOCK CABLE BRACKET(11) BOLT(12) BUSHING(13) GROMMET(14) GROMMET(15) GROMMET(16) GROMMET 17-2.7(17) GROMMET(18) GROMMET(19) COWL LATCH ASSY(20) BOLT(21) FUEL CONNECTOR (MALE)(22) BOLT(23) SUB-WATER INLET HOSE PLUG(24) SHIFT LEVER BRACKET COVER(25) STAY(26) BOLT(27) SHIFT DECAL (F-N-R)(28) CHOKE ROD(29) BOLT(30) STORAGE DECAL



Parts List
2012 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A3 :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3V2Q671000 3V2Q67100-0 $269.93 1
(2) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(3) NEUTRAL SWITCH 398760800M 398-76080-0 FOR EF/EFT $41.45 1
(4) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF/EFT $4.02 1
(5) STOP SWITCH 398068300M 398-06830-0 $48.44 1
(6) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(7) MAIN SWITCH 3AA760260M 3AA-76026-0 FOR EF/EFT $13.94 1
(8) WATER NIPPLE 3BA011380M 353-01138-0 $2.21 1
(9) WARNING LAMP 3R3710400M 3R3-71040-0 FOR MF/EF & EP $21.44 1
(9) PILOT LAMP ASSY 3Z0710400M 3Z0-71040-0 FOR EFT/EPT $17.53 1
(10) STARTER LOCK CABLE BRACKET 3V1690000M 3V1-69000-0 $5.18 1
(11) BOLT 9101E35612M 910103-5612 $1.07 1
(12) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF/EFT $3.31 1
(13) GROMMET 3Y3636210M 3Y3-63621-0 FOR MF & EF/EFT $11.28 1
(14) GROMMET 3V1636240M 3V1-63624-0 THROTTLE CABLE $2.30 1
(15) BATTERY CABLE GROMMET 3R3671620M 3R3-67162-0 BATTERY CABLE $1.98 1
(16) GROMMET 17-2.7 345671170M 345-67117-0 FOR MF & EP/EPT $2.31 1 Sold Out View More Details
(17) SHIFT ROD GROMMET 3R3662260M 3R3-66226-0 SHIFT ROD $1.44 2
(18) GROMMET 3B2671870M 3B2-67187-0 FOR MF & EF/EFT / THROTTLE SHAFT $3.27 1
(19) COWL LATCH ASSY 3AA671200M 3AA-67120-0 $20.93 1
(20) BOLT 9101E35625M 910113-5625 $1.47 4
(21) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(22) BOLT 9101E35625M 910113-5625 $1.47 1
(23) PLUG 3A3609840M 3A3-60984-0 $2.31 1
(24) SHIFT LEVER BRACKET COVER 3V1Q674810 3V1Q67481-0 $32.81 1
(25) STAY 3Z0761740M 3Z0-76174-0 FOR EFT/EPT $3.46 1
(26) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 1
(27) SHIFT DECAL (F N R) 3Y3675780M 3Y3-67578-0 FOR MF & EF/EFT $2.07 1
(28) CHOKE ROD 3C8671511M 3C8-67151-0 FOR MF & EF/EFT $5.75 1 Sold Out View More Details
(29) BOLT 9101E35612M 910103-5612 $1.07 1
(30) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
