2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

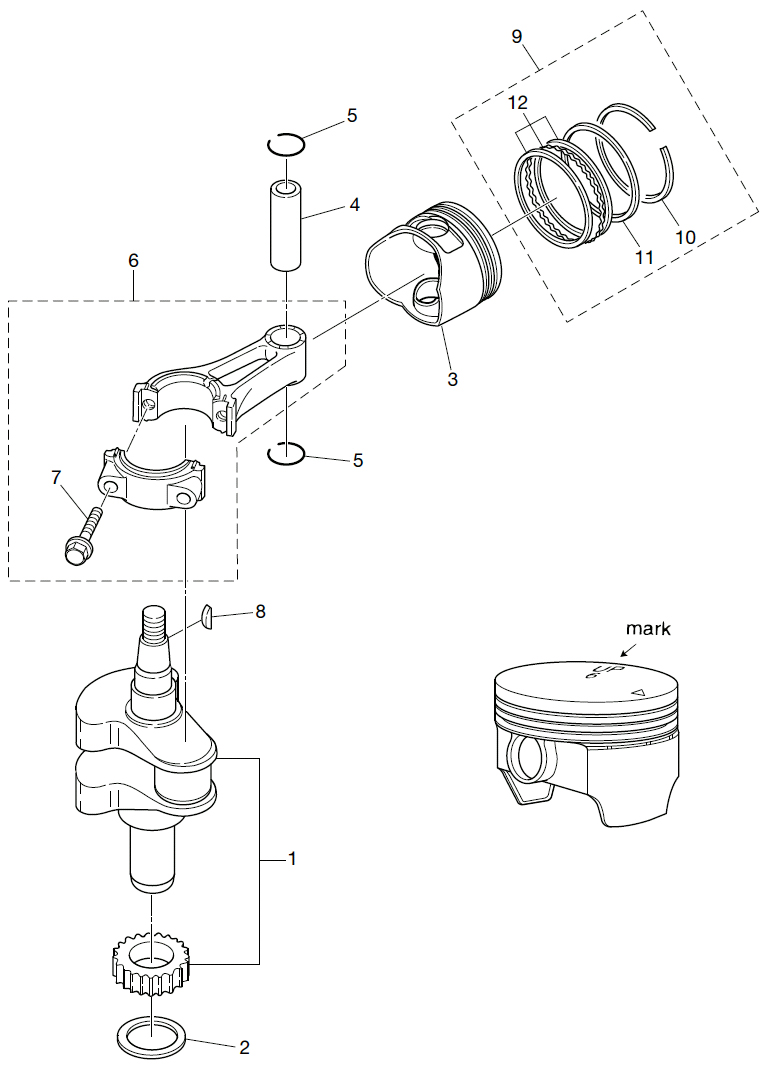

(1) CRANKSHAFT ASSY(2) THRUST PLATE(3) PISTON(3) PISTON (0.5 O/S)(4) PISTON PIN(5) PISTON PIN CLIP(5) PISTON PIN CLIP(6) CONNECTING ROD ASSY(7) CONNECTING ROD BOLT(8) KEY(9) PISTON RING SET(9) PISTON RING SET (0.5 O/S)(10) PISTON RING(10) PISTON RING (0.5 O/S)(11) PISTON RING(11) PISTON RING (0.5 O/S)(12) PISTON RING-OIL(12) PISTON RING-OIL (0.5 O/S)



Parts List
2012 :: 5 HP :: 4 Stroke Nissan NSF5C :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3H6000300M 3H6-00030-0 $183.18 1
(2) WASHER 25.4-36-1 3H6001150M 3H6-00115-0 $1.57 1
(3) PISTON 3R4000013M 3R4-00001-3 $36.49 1
(3) PISTON (0.5 O/S) 3R4000043M 3R4-00004-3 $0.00 1 Sold Out View More Details
(4) PISTON PIN 3AE000210M 3AE-00021-0 $8.63 1
(5) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 2
(6) CONNECTING ROD 3H6000400M 3H6-00040-0 $45.55 1
(7) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(8) MAGNETO KEY 338001310M 338-00131-0 MAGNETO $3.39 1
(9) PISTON RING SET 3JD871230M 3JD-87123-0 STD / MARK 6 $18.69 1
(9) PISTON RING SET (0.5 O/S) 3JD871240M 3JD-87124-0 OPT $19.23 1
(10) PISTON RING TOP 3H6000110M 3H6-00011-0 STD 1ST $10.41 1
(10) PISTON RING TOP (0.5MM O/S) 3H6000140M 3H6-00014-0 OPT 1ST $7.62 1
(11) PISTON RING 2ND 3H6000120M 3H6-00012-0 STD 2ND $6.27 1
(11) PISTON RING 2ND (0.5MM O/S) 3H6000150M 3H6-00015-0 OPT 2ND $7.62 1
(12) PISTON RING OIL 3H6000130M 3H6-00013-0 STD OIL $8.47 1
(12) PISTON RING OIL (0.5MM O/S) 3H6000160M 3H6-00016-0 OPT OIL $7.62 1
