16. OPTIONAL PARTS (2) ACCESSORIES

Click Here for Microfiche Usage Tip

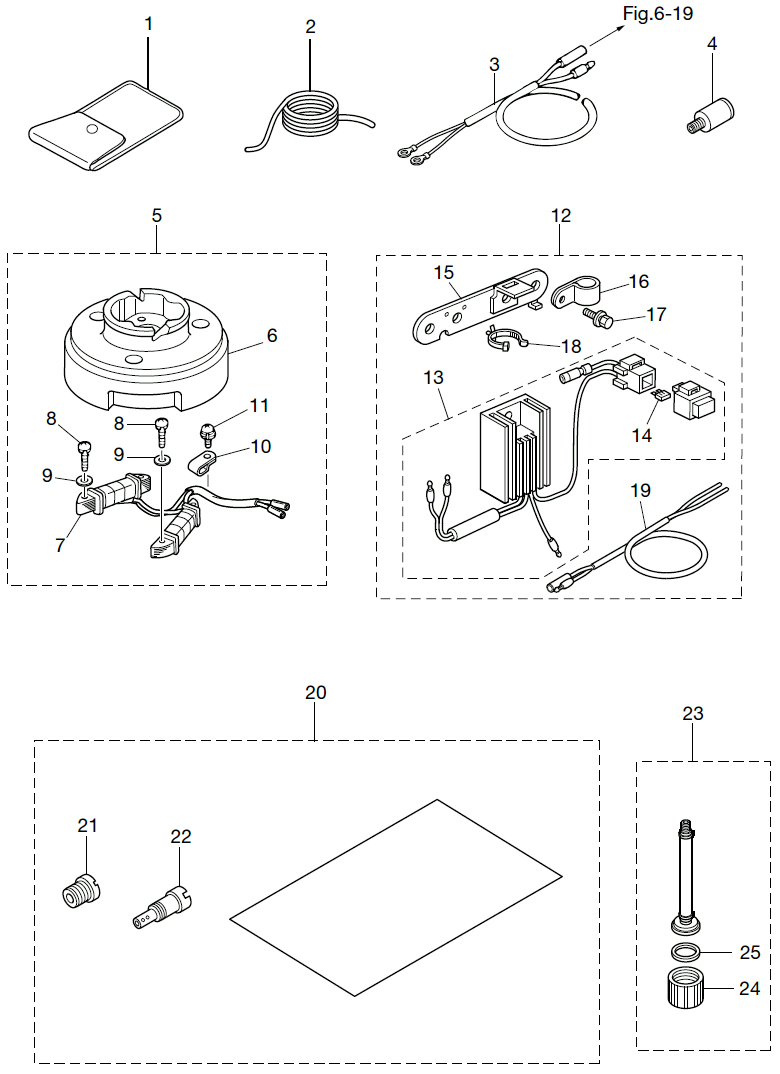

(1) TOOL KIT(2) SAFETY ROPE o4-1000(3) BATTERY CABLE L=1716(4) FLUSHING PLUG(5) ALTERNATOR KIT(6) FLYWHEEL(7) ALTERNATOR ASSY(8) SCREW(8) SCREW(9) WASHER(9) WASHER(10) CLAMP 4.2-3-8(11) SCREW(12) RECTIFIER KIT(13) RECTIFIER COMPLETE(14) FUSE 10A(15) ELECTRIC BRACKET ASSY(16) CLAMP 6.5-14L(17) BOLT(18) BAND 135(19) EXTENSION CORD(20) ALTITUDE ADJUSTMENT KIT(21) MAIN JET (#60)(22) SLOW JET (#35)(23) FLUSHING ATTACHMENT ASSY(24) JOINT(25) SEAL RING



Parts List
2012 :: 4 HP :: 4 Stroke Tohatsu MFS4C :: OPTIONAL PARTS (2) ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(2) ROPE 312722010M 312-72201-0 $3.00 1
(3) BATTERY CABLE L=1716 399761300M 399-76130-0 FOR SAIL PRO $39.77 0
(4) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
(5) ALTERNATOR KIT 3GR061280M 3GR-06128-0 $256.69 1
(6) FLYWHEEL CUP MFS54 (MARK 50) 3AS060010M 3AS-06001-0 USE ALTERNATER $175.63 1
(7) ALTERNATOR ASSY 3GR060230M 3GR-06023-0 12V60W $76.04 1
(8) SCREW 9215030525M 921503-0525 $0.90 4
(9) WASHER 9401030500M 940103-0500 $0.53 4
(10) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.31 1
(11) SCREW 9215216408M 921521-6408 $0.63 1
(12) RECTIFIER KIT 3GR761600M 3GR-76160-0 USE ALTERNATOR KIT $149.99 1
(13) RECTIFIER COMPLETE 3GR760600M 3GR-76060-0 $123.60 1
(14) FUSE 10A 3GR762460M 3GR-76246-0 $4.00 1
(15) ELECTRIC BRACKET ASSY 3GR069000M 3GR-06900-0 $17.43 1 Sold Out View More Details
(16) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(17) BOLT 9101035614M 910113-5614 $1.07 2
(18) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 1
(19) EXTENSION CORD 369761610M 369-76161-0 $11.02 1
(20) ALTITUDE ADJUSTMENT KIT 3JD102300M 3JD-10230-0 4PS / HIGH ALTITUDE $22.41 1
(21) MAIN JET #60 3H9032510M 3H9-03251-0 4PS / HIGH ALTITUDE $8.11 1
(22) SLOW JET #35 3R6032540M 3R6-03254-0 HIGH ALTITUDE $7.59 1
(23) FLUSHING ATTACHMENT ASSY 3GR724060M 3GR-72406-0 $28.52 1 Sold Out View More Details
(24) JOINT 3GR702120M 3GR-70212-0 $7.82 1
(25) SEAL RING 3T1671470M 3T1-67147-0 $6.76 1
