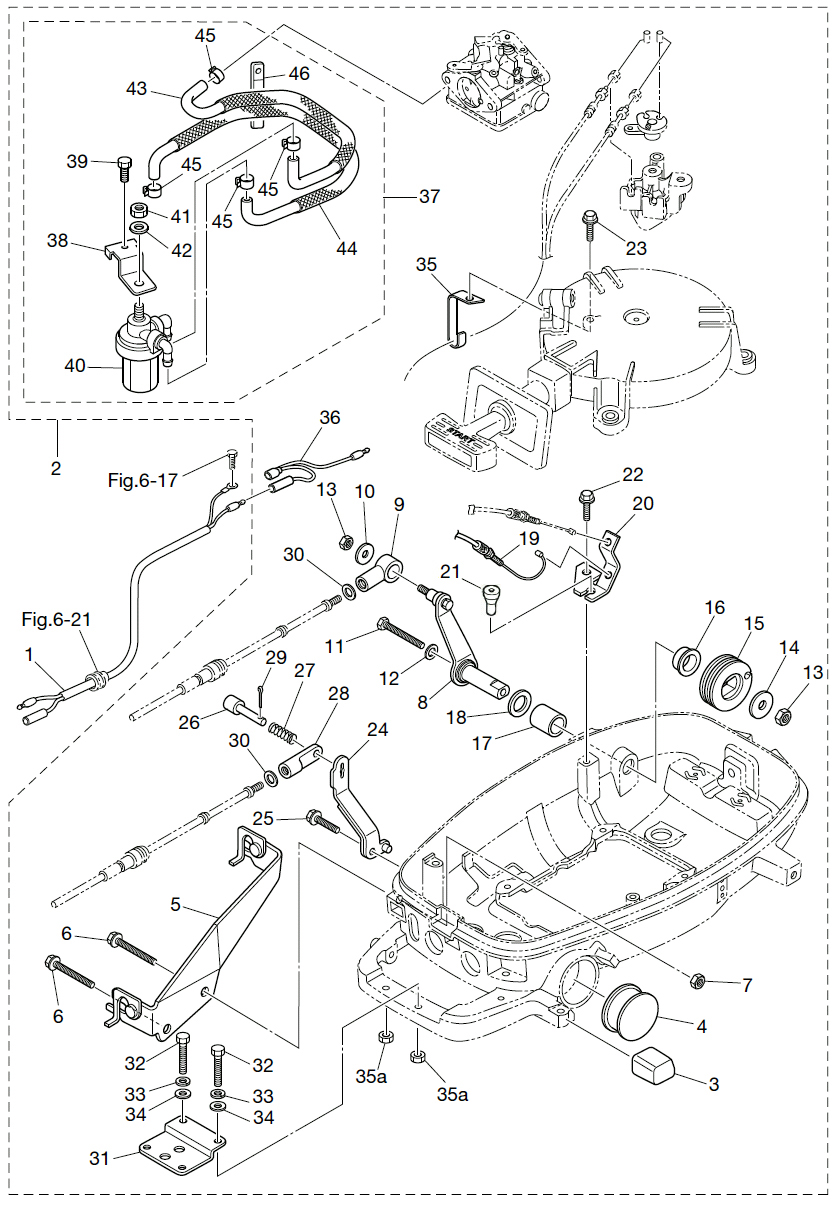

14. OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)

Click Here for Microfiche Usage Tip
(1) REMOTE CONTROL STOP CORD L=2000(1) REMOTE CONTROL STOP CORD L=3200(1) REMOTE CONTROL STOP CORD L=3900(1) REMOTE CONTROL STOP CORD L=5900(2) REMOTE CONTROL FITTING ASSY(3) GROMMET(4) GROMMET 43-23(5) CABLE CLIP ASSY(6) BOLT(6) BOLT(7) NUT(8) THROTTLE LEVER (REMOTE CONT)(9) CABLE JOINT(10) WASHER 6.5-21-1(11) BOLT(12) SPRING WASHER(13) NYLON NUT 6-P1.0(13) NYLON NUT 6-P1.0(14) WASHER 6.5-23-1.5(15) THROTTLE DRUM(16) BUSHING 14-15.8-7(17) HOOK LEVER BUSHING(18) SEAL RING(19) THROTTLE WIRE (REMOTE CONTROL)(20) THROTTLE WIRE BRACKET(21) GROMMET(22) BOLT(23) PRE-COATED BOLT 6-25(24) SHIFT LEVER (REMOTE CONTROL)(25) PRE-COATED BOLT 6-16(26) PIN(27) SPRING(28) CABLE JOINT(29) SPRING PIN(30) WASHER 5.5-14-1.2(30) WASHER 5.5-14-1.2(31) STEERING HOOK PLATE(32) BOLT(32) BOLT(33) SPRING WASHER(33) SPRING WASHER(34) WASHER(34) WASHER(35) CABLE HOLDER(35A) NYLON NUT 8-P1.25(35A) NYLON NUT 8-P1.25(36) SEPARATE CORD(37) FUEL FILTER KIT(38) STAY(39) BOLT(40) FUEL FILTER ASSY(41) NUT(42) WASHER(43) FUEL HOSE W/PROTECTOR 25-193-30(44) FUEL HOSE W/PROTECTOR 25-315-25(45) CLIP o9.4(45) CLIP o9.4(45) CLIP o9.4(45) CLIP o9.4(46) CLAMP 6.5-87P



Parts List
2012 :: 4 HP :: 4 Stroke Tohatsu MFS4C :: OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) R.C. STOP CORD 2.0M (6.6 FEET) 369838460M 369-83846-0 $0.00 1 Sold Out View More Details
(1) R.C. STOP CORD 3.2M (10.5 FEET) 369838480M 369-83848-0 $64.41 1
(1) R.C. STOP CORD 3.9M (12.8 FEET) 369838530M 369-83853-0 $71.35 1 Sold Out View More Details
(1) R.C. STOP CORD 5.9M (19.4 FEET) 369838580M 369-83858-0 $99.14 1 Sold Out View More Details
(2) REMOTE CONTROL FITTING ASSY 3GR838800M 3GR-83880-0 $329.30 1
(3) GROMMET 3JK671610M 3JK-67161-0 $25.44 1 Sold Out View More Details
(4) GROMMET 43-23 3H6671610M 3H6-67161-0 $6.74 1
(5) CABLE CLIP ASSY 3GR838200M 3GR-83820-0 $135.70 1
(6) BOLT 9101036640M 910103-6640 $1.44 2
(7) NUT 9301030600M 930113-0600 $0.84 1
(8) THROTTLE LEVER (REMOTE CONT) 3GR839100M 3GR-83910-0 $0.00 1 Sold Out View More Details
(9) CABLE JOINT 3R0837150M 3R0-83715-0 $2.40 1
(10) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(11) BOLT 9101030660M 910103-0660 $1.53 1
(12) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(13) NYLON NUT 6-P 1.0 9304030600M 930403-0600 $2.25 2
(14) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(15) THROTTLE DRUM 3JD636110M 3JD-63611-0 $4.55 1
(16) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(17) BUSHING 369671050M 369-67105-0 $2.07 1
(18) SEAL RING 338671470M 338-67147-0 $1.85 1
(19) THROTTLE WIRE (REMOTE CONTROL) 3GR838730M 3GR-83873-0 $0.00 1 Sold Out View More Details
(20) THROTTLE WIRE BRACKET 3GR635080M 3GR-63508-0 $10.27 1
(21) GROMMET 3GR043170M 3GR-04317-0 $0.00 1 Sold Out View More Details
(22) BOLT 9101035614M 910113-5614 $1.07 1
(23) BOLT 6-25 PRE-COATED 3AD068640M 3AD-06864-0 $1.50 1
(24) SHIFT LEVER (REMOTE CONTROL) 3GR661290M 3GR-66129-0 $108.24 1
(25) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 $1.43 1
(26) LOCK PIN 332837280M 332-83728-0 $12.61 1
(27) LOCK PIN SPRING 332837290M 332-83729-0 $1.61 1
(28) CABLE JOINT 369837151M 369-83715-1 $4.83 1
(29) SPRING PIN 9514030220M 951403-0220 $0.42 1
(30) WASHER 5.5-14-1.2 332837250M 332-83725-0 $0.97 2
(31) STEERING HOOK PLATE 369838302M 369-83830-2 $12.20 1
(32) BOLT 9101030830M 910103-0830 $1.38 2
(33) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(34) WASHER 9401030800M 940113-0800 $0.84 2
(35) CABLE HOLDER 3JK635050M 3JK-63505-0 $6.62 1
(35A) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
(36) SEPARATE CORD 3AS838830M 3AS-83883-0 $0.00 1 Sold Out View More Details
(37) FUEL FILTER KIT 3GR022170M 3GR-02217-0 $126.76 1
(38) STAY 3GR637370M 3GR-63737-0 $7.82 1
(39) BOLT 9101035610M 910103-5610 $1.02 1
(40) FUEL FILTER 346022300M 346-02230-0 $21.10 1
(41) NUT 9301030800M 930103-0800 $1.99 1
(42) WASHER 9401210800M 940121-0800 $0.37 1
(43) FUEL HOSE W/PROTECTOR 25-193-30 3LE021600M 3LE-02160-0 LOW PERMEATION PARTS / EPA-KRI-15G USA $24.15 1
(44) FUEL HOSE W/PROTECTOR 25-315-25 3JD021600M 3JD-02160-0 LOW PERMEATION PARTS / EPA-KRI-15G USA $30.18 1
(45) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 4
(46) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 1
