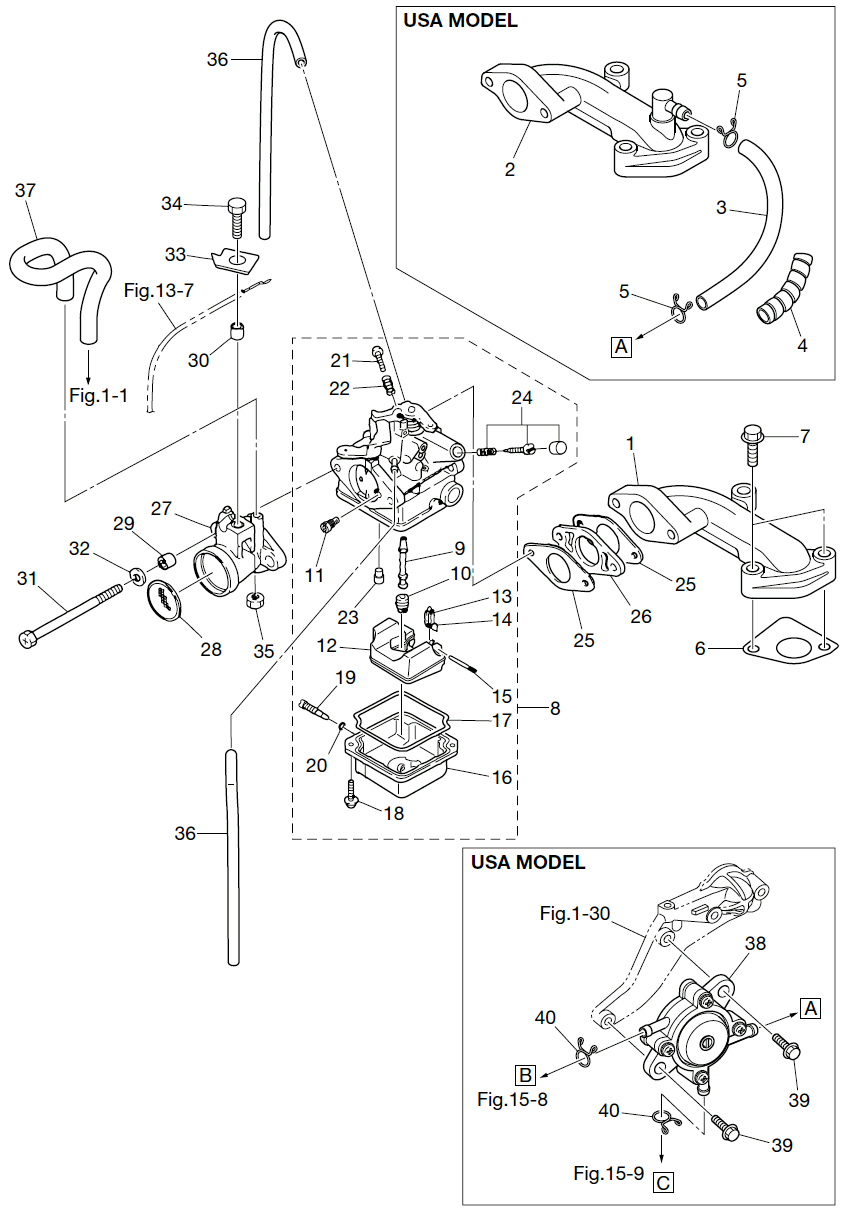

4. INTAKE MANIFOLD & CARBURETOR

Click Here for Microfiche Usage Tip
(1) INTAKE MANIFOLD(2) INTAKE MANIFOLD ASSY(3) HOSE(4) SPIRAL TUBE PROTECTOR o10-100(5) CLIP o12(5) CLIP o12(6) INTAKE MANIFOLD GASKET(7) BOLT(8) CARBURETOR ASSY(9) MAIN NOZZLE(10) MAIN JET (#68)(11) SLOW AIR JET (#115)(12) FLOAT(13) FLOAT VALVE(14) CLIP(15) FLOAT ARM PIN(16) FLOAT CHAMBER(17) FLOAT CHAMBER O-RING(18) SCREW(19) DRAIN SCREW(20) O-RING(21) STOP SCREW(22) SPRING(23) RUBBER CAP(24) PILOT SCREW(25) CARBURETOR GASKET(25) CARBURETOR GASKET(26) INSULATOR(27) INTAKE SILENCER(28) FLAME ARRESTER(29) COLLAR 6.2-9-7.4(30) COLLAR 6.2-9-7(31) BOLT(32) WASHER(33) CABLE HOLDER(34) BOLT(35) NUT(36) HOSE(36) HOSE(37) BREATHER HOSE(38) FUEL PUMP ASSY(39) BOLT(39) BOLT(40) CLIP o10(40) CLIP o10



Parts List
2012 :: 3.5 HP :: 4 Stroke Nissan NSF3.5B :: INTAKE MANIFOLD & CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3BRB020911 3BRB02091-1 STD $61.01 1
(2) INTAKE MANIFOLD ASSY 3GTB020100 3GTB02010-0 NIPPLE / FOR USA MODEL $75.45 1
(3) HOSE 98AB70185M 98AB-70-185 FOR USA MODEL / 98AB-701000 $13.44 1
(4) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 FOR USA MODEL $6.21 1
(5) CLIP ø 12 3C7022150M 3C7-02215-0 FOR USA MODEL $1.41 2
(6) INTAKE MANIFOLD GASKET 3AB021040M 3AB-02104-0 $3.36 1
(7) BOLT 9101F45630M 9101F4-5630 $1.21 2
(8) CARBURETOR ASSY 3GV032000M 3BR-03200-0 3.5PS / MARK 3CVA $125.19 1
(9) MAIN NOZZLE 3R4032520M 3R4-03252-0 3.5PS $14.35 1
(10) MAIN JET #68 3AU044680M 3AU-04468-0 3.5PS $8.05 1
(11) SLOW AIR JET (#115) 3GT049150M 3GT-04915-0 2/3.5PS $9.72 1
(12) FLOAT 3GT032310M 3GT-03231-0 $25.24 1
(13) FLOAT VALVE 3H6032400M 3H6-03240-0 $10.17 1
(14) CLIP 3H6032440M 3H6-03244-0 $3.04 1
(15) FLOAT ARM PIN 3H6032320M 3H6-03232-0 $2.14 1
(16) FLOAT CHAMBER 3GT032210M 3GT-03221-0 $0.00 1 Sold Out View More Details
(17) FLOAT CHAMBER GASKET 3H6032220M 3H6-03222-0 $5.93 1
(18) SCREW 9225036412M 922503-6412 $1.47 2
(19) DRAIN SCREW 3H6032920M 3H6-03292-0 $3.55 1
(20) DRAIN SCREW O-RING 3H6032930M 3H6-03293-0 $1.79 1
(21) STOP SCREW 3AB032650M 3AB-03265-0 $5.58 1
(22) STOP SCREW SPRING 3H6032670M 3H6-03267-0 $1.18 1
(23) RUBBER CAP 3GT032560M 3GT-03256-0 $6.24 1
(24) PILOT SCREW 3AB032660M 3AB-03266-0 2/3.5PS $11.09 1
(25) CARBURETOR GASKET 3H6020110M 3H6-02011-0 $1.93 2
(26) INSULATOR 3H6039521M 3H6-03952-1 $2.10 1
(27) INTAKE SILENCER 3H6024110M 3H6-02411-0 $5.11 1
(28) FLAME ARRESTER 3H6026030M 3H6-02603-0 $2.91 1
(29) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(30) COLLAR 6.2-9-7 3H6760791M 3A0-76079-0 $1.79 1
(31) BOLT 9161F10685M 9161F1-0685 $1.73 2
(32) WASHER 9401030600M 940103-0600 $0.70 2
(33) CABLE HOLDER 3H6635050M 3H6-63505-0 $2.08 1
(34) BOLT 9101030616M 910113-0616 $0.98 1
(35) NUT 9301030600M 930113-0600 $0.84 1
(36) RUBBER HOSE 98AB30230M 98AB-3-0230 98AB-301000 $10.72 2
(37) BREATHER HOSE 3AB074350M 3AB-07435-0 $8.12 1
(38) FUEL PUMP ASSY 3GT040000M 3GT-04000-0 FOR USA MODEL $56.87 1
(39) BOLT 9101E35620M 910113-5620 FOR USA MODEL $1.30 2
(40) CLIP ø10 338022150M 338-02215-0 FOR USA MODEL $1.41 2
