9. SHIFT

Click Here for Microfiche Usage Tip

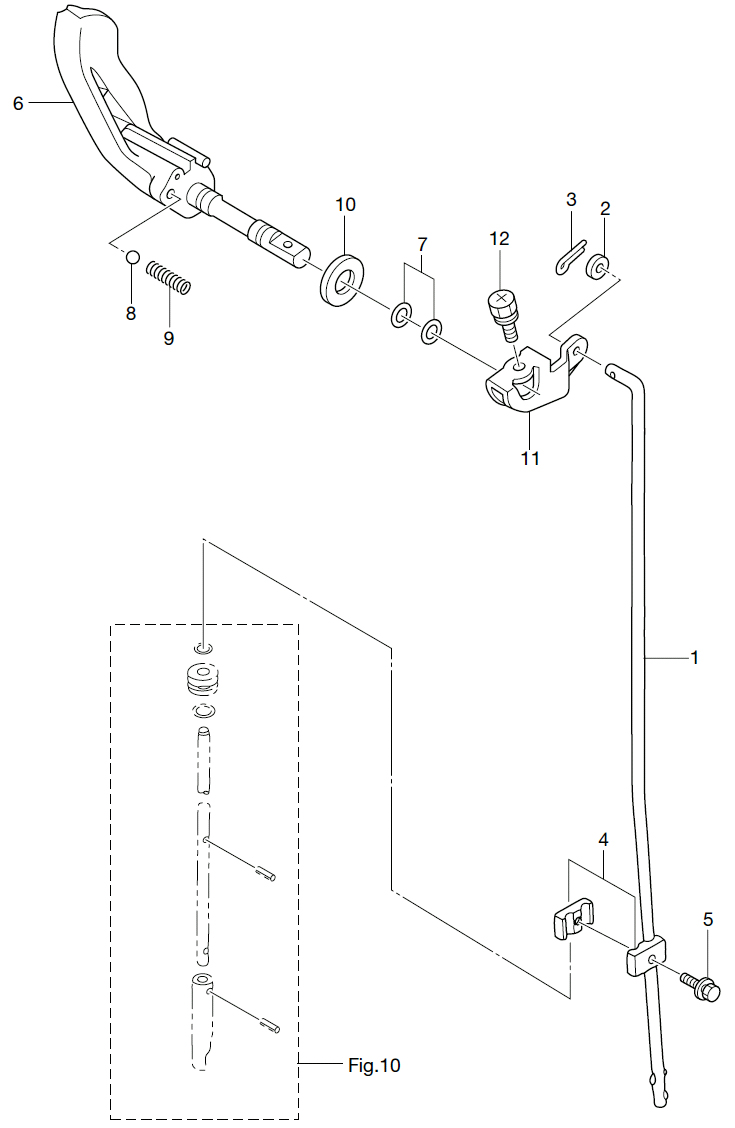

(1) SHIFT ROD (S)(2) WASHER(3) SPLIT PIN 2-12(4) SHIFT ROD JOINT ASSY(5) BOLT(6) SHIFT LEVER SHAFT ASSY(7) O-RING 1.9-6.8(8) CERAMIC BALL7.7(9) SPRING(10) WASHER 10.5-18-1.5(11) SHIFT ROD LEVER(12) BOLT



Parts List
2012 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT ROD 3AB662140M 3AB-66214-0 $27.97 1
(2) WASHER 9401030600M 940103-0600 $0.70 1
(3) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(4) SHIFT ROD JOINT 369662410M 369-66241-0 $9.20 1
(5) BOLT 9101035616M 910103-5616 $1.15 1
(6) SHIFT LEVER 3AB661300M 3AB-66130-0 $38.27 1
(7) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(8) CERAMIC BALL 7.7 369661160M 369-66116-0 $1.85 1
(9) SPRING 369661121M 369-66112-1 $1.61 1
(10) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(11) SHIFT ROD LEVER 3AB662250M 3AB-66225-0 $4.52 1
(12) BOLT 9109036512M 910903-6512 $1.04 1
