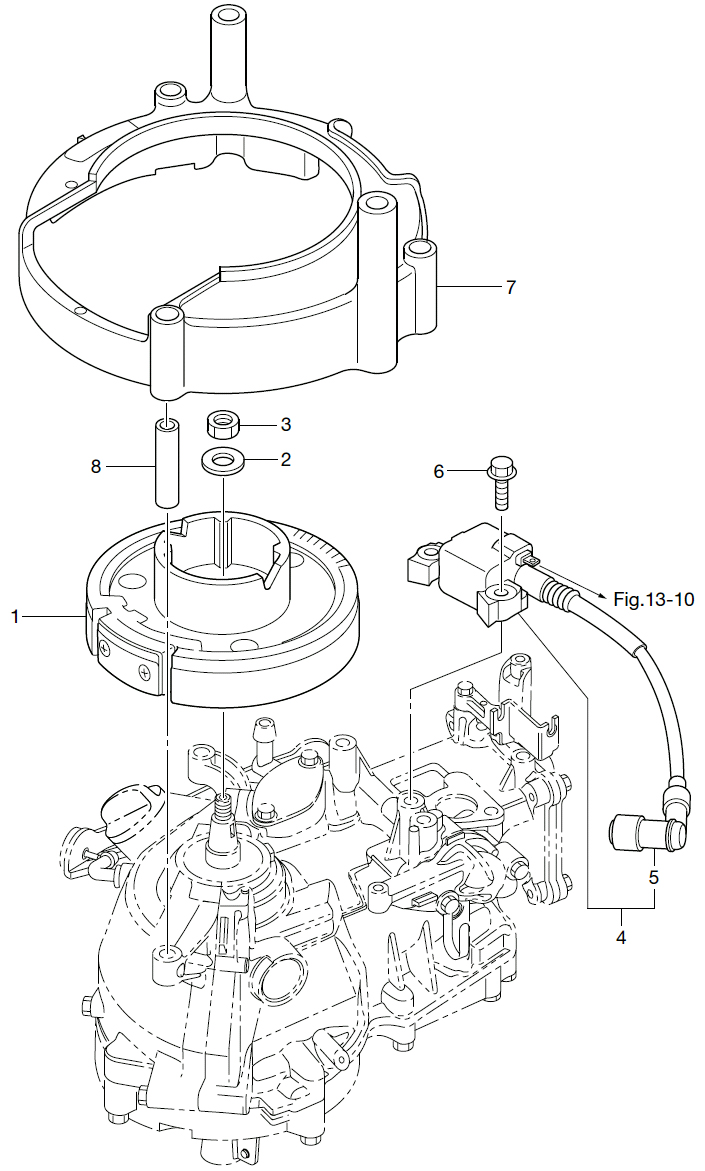

7. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL(2) WASHER(3) NUT 10-P1.25(4) IGNITER W/R-CAP(5) PLUG CAP W/RESISTANCE(6) BOLT(7) RING GEAR COVER ASSY(8) COLLAR 6.2-9-35



Parts List
2012 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3GT060010M 3GT-06001-0 MARK MF5494 $0.00 1 Sold Out View More Details
(2) WASHER 9401211000M 940121-1000 $0.49 1
(3) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 MAGNETO $1.61 1
(4) IGNITER W/R-CAP 3GT060410M 3GT-06041-0 MARK IU3123 $110.95 1
(5) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(6) BOLT 9101035625M 910103-5625 $1.47 2
(7) RING GEAR COVER ASSY 3AB063001M 3AB-06300-1 $0.00 1 Sold Out View More Details
(8) COLLAR 6.2-9-35 3AB063031M 3AB-06303-1 $4.38 3 Sold Out View More Details
