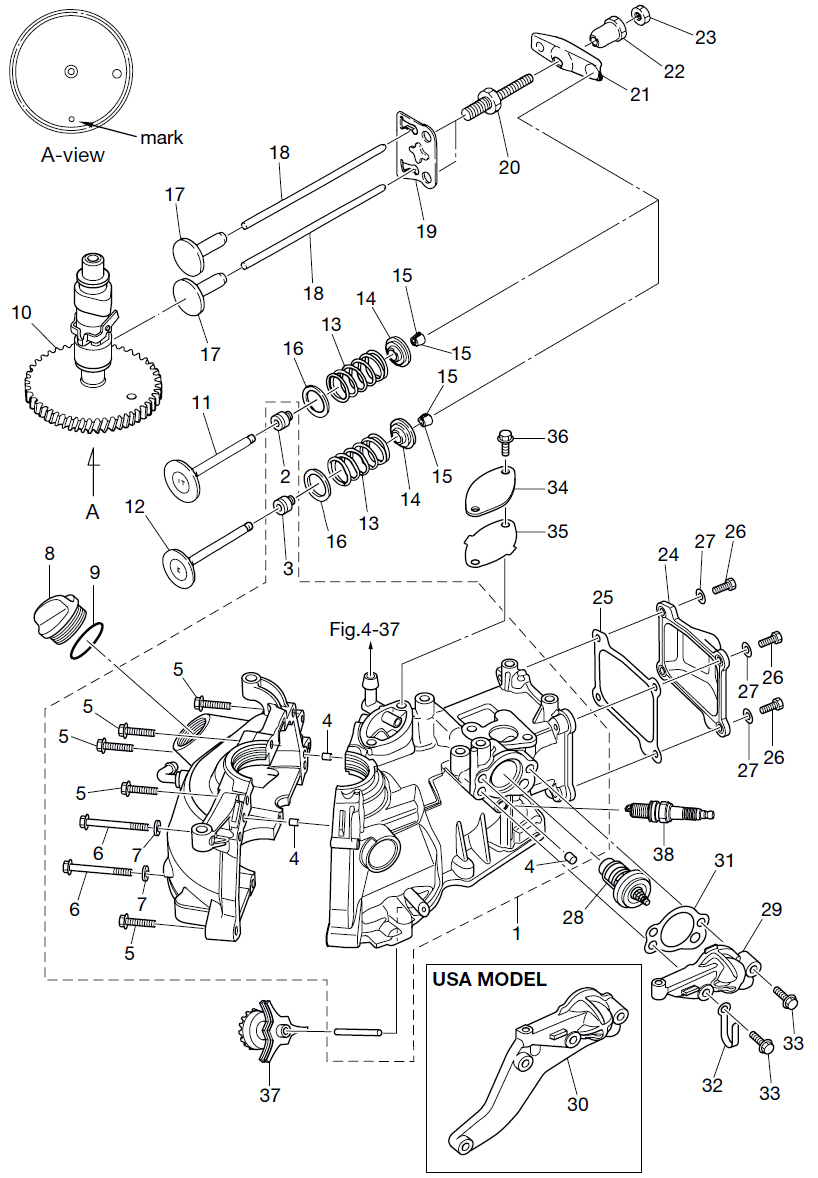

1. CYLINDER & CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYL BLOCK & CRANKCASE ASSY(2) INTAKE VALVE STEM SEAL(3) EXHAUST VALVE STEM SEAL(4) DOWEL PIN 6-12(4) DOWEL PIN 6-12(4) DOWEL PIN 6-12(5) BOLT(5) BOLT(5) BOLT(5) BOLT(5) BOLT(6) BOLT(6) BOLT(7) WASHER(7) WASHER(8) OIL FILLER CAP(9) O-RING 3.1-24.4(10) CAMSHAFT ASSY(11) INTAKE VALVE(12) EXHAUST VALVE(13) VALVE SPRING L=35(13) VALVE SPRING L=35(14) RETAINER(14) RETAINER(15) COTTER(15) COTTER(15) COTTER(15) COTTER(16) VALVE SPRING SEAT(16) VALVE SPRING SEAT(17) LIFTER(17) LIFTER(18) PUSH ROD(18) PUSH ROD(19) PLATE(20) PIVOT BOLT(21) ROCKER ARM(22) PIVOT(23) ADJUSTING NUT(24) CYLINDER HEAD COVER(25) CYLINDER HEAD COVER GASKET(26) BOLT(26) BOLT(26) BOLT(27) WASHER 6-16-1.5(27) WASHER 6-16-1.5(27) WASHER 6-16-1.5(28) THERMOSTAT(29) THERMOSTAT CAP(30) THERMOSTAT CAP(31) THERMOSTAT CAP GASKET(32) CLAMP 6.5-67P(33) BOLT(33) BOLT(34) BREATHER CHAMBER COVER(35) GASKET(36) BOLT(37) SLINGER(38) SPARK PLUG (DCPR6E)



Parts List
2012 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: CYLINDER & CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3GTB011002 3GTB01100-2 NIPPLE $0.00 1 Sold Out View More Details
(2) INTAKE VALVE STEM SEAL 3R3072040M 3R3-07204-0 BLACK $2.59 1
(3) EXHAUST VALVE STEM SEAL 3R3072060M 3R3-07206-0 GREEN $2.59 1 Sold Out View More Details
(4) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 3
(5) BOLT 9101F45635M 9101F4-5635 $1.96 6 Sold Out View More Details
(6) BOLT 9161F90675M 916119-0675 $0.00 2 Sold Out View More Details
(7) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(8) OIL FILLER CAP 3R0710151M 3R0-71015-0 $3.31 1
(9) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(10) CAMSHAFT ASSY 3GT078100M 3GT-07810-0 $97.07 1
(11) INTAKE VALVE 3AB072010M 3AB-07201-0 $18.13 1
(12) EXHAUST VALVE 3V1072020M 3V1-07202-0 $18.70 1
(13) VALVE SPRING 3AE072030M 3AE-07203-0 $3.43 2
(14) RETAINER 3V1072210M 3V1-07221-0 $4.03 2
(15) COTTER 3H6072230M 3H6-07223-0 $2.48 4
(16) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 2
(17) LIFTER 3AB072310M 3AB-07231-0 $5.21 2 Sold Out View More Details
(18) PUSH ROD 3H6072320M 3H6-07232-0 $3.63 2
(19) PUSH ROD PLATE 3AB072330M 3AB-07233-0 $0.00 1 Sold Out View More Details
(20) PIVOT BOLT 3H6072340M 3H6-07234-0 $1.71 2
(21) ROCKER ARM 3AB072350M 3AB-07235-0 $5.73 2
(22) ROCKER ARM PIVOT 3H6072360M 3H6-07236-0 $3.82 2
(23) ADJUSTING NUT 3H6079370M 3H6-07237-0 $1.11 2
(24) CYLINDER HEAD COVER 3ABB010210 3ABB01021-0 $33.81 1
(25) CYLINDER HEAD COVER GASKET 3AB010241M 3AB-01024-0 $5.58 1
(26) BOLT 9101210616M 910121-0616 $0.98 4
(27) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(28) THERMOSTAT 3H6010300M 3H6-01030-0 MARK 52B PRV $32.67 1
(29) THERMOSTAT CAP 3ABB010310 3ABB01031-0 STD $36.78 1
(30) THERMOSTAT CAP 3GTB010310 3GTB01031-0 FOR USA MODEL $12.36 1
(31) THERMOSTAT CAP GASKET 3AB010320M 3AB-01032-0 $2.31 1
(32) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(33) BOLT 9101E35630M 9101E3-5630 $1.15 2 Sold Out View More Details
(34) BREATHER CHAMBER COVER 3AB074310M 3AB-07431-0 $2.74 1 Sold Out View More Details
(35) BREATHER CHAMBER COVER GASKET 3AB074320M 3AB-07432-0 $2.16 1
(36) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 2
(37) SLINGER 3AB076400M 3AB-07640-0 $3.27 1
(38) SPARK PLUG 970111103M 9701-1-1103 NGK $6.50 1
