19. MANUAL TILT (M MODEL)

Click Here for Microfiche Usage Tip

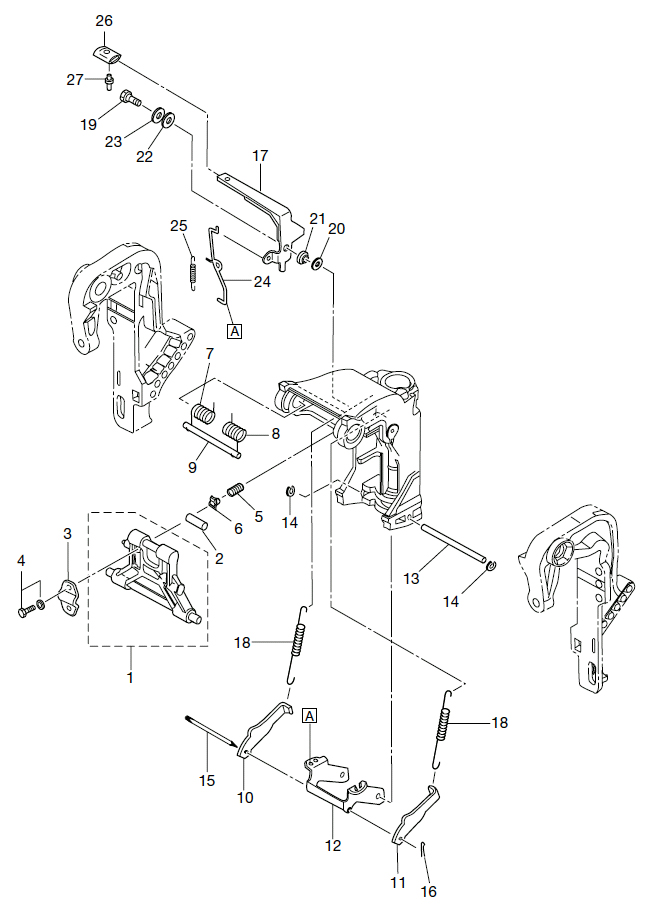

(1) TILT STOPPER ASSY(2) BUSHING 10.2-12-29.5(3) SETTING PLATE(4) BOLT(5) FRICTION SPRING(6) SETTING PIECE TILT STOPPER(7) TILT ASSISTANT SPRING (R)(8) TILT ASSISTANT SPRING (L)(9) TILT ASSISTANT SHAFT(10) REVERSE LOCK (L)(11) REVERSE LOCK (R)(12) REVERSE LOCK ARM(13) REVERSE LOCK SHAFT(14) E-RING D=6(14) E-RING D=6(15) REVERSE LOCK ROD(16) SPLIT PIN(17) TILT STOPPER LEVER(18) REVERSE LOCK SPRING (L)(18) REVERSE LOCK SPRING (L)(18) REVERSE LOCK SPRING (S)(18) REVERSE LOCK SPRING (S)(19) SHOULDER BOLT 6-8(20) WASHER 6-16-1.5(21) BUSHING(22) WASHER 8.5-18-1.6(23) WASHER(24) LINK B(25) SPRING B(26) REVERSE LOCK LEVER GRIP(27) STOPPER REVERSE LOCK LEVER GRIP



Parts List
2011 :: 50 HP :: TLDI Nissan NSD50B2 :: MANUAL TILT (M MODEL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILT STOPPER ASSY 3C8Q624310 3C8Q62431-0 $41.18 1
(2) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.85 1
(3) TILT STOPPER SETTING PLATE 346624391M 346-62439-0 $6.90 1
(4) BOLT 9101E35820M 9101E3-5820 $1.71 2
(5) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(6) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(7) TILT ASSISTANT SPRING R 3E3621410M 3C8-62142-0 $34.51 1
(8) TILT ASSISTANT SPRING L 3E3621420M 3C8-62141-0 $34.51 1
(9) TILT ASSISTANT SHAFT 3C8621430M 3C8-62143-0 $15.87 1
(10) REVERSE LOCK L 3C8663522M 3C8-66352-2 $14.70 1
(11) REVERSE LOCK R 3C8663512M 3C8-66351-2 $14.70 1
(12) REVERSE LOCK ARM 3C8663134M 3C8-66313-4 $15.62 1
(13) REVERSE LOCK SHAFT 3C8663191M 3C8-66319-1 $5.98 1
(14) E-RING D=6 9453030600M 945303-0600 $0.83 2
(15) REVERSE LOCK ROD 3C8663210M 3C8-66321-0 $5.69 1
(16) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(17) TILT STOPPER LEVER 3E3624361M 3E3-62436-0 $16.54 1
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L $12.88 2
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L $12.88 2
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(19) SHOULDER BOLT 6-8 3AL052540M 3AL-05254-0 $10.03 1
(20) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1
(21) BUSHING 8.1-20 3AL052120M 3AL-05212-0 $1.64 1
(22) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 1
(23) WASHER 9401030800M 940113-0800 $0.84 1
(24) LINK B 3C8663181M 3C8-66318-1 $7.34 1
(25) SPRING B 3C8663360M 3C8-66336-0 $5.98 1
(26) GRIP LOCK LEVER 346663330M 346-66333-0 $4.83 1
(27) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
