25. ASSEMBLY & KITS

Click Here for Microfiche Usage Tip

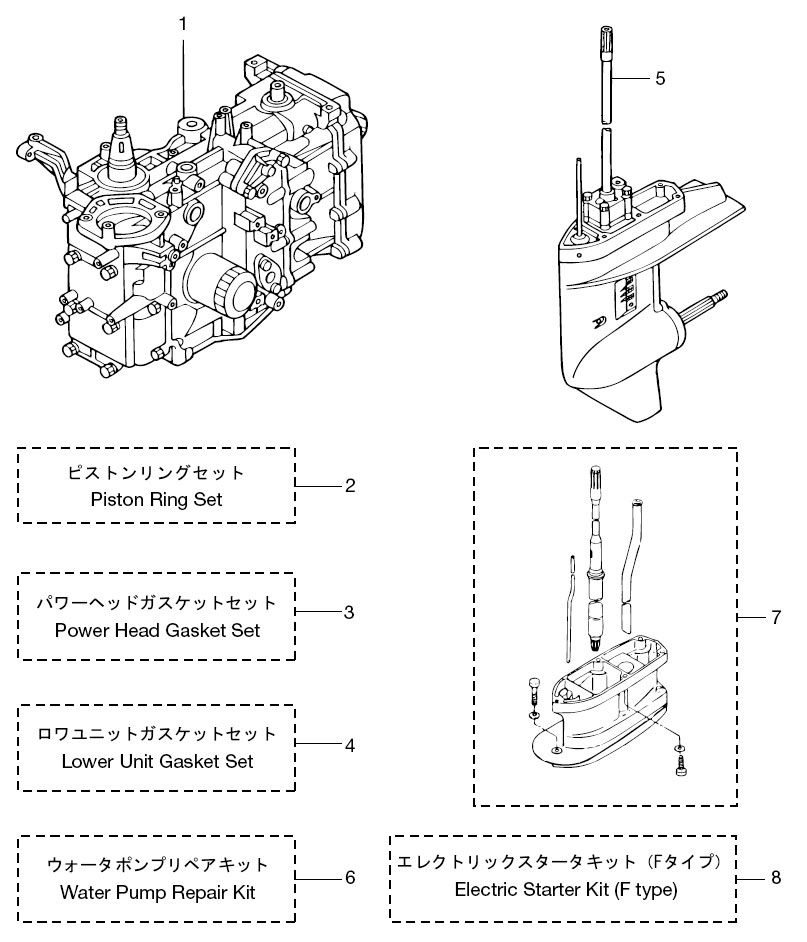

(1) ENGINE SHORT BLOCK KIT(2) PISTON RING SET (STD)(3) POWER HEAD GASKET SET(4) LOWER UNIT GASKET SET(5) LOWER UNIT ASSY (S)(5) LOWER UNIT ASSY (L)(6) WATER PUMP REPAIR KIT(7) EXTENSION HOUSING KIT (UL)(8) ELECTRIC STARTER KIT (F)



Parts List
2011 :: 30 HP :: 4 Stroke Tohatsu MFS30B :: ASSEMBLY & KITS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE SHORT BLOCK KIT 3ACB870903 3ACB87090-3 30PS $2,472.42 1
(2) PISTON RING SET (STD) 3AC871230M 3AC-87123-0 $51.32 1
(3) POWER HEAD GASKET SET 3AC871210M 3AC-87121-0 $128.94 1
(4) LOWER UNIT GASKET SET 3R0873210M 3R0-87321-0 $22.75 1 Sold Out View More Details
(5) LOWER UNIT ASSY (S) 3AEQ873011 3AEQ87301-1 FOR TRANSOM S $1,015.91 1
(5) LOWER UNIT ASSY (L) 3AEQ873021 3AEQ87302-1 FOR TRANSOM L $1,031.06 1
(6) WATER PUMP REPAIR KIT 3R0873220M 3R0-87322-0 $33.59 1
(7) EXTENSION HOUSING KIT (UL) 3R0Q873140 3R0Q87314-0 FOR TRANSOM L $498.74 1
(8) ELECTRIC STARTER KIT (F) 3AD763001M 3AC-76300-0 FOR F TYPE $561.09 1 Sold Out View More Details
