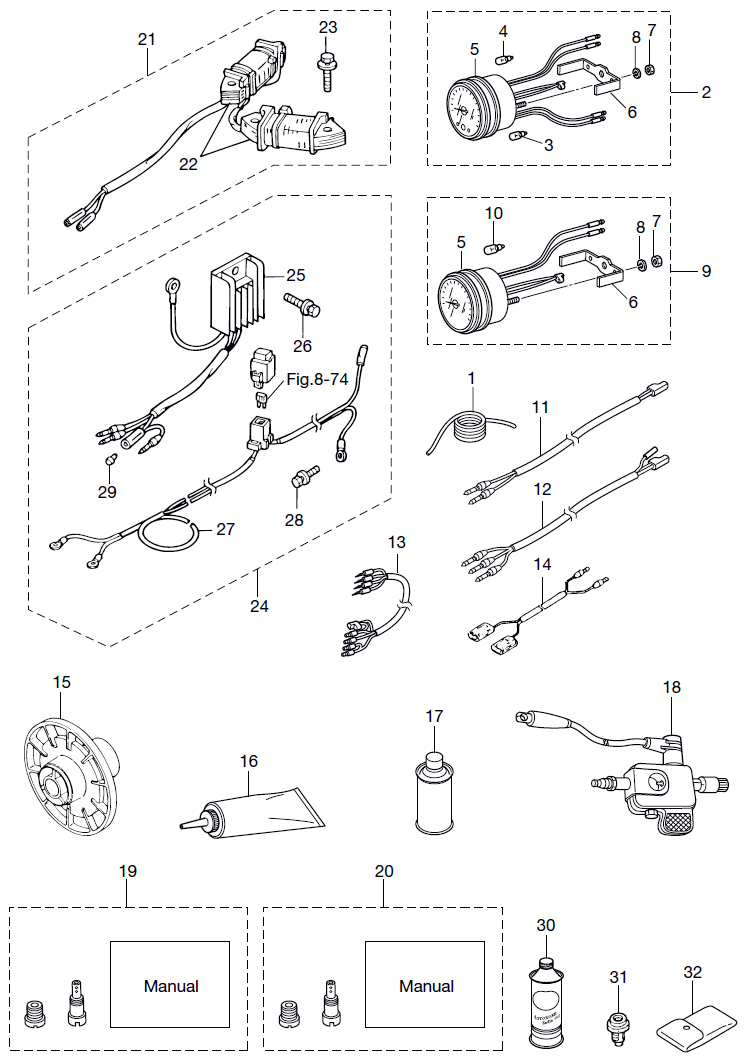

24. OPTIONAL PARTS (ACCESSORIES)

Click Here for Microfiche Usage Tip
(1) SAFETY ROPE 6-1600(2) TACHOMETER ASSY W/OIL LAMP(3) OIL BULB 12V-1.7W(4) METER BULB 12V-1.8W(5) METER DAMPER(5) METER DAMPER(6) FITTING PLATE(6) FITTING PLATE(7) NUT(7) NUT(8) SPRING WASHER(8) SPRING WASHER(9) TACHOMETER ASSY(10) METER BULB 12V-1.8W(11) TACHOMETER LEAD WIRE L=6000(12) TACHOMETER LEAD WIRE L=6000(13) METER LEAD WIRE L=2000(14) METER LEAD WIRE L=1500(15) TEST PROPELLER ASSY(16) TOHATSU GEAR LUBE (12-QUARTS)(16) TOHATSU GEAR LUBE (5 GAL PAIL)(16) TOHATSU GEAR LUBE (16 GAL DRUM)(16) NISSAN GEAR LUBE (12-QUARTS)(17) TOUCH-UP PAINT (AQUAMARINE )(18) SPARK TESTER (PET-4000)(19) ALTITUDE ADJUSTMENT KIT(20) ALTITUDE ADJUSTMENT KIT(21) ALTERNATOR KIT(22) ALTERNATOR ASSY(23) BOLT(24) RECTIFIER KIT(25) RECTIFIER COMPLETE(26) BOLT(27) EXTENSION CORD L=2150(28) BOLT(29) CABLE TERMINAL PLUG(30) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(30) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(30) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(30) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(31) THERMOSTAT(32) TOOL KIT



Parts List
2011 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: OPTIONAL PARTS (ACCESSORIES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ROPE 3B7722010M 3B7-72201-0 $5.43 1
(2) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 FOR EP $0.00 1 Sold Out View More Details
(3) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP $3.50 1
(4) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(5) METER DAMPER 3B7726560M 3B7-72656-0 $3.50 1
(6) FITTING PLATE 3B7726610M 3B7-72661-0 $27.10 1
(7) NUT 9301030500M 930103-0500 $0.92 2
(8) SPRING WASHER 9413030500M 941303-0500 $0.97 2
(9) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 FOR MF & EF/EFT $0.00 1 Sold Out View More Details
(10) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(11) TACHOMETER LEAD CABLE 361725390M 361-72539-0 FOR MF & EF/EFT $54.19 1
(12) TACHOMETER LEAD CABLE 3V1725390M 3V1-72539-0 FOR EP/EPT $0.00 1 Sold Out View More Details
(13) METER LEAD WIRE L=2000 3A3725371M 3A3-72537-1 FOR EPT $32.87 1
(14) METER LEAD CABLE 353725370M 353-72537-0 FOR EP/EPT $24.62 1
(15) TEST PROPELLER 3B2641101M 3B2-64110-1 $271.17 1
(16) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $150.31 1
(16) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $214.27 1
(16) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(16) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $150.31 1
(17) TOUCH-UP PAINT (AQUAMARINE BLUE) 3AC723260M 3AC-72326-0 $39.11 1
(18) SPARK TESTER 3F3725400M 3F3-72540-0 $181.77 1
(19) ALTITUDE ADJUSTMENT KIT 3V1102300M 3V1-10230-0 8PS $56.03 0
(20) ALTITUDE ADJUSTMENT KIT 3V2102300M 3V2-10230-0 9.8PS $56.03 1
(21) ALTERNATOR KIT 3V2061280M 3V2-06128-0 FOR MF $53.30 1
(22) ALTERNATER 3AA060230M 3AA-06023-0 FOR EF/EFT & EP/EPT $65.90 1
(23) BOLT 9101035630M 910113-5630 FOR MF $1.22 4 Sold Out View More Details
(24) RECTIFIER KIT 3V2761600M 3V2-76160-0 $130.69 1
(25) RECTIFIER 3AA760650M 3AA-76065-0 FOR EP/EPT & EF/EFT $109.26 1
(26) BOLT 9101035616M 910103-5616 $1.22 4 Sold Out View More Details
(27) EXTENTION CORD 3AA761610M 3AA-76161-0 $0.00 1 Sold Out View More Details
(28) BOLT 9101035610M 910103-5610 $1.10 1 Sold Out View More Details
(29) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 RECTIFIER RED CABLE $1.61 1
(30) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $132.74 1
(30) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $158.85 1
(30) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $132.74 1
(30) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $158.85 1
(31) THERMOSTAT 3AA010300M 3AA-01030-0 OPT MARK 70 $110.32 1
(32) TOOL 3BJ721000M 3H6-72100-0 $30.02 1
