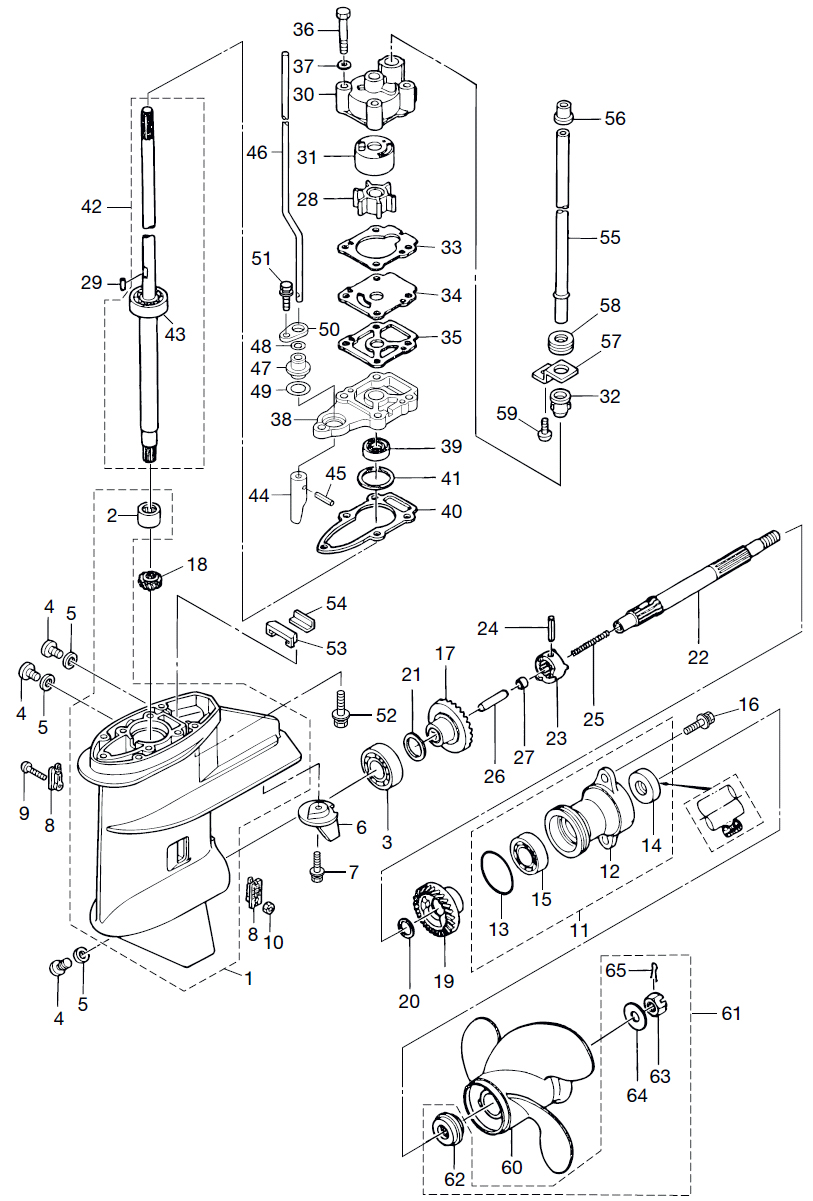

10. LOWER UNIT

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) ROLLER BEARING(3) BALL BEARING 6204(4) PLUG(4) PLUG(4) PLUG(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(6) TRIM TAB(7) BOLT(8) WATER STRAINER W=17(8) WATER STRAINER W=17(9) SCREW(10) NYLON NUT 4P0.7(11) PROPELLER SHAFT HOUSING ASSY(12) PROPELLER SHAFT HOUSING(13) O-RING 3.2-47(14) OIL SEAL 15-28-10(15) BALL BEARING 6004(16) BOLT(17) BEVEL GEAR ASSY (A)(18) BEVEL GEAR B(19) BEVEL GEAR C(20) WASHER 15.2-19-1.9(21) SHIM 21-28-0.1(21) SHIM 21-28-0.15(22) PROPELLER SHAFT(23) CLUTCH(24) PIN 3.5-28(25) SPRING CLUTCH(26) PUSH ROD CLUTCH(27) SPRING RETAINER CLUTCH(28) WATER PUMP IMPELLER(29) KEY PUMP IMPELLER(30) PUMP CASE (UPPER)(31) PUMP CASE LINER(32) WATER PIPE SEAL (LOWER)(33) PUMP CASE GASKET(34) WATER PUMP GUIDE PLATE(35) GUIDE PLATE GASKET(36) BOLT(37) WASHER(38) PUMP CASE (LOWER)(39) OIL SEAL 12-24-8(40) PUMP CASE GASKET (LOWER)(41) SHIM 28-36.8-0.1(41) SHIM 28-36.8-0.15(41) SHIM 28-36.8-0.3(42) DRIVE SHAFT ASSY (S)(42) DRIVE SHAFT ASSY (L)(42) DRIVE SHAFT ASSY (UL)(43) BALL BEARING 6301(44) CLUTCH CAM(45) SPRING PIN 3-10(46) CAM ROD (S)(46) CAM ROD (L)(46) CAM ROD (UL)(47) CAM ROD BUSHING(48) O-RING A 2.5-4.9(49) O-RING 2.4-15.4(50) STOPPER CAM ROD BUSHING(51) BOLT(52) BOLT(53) WATER SEAL RUBBER(54) WATER SEAL PLATE(55) WATER PIPE (S)(55) WATER PIPE (L)(55) WATER PIPE (UL)(56) WATER PIPE SEAL (UPPER)(57) LOCK PLATE(58) WATER PIPE AUXILIARY MOUNT 13-2.5(59) SCREW(60) PROPELLER ASSY (5") 4-BLADE(60) PROPELLER ASSY (7") 4-BLADE(60) PROPELLER ASSY (6.5")(60) PROPELLER ASSY (7")(60) PROPELLER ASSY (7.5")(60) PROPELLER ASSY (8.5")(60) PROPELLER ASSY (9.5")(61) PROPELLER HARDWARE KIT(62) THRUST HOLDER ASSY(63) PROPELLER NUT(64) WASHER 10.5-28-2(65) SPLIT PIN 3-18

Displaying 1 to 80 (of 80 products)

Parts List
2011 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: LOWER UNIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3AAQ600000 3AAQ60000-0 $303.37 1
(2) NEEDLE BEARING 15-21-16 3V1602110M 3V1-60211-0 $41.89 1
(3) BALL BEARING 6204 960106204M 9601-0-6204 $18.84 1
(4) WATER PLUG 332600052M 332-60005-2 $5.43 3
(5) GASKET 8.1-15-1 332600060M 332-60006-0 $0.92 3
(6) TRIM TAB 3V1602170M 3V1-60217-0 $12.22 1
(7) BOLT 9101035620M 910103-5620 $1.39 1
(8) WATER STRAINER 3AA602060M 3AA-60206-0 MARK A $3.54 2
(9) SCREW 9215030430M 921513-0430 $1.01 1
(10) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.80 1
(11) PROPELLER SHAFT HOUSING ASSY 3B2Q601000 3B2Q60100-0 $54.58 1
(12) PROPELLER SHAFT HOUSING 3B2Q601010 3B2Q60101-0 $44.07 1
(13) O-RING 3.2-47 345650150M 345-65015-0 $1.61 1 Sold Out View More Details
(14) OIL SEAL 15-28-10 369601110M 369-60111-0 $4.69 1
(15) BALL BEARING 6004 960106004M 9601-0-6004 $11.74 1
(16) BOLT 9101E35620M 910113-5620 $1.39 2
(17) BEVEL GEAR A 3B2640100M 3B2-64010-0 $90.63 1
(18) BEVEL GEAR B 3B2640200M 3B2-64020-0 $40.08 1
(19) BEVEL GEAR C 3B2640300M 3B2-64030-0 $89.54 1
(20) WASHER 15.2-19-1.9 369640320M 369-64032-0 $3.50 1
(21) SHIM 21-28-.01 369640140M 369-64014-0 $2.12 0
(21) SHIM 21-28-0.15 369640150M 369-64015-0 $2.12 0
(22) PROPELLER SHAFT 3V1642110M 3V1-64211-0 $129.64 1
(23) CLUTCH 3B2642150M 3B2-64215-0 $37.72 1
(24) SPRING PIN 3.5-28 301642170M 301-64217-0 $1.50 1
(25) CLUTCH SPRING 3V1642210M 3V1-64221-0 $1.91 1
(26) CLUTCH PUSH ROD 369642230M 369-64223-0 $5.16 1
(27) CLUTCH SPRING RETAINER 3B2642220M 3B2-64222-0 $2.48 1
(28) WATER PUMP IMPELLER 3B2650211M 3B2-65021-1 $10.38 1
(29) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.56 1
(30) PUMP CASE (UPPER) 3B2650160M 3B2-65016-0 $28.25 1
(31) PUMP CASE LINER 3B2650110M 3B2-65011-0 $12.98 1
(32) WATER PIPE SEAL (LOWER) 331650140M 331-65014-0 $1.71 1
(33) PUMP CASE GASKET 3B2650181M 3B2-65018-1 $5.00 1
(34) WATER PUMP GUIDE PLATE 3B2650250M 3B2-65025-0 $3.08 1
(35) GUIDE PLATE GASKET 3B2650291M 3B2-65029-1 $2.21 1
(36) BOLT 9161E30650M 916113-0650 $2.59 4 Sold Out View More Details
(37) WASHER 9401E30600M 9401E3-0600 $0.00 4 Sold Out View More Details
(38) PUMP CASE (LOWER) 3V1650170M 3V1-65017-0 $23.63 1
(39) OIL SEAL 12-24-8 309601110M 309-60111-0 $7.39 1
(40) PUMP CASE GASKET (LOWER) 3B2650200M 3B2-65020-0 $5.66 1
(41) SHIM 28-36.8-0.1 3B2640810M 3B2-64081-0 $2.12 0 Sold Out View More Details
(41) SHIM 28-36.8-0.15 3B2640820M 3B2-64082-0 $2.12 0
(41) SHIM 28-36.8-0.3 3B2640830M 3B2-64083-0 $4.88 0 Sold Out View More Details
(42) DRIVE SHAFT S 3V1643061M 3V1-64306-1 FOR TRANSOM S $172.67 1
(42) DRIVE SHAFT L 3V1643071M 3V1-64307-1 FOR TRANSOM L $116.38 1
(42) DRIVE SHAFT UL 3V1643091M 3V1-64309-1 FOR TRANSOM UL $171.63 1 Sold Out View More Details
(43) BALL BEARING 6301 960106301M 9601-0-6301 $14.17 1
(44) CLUTCH CAM 369660110M 369-66011-0 $19.01 1
(45) SPRING PIN 3-10 9514070310M 951407-0310 $0.87 1
(46) CAM ROD S 3V1660120M 3V1-66012-0 FOR TRANSOM S $14.58 1
(46) CAM ROD L 3V1660130M 3V1-66013-0 FOR TRANSOM L $16.43 1
(46) CAM ROD UL 3V1660140M 3V1-66014-0 FOR TRANSOM UL $21.28 1 Sold Out View More Details
(47) CAM ROD BUSHING 369660310M 369-66031-0 $3.62 1
(48) O-RING 2.5-4.9 369660211M 369-66021-1 $1.36 1 Sold Out View More Details
(49) O-RING 2.4-15.4 332660320M 332-66032-0 $1.50 1
(50) STOPPER 369660330M 369-66033-0 $2.21 1
(51) BOLT 9101E35625M 910113-5625 $1.57 1
(52) BOLT 6-35 3V2600010M 3V1-60001-0 $3.68 4
(53) WATER SEAL RUBBER 3V1600410M 3V1-60041-0 $3.68 1
(54) WATER SEAL PLATE 3V1600420M 3V1-60042-0 $3.11 1 Sold Out View More Details
(55) WATER PIPE S 3V1651000M 3V1-65100-0 FOR TRANSOM S $11.50 1
(55) WATER PIPE L 3V1651100M 3V1-65110-0 FOR TRANSOM L $15.33 1
(55) WATER PIPE UL 3V1651200M 3V1-65120-0 FOR TRANSOM UL $25.63 1
(56) WATER PIPE SEAL (UPPER) 3V1652060M 3V1-65206-0 $1.68 1
(57) LOCK PLATE 3V1652030M 3V1-65203-0 $4.00 1
(58) RUBBER MOUNT 13-2.5 3V1652040M 3V1-65204-0 $2.59 1 Sold Out View More Details
(59) SCREW 9215E30510M 9215E3-0510 FOR EP/EPT $0.87 1
(60) PROPELLER ASSY (5) 3V1B645100 3V1B64510-0 (USA:9.8PS UL) $106.21 1
(60) PROPELLER ASSY (7) 3V1B645140 3V1B64514-0 (USA:8/9.8PS L PT) $106.21 1
(60) PROPELLER ASSY (6.5) 3B2B645131 3B2B64513-1 6PS L $0.00 1 Sold Out View More Details
(60) PROPELLER ASSY (7) 3B2B645141 3B2B64514-1 (USA:8PS S/L 9.8PS L) $88.73 1
(60) PROPELLER ASSY (7.5) 3B2B645151 3B2W64515-0 8PS S/L 9.8PS L/UL (USA:9.8PS S) $88.73 1 Sold Out View More Details
(60) PROPELLER ASSY (8.5) 3B2B645171 3B2B64517-1 9.8PS S $88.73 1
(60) PROPELLER ASSY (9.5) 3B2B645191 3B2W64519-1 OPT $0.00 1 Sold Out View More Details
(61) PROPELLER HARDWARE KIT 3V1873260M 3V1-87326-0 $28.76 1
(62) PROPELLER THRUST HOLDER 3B2642301M 3B2-64230-1 $20.73 1
(63) PROPELLER NUT 369641210M 369-64121-0 $9.41 1 Sold Out View More Details
(64) WASHER 10.5-28-2 369641240M 369-64124-0 $4.49 1
(65) SPLIT PIN 3-18 9515030318M 951503-0318 $1.01 1
Displaying 1 to 80 (of 80 products)
