26. ASSEMBLY KIT

Click Here for Microfiche Usage Tip

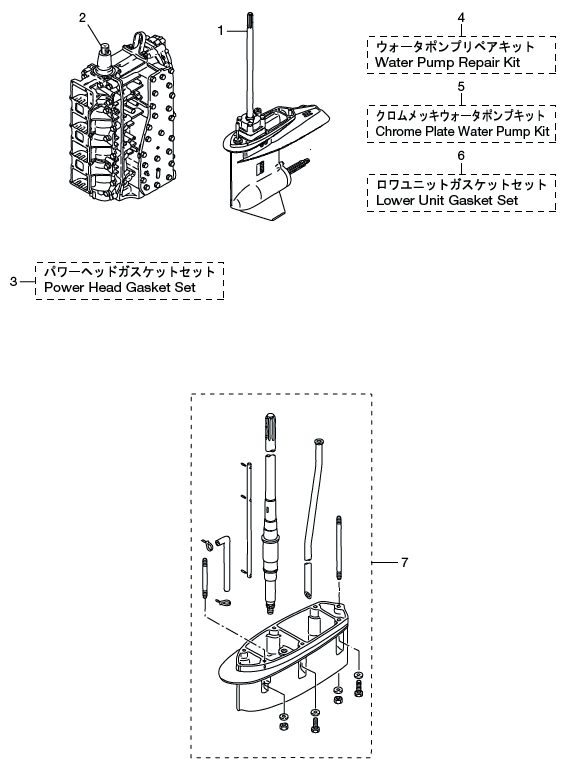

(1) LOWER UNIT ASSY (L)(1) LOWER UNIT ASSY (UL)(2) ENGINE SHORT BLOCK KIT(3) POWER HEAD GASKET SET(4) WATER PUMP REPAIR KIT(5) WATER PUMP KIT (CHROME PLATED)(6) LOWER UNIT GASKET SET(7) EXTENSION HOUSING KIT (UL)



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: ASSEMBLY KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) LOWER UNIT ASSY (L) 3C7Q873026 3C7Q87302-6 FOR TRANSOM L $1,887.77 1
(1) LOWER UNIT ASSY (UL) 3C7Q873046 3C7Q87304-6 FOR TRANSOM UL $1,955.99 1
(2) ENGINE SHORT BLOCK KIT 3HKB870900 3HKB87090-0 $8,147.53 1
(3) POWER HEAD GASKET SET 3T1871217M 3T1-87121-7 $206.96 1
(4) WATER PUMP REPAIR KIT 3C7873221M 3C7-87322-1 $86.51 1
(5) WATER PUMP KIT (CHROME PLATED) 3C7652310M 3C7-65231-0 $93.79 1
(6) LOWER UNIT GASKET SET 3C7873212M 3C7-87321-2 $56.65 1
(7) EXTENSION HOUSING KIT (UL) 3C7Q873141 3C7Q87314-1 $655.85 1
