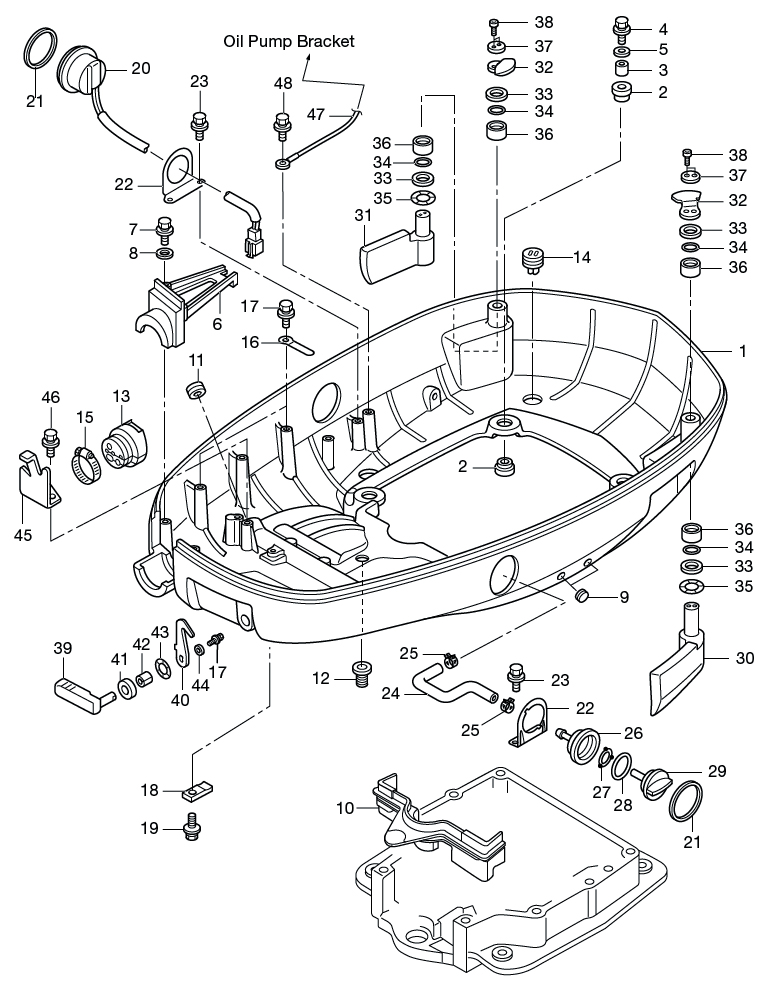

18. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) MOUNT MOTOR COVER LOWER(2) MOUNT MOTOR COVER LOWER(3) SPACER(4) BOLT(5) WASHER 8.5-24-1.5(6) CLAMP(7) BOLT(8) WASHER(9) GROMMET 17-2.7(10) GROMMET A LOWER COVER(11) GROMMET PTT CORD(12) GROMMET 17-3(13) GROMMET CORD(14) GROMMET(15) CLAMP 60(16) CLAMP 6.5-67P(17) BOLT(17) BOLT(18) CLAMP POWER TRIM & TILT(19) BOLT 5-16(20) PTT SWITCH ASSY(21) GASKET PTT/SWITCH(21) GASKET PTT/SWITCH(22) PTT SWITCH ASSY BRACKET(22) PTT SWITCH ASSY BRACKET(23) BOLT(23) BOLT(24) FLUSHING HOSE(25) CLIP 17.8o(25) CLIP 17.8o(26) FLUSHING CONNECTOR(27) SEAL RING(28) O-RING 3.1-24.4(29) FLUSHING CONNECTOR CAP(30) HOOK LEVER ASSY (LEFT)(31) HOOK LEVER ASSY (RIGHT)(32) COVER HOOK(32) COVER HOOK(33) WASHER(33) WASHER(33) WASHER(33) WASHER(34) O-RINGo3.5-18(34) O-RINGo3.5-18(34) O-RINGo3.5-18(34) O-RINGo3.5-18(35) WAVE WASHER(35) WAVE WASHER(36) BUSHING 18-24-19(36) BUSHING 18-24-19(36) BUSHING 18-24-19(36) BUSHING 18-24-19(37) WASHER(37) WASHER(38) BOLT(38) BOLT(39) HOOK LEVER(40) COVER HOOK(41) SEAL RING HOOK LEVER(42) HOOK LEVER BUSHING 14-16-1.8(43) WAVE WASHER D=14(44) WASHER 6-16-1.5(45) CLIP CABLE(46) BOLT(47) GROUND CABLE L=270(48) BOLT



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3T1Q671001 3T1Q67100-1 $2,634.89 1
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 $1.61 8
(3) SPACER 8.4-12-17 3C7671141M 3C7-67114-1 $2.31 4
(4) BOLT 9101E30835M 9101E3-0835 $1.67 4
(5) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 4
(6) CORD CLAMP 3T1Q761180 3T1Q76118-0 $48.56 1
(7) BOLT 9101036625M 910103-6625 $1.01 2
(8) WASHER 9401030600M 940103-0600 $0.70 2
(9) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 2 Sold Out View More Details
(10) BOTTOM COWL GROMMET A 3C7671640M 3C7-67164-0 $48.31 1
(11) POWER TRIM & TILT CORD GROMMET 3C7771560M 3C7-77156-0 $2.68 1
(12) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(13) GROMMET 3T1761161M 3T1-76116-1 $17.66 1
(14) GROMMET 3T1671610M 3T1-67161-0 $4.78 4
(15) CLAMP 60 3R0024260M 3R0-02426-0 $3.54 1
(16) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 2
(17) BOLT 9101036612M 910103-6612 $1.16 3
(18) POWER TRIM & TILT CORD CLAMP 3C7725770M 3C7-72577-0 $0.00 1 Sold Out View More Details
(19) BOLT 9101035616M 910103-5616 $1.15 1
(20) PTT SWITCH 3AC726150M 3AC-72615-0 $61.81 1
(21) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 $3.27 2
(22) PTT SWITCH BRACKET 3T1726170M 3T1-72617-0 $0.00 2 Sold Out View More Details
(23) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 4
(24) FLUSHING HOSE 3T1724100M 3T1-72410-0 $0.00 1 Sold Out View More Details
(25) CLIP ø17.8 3T1077371M 3T1-07737-1 $2.37 2
(26) FLUSHING CONNECTOR 3T1724030M 3T1-72403-0 $9.85 1
(27) SEAL RING 3T1671470M 3T1-67147-0 $6.76 1
(28) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(29) FLUSHING CONNECTOR CAP 3T1724040M 3T1-72404-0 $10.98 1
(30) HOOK LEVER (LEFT) 3T1676800M 3T1-67680-0 $0.00 1 Sold Out View More Details
(31) HOOK LEVER (RIGHT) 3T1676810M 3T1-67681-0 $0.00 1 Sold Out View More Details
(32) COVER HOOK 3T1671420M 3T1-67142-0 $36.81 2
(33) WASHER 3T1637310M 3T1-63731-0 $1.27 4 Sold Out View More Details
(34) O-RING 4 3.5-18 3T1624350M 3T1-62435-0 $1.21 4 Sold Out View More Details
(35) WAVE WASHER 3T1631090M 3T1-63109-0 $1.27 2 Sold Out View More Details
(36) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 4
(37) WASHER 3T1671460M 3T1-67146-0 $2.31 2 Sold Out View More Details
(38) BOLT 9102030520M 910203-0520 $0.00 4 Sold Out View More Details
(39) HOOK LEVER 3R3Q671410 3R3Q67141-0 $15.25 1
(40) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(41) SEAL RING 338671470M 338-67147-0 $1.85 1
(42) HOOK LEVER BUSHING 14-16-1.8 332671051M 332-67105-1 $2.07 1
(43) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(44) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(45) CABLE CLIP 3B7837200M 3B7-83720-0 $9.89 1
(46) BOLT 9101036616M 910103-6616 $1.20 2
(47) GROUND CABLE 3N4761421M 3N4-76142-1 $4.78 1 Sold Out View More Details
(48) BOLT 9101036612M 910103-6612 $1.16 2
