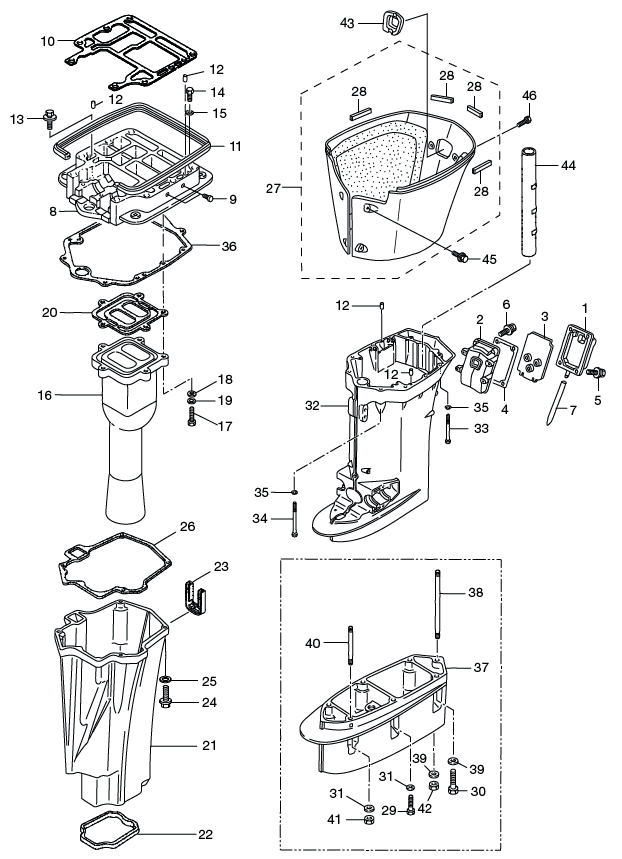

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) IDLE EXHAUST PASSAGE COVER ASSY(2) IDLE EXHAUST PASSAGE(3) IDLE EXHAUST PASSAGE SEPARATION(4) GASKET PASSAGE COVER(5) BOLT(6) BOLT(7) WATER OUTLET HOSE(8) ENGINE BASEMENT ASSY(9) EXHAUST PLUG(10) ENGINE BASEMENT GASKET(11) ENGINE BASEMENT SEAL L=690(12) DOWEL PIN 6-12(12) DOWEL PIN 6-12(12) DOWEL PIN 6-12(12) DOWEL PIN 6-12(13) BOLT(14) BOLT 8-50(15) WASHER(16) EXHAUST PIPE(17) BOLT(18) WASHER(19) SPRING WASHER(20) EXHAUST PIPE GASKET(21) EXHAUST HOUSING(22) GROMMET(23) IDLE EXHAUST PORT GROMMET(24) BOLT(25) WASHER 8.4-15.5-1.6(26) EXHAUST HOUSING GASKET(27) APRON ASSY(28) SEAL APRON(28) SEAL APRON(28) SEAL APRON(28) SEAL APRON(29) BOLT 8-35(30) BOLT 10-40(31) WASHER(31) WASHER(32) DRIVE SHAFT HOUSING (L)(33) BOLT 10-107(34) BOLT 10-120(35) WASHER(35) WASHER(36) DRIVE SHAFT HOUSING GASKET(37) EXTENSION HOUSING(38) STUD BOLT 10-165(39) WASHER(39) WASHER(40) STUD BOLT(41) NUT(42) NUT 10-P1.25(43) GROMMET APRON(44) REVERSE GAS PASSAGE PIPE(45) BOLT(46) BOLT



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) IDLE EXHAUST PASSAGE COVER 3T1Q612450 3T1Q61245-0 $55.98 1 Sold Out View More Details
(2) IDLE EXHAUST PASSAGE 3T1Q612410 3T1Q61241-0 $0.00 1 Sold Out View More Details
(3) IDLE EXHAUST PASSAGE SEPARATION 3T1612420M 3T1-61242-0 $16.89 1 Sold Out View More Details
(4) GASKET 3T1612440M 3T1-61244-0 $8.80 1 Sold Out View More Details
(5) BOLT 9101E35620M 910113-5620 $1.30 4
(6) BOLT 9101E35635M 910114-5635 $1.96 4 Sold Out View More Details
(7) WATER OUTLET HOSE 3T1610970M 3T1-61097-0 $3.62 1 Sold Out View More Details
(8) ENGINE BASEMENT 3T1Q013000 3T1Q01300-0 $0.00 1 Sold Out View More Details
(9) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 2
(10) ENGINE BASEMENT GASKET 3C7013035M 3C7-01303-5 $33.06 1
(11) ENGINE BASEMENT SEAL 3B7671160M 3B7-67116-0 $13.51 1
(12) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(13) BOLT 9101035635M 910103-5635 $1.96 1 Sold Out View More Details
(14) BOLT 8-50 3C7013120M 3C7-01312-0 $3.27 2
(15) WASHER 9401030800M 940113-0800 $0.84 2
(16) EXHAUST PIPE 3T1023110M 3T1-02311-0 $485.88 1
(17) BOLT 9101F40835M 9101F4-0835 $1.50 5
(18) WASHER 9401030800M 940113-0800 $0.84 5
(19) SPRING WASHER 9413030800M 941303-0800 $0.79 5
(20) EXHAUST PIPE GASKET 3C7023122M 3C7-02312-2 $5.27 1
(21) EXHAUST HOUSING 3D8611800M 3D8-61180-0 $120.93 1 Sold Out View More Details
(22) GROMMET 3B7611821M 3B7-61182-0 $10.12 1
(23) IDLE EXHAUST PORT GROMMET 3B7612070M 3B7-61207-0 $9.09 1
(24) BOLT 9101030830M 910103-0830 $1.38 4
(25) WASHER 9402030800M 9402030800M $0.60 4
(26) EXHAUST HOUSING GASKET 3B7611812M 3B7611812M $15.51 1
(27) APRON ASSY 3T1Q612251 3T1Q61225-1 $0.00 1 Sold Out View More Details
(28) APRON SEAL 3T1612130M 3T1-61213-0 $1.48 4
(29) BOLT 3T1600010M 3T1-60001-0 FOR TRANSOM UL $5.35 3
(30) BOLT 10-40 3B7600014M 3B7-60001-4 FOR TRANSOM UL $8.33 2
(31) WASHER 9401E30800M 9401E3-0800 FOR TRANSOM UL $0.65 4
(32) DRIVE SHAFT HOUSING (L) 3T1Q611920 3T1Q61192-0 $640.69 1
(33) BOLT 10-107 3C7610172M 3C7-61017-2 $8.05 6
(34) BOLT 10-120 3C7610182M 3C7-61018-2 $8.29 2
(35) WASHER 9401E31000M 940113-1000 $1.50 8
(36) DRIVE SHAFT HOUSING GASKET 3C7610122M 3C7-61012-2 $12.47 1
(37) EXTENSION HOUSING UL 3B7Q611100 3B7Q61110-0 FOR TRANSOM UL $238.49 1 Sold Out View More Details
(38) STUD 10-165 3B7611121M 3B7-61112-1 FOR TRANSOM UL $18.64 1
(39) WASHER 9402E31000M 940213-1000 FOR TRANSOM UL $1.04 3
(40) STUD 9153E30825M 915313-0825 FOR TRANSOM UL $3.51 1
(41) NUT 9301030800M 930103-0800 FOR TRANSOM UL $1.99 1
(42) NUT 10-P1.25 3B7611140M 3B7-61114-0 FOR TRANSOM UL $2.07 1
(43) APRON GROMMET 3T1612120M 3T1-61212-0 $14.38 1
(44) REVERSE GAS PASSAGE PIPE 3B7611860M 3B7-61186-0 $0.00 1 Sold Out View More Details
(45) BOLT 9101E35612M 910103-5612 $1.07 4
(46) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 2
