11. ELECTRIC PARTS (STARTER MOTOR)

Click Here for Microfiche Usage Tip

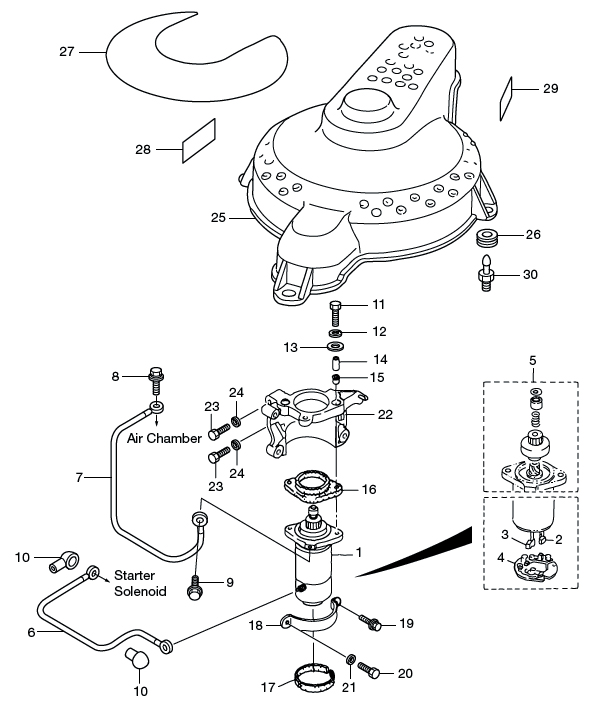

(1) STARTER MOTOR ASSY(2) POSITIVE BRUSH(3) NEGATIVE BRUSH(4) BRUSH SPRING(5) PINION ASSY(6) STARTER CABLE (L=500)(7) STARTER CABLE (L=300)(8) BOLT W/WASHER(9) BOLT(10) TERMINAL CAP STARTER(10) TERMINAL CAP STARTER(11) BOLT(12) SPRING WASHER(13) WASHER 8.5-24-1.5(14) SPACER(15) STARTER MOTOR MOUNT A(16) STARTER MOTOR MOUNT B(17) DAMPER STARTER MOTOR(18) STARTER MOTOR BAND(19) BOLT(20) BOLT(21) WASHER(22) BRACKET STARTER MOTOR(23) BOLT(23) BOLT(24) SPRING WASHER(24) SPRING WASHER(25) RING GEAR COVER(26) GROMMET 16-2.5(27) CAUTION DECAL (B)(28) FUSE DECAL(29) SPARK PLUG DECAL(30) HOOK COVER



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: ELECTRIC PARTS (STARTER MOTOR)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 353760104M 353-76010-4 $453.45 1
(2) POSITIVE BRUSH (+) 353760123M 353-76012-3 $14.13 1
(3) NEGATIVE BRUSH (-) 353760133M 353-76013-3 $10.35 1
(4) BRUSH SPRING 353760171M 353-76017-1 $0.00 1 Sold Out View More Details
(5) PINION ASSY 353760151M 353-76015-1 $0.00 1 Sold Out View More Details
(6) STARTER CABLE 3U1761410M 3U1-76141-0 $29.19 1 Sold Out View More Details
(7) STARTER CABLE 3T1761410M 3T1-76141-0 $0.00 1 Sold Out View More Details
(8) BOLT 9101035612M 910103-5612 $1.07 1
(9) BOLT 9101035816M 910103-5816 $0.00 1 Sold Out View More Details
(10) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(11) BOLT 9101030840M 910103-0840 $3.17 2
(12) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(13) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(14) SPACER 8.4-12-21.5 3C7760031M 3C7-76003-1 $2.56 2
(15) STARTER MOTOR MOUNT A 3C7760040M 3C7-76004-0 $2.07 2
(16) STARTER MOTOR MOUNT B 3C7760050M 3C7-76005-0 $11.48 1
(17) DAMPER 3C7760071M 3C7-76007-1 $0.00 2 Sold Out View More Details
(18) STARTER MOTOR BAND 353B760092 353B76009-2 $13.80 1 Sold Out View More Details
(19) BOLT 9101E35840M 910113-5840 $3.17 1
(20) BOLT 9101030820M 9101E3-0820 $1.87 1
(21) WASHER 9401030800M 940113-0800 $0.84 1
(22) STARTER MOTOR BRACKET 3T1B051010 3T1B05101-0 $110.41 1
(23) BOLT 9161F40845M 9161F4-0845 $0.00 3 Sold Out View More Details
(24) SPRING WASHER 9413220800M 941322-0800 $0.92 3
(25) RING GEAR COVER 3T1063010M 3T1-06301-0 $71.13 1
(26) GROMMET 16-2.5 3T1670050M 3T1-67005-0 $2.16 4
(27) CAUTION DECAL B 3T1721810M 3T1-72181-0 $0.00 1 Sold Out View More Details
(28) FUSE DECAL 3Y9721940M 3Y9-72194-0 $1.55 1
(29) SPARK PLUG DECAL 3Y7720260M 3Y7-72026-0 $0.00 1 Sold Out View More Details
(30) RING GEAR COVER HOOK 1E0360560M 1E0-36056-0 $1.85 4
