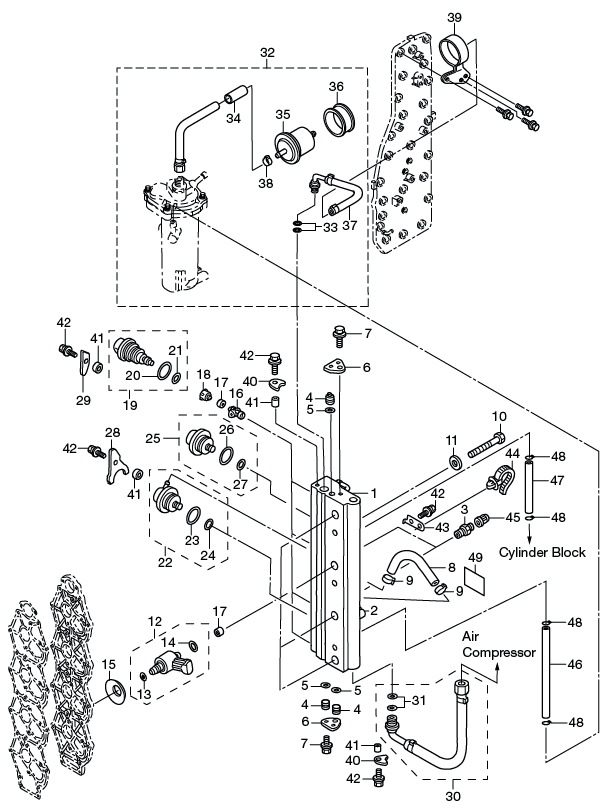

4. AIR RAIL

Click Here for Microfiche Usage Tip
(1) AIR RAIL ASSY(2) NIPPLE L(3) VALVE ASSY (PRESSURE CHECK)(4) PLUG 10.5(4) PLUG 10.5(4) PLUG 10.5(5) O-RING 6.8-1.9(5) O-RING 6.8-1.9(5) O-RING 6.8-1.9(6) PLUG STOPPER(6) PLUG STOPPER(7) BOLT(7) BOLT(8) HOSE(9) CLAMP 29/64(9) CLAMP 29/64(10) BOLT(11) WASHER(12) AIR INJECTOR COMPLETE(13) O-RING 5-52(14) O-RING 2.4-9.5(15) DISC SPRING(16) FUEL INJECTOR INSERT(17) SEAL COMPRESSION(17) SEAL COMPRESSION(18) FUEL INJECTOR ADAPTER(19) FUEL INJECTOR ASSY(20) O-RING 2.8-20.2(21) O-RING 3.5-735(22) FUEL REGULATOR ASSY(23) O-RING 2.5-20(24) O-RING 5-2.5(25) AIR REGULATOR ASSY(26) O-RING 2.5-20(27) O-RING 5-2.5(28) HOLDING PLATE(29) HOLDING PLATE(30) AIR HOSE ASSY(31) O-RING 9.8-1.9(32) FUEL HOSE ASSY(33) O-RING 9.8-1.9(34) PROTECTOR o18-150(35) HIGH PRESSURE FUEL FILTER(36) FUEL FILTER RUBBER MOUNT(37) PROTECTOR o18-170(38) CLAMP 21/32(39) FUEL FILTER BAND(40) HOLDING PLATE(40) HOLDING PLATE(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(42) BOLT(42) BOLT(42) BOLT(42) BOLT(42) BOLT(43) STAY LEAD WIRE BAND(44) BAND LEAD WIRE 170(45) CAP VALVE(46) HOSE(47) HOSE(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(49) AIR RAIL DECAL



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: AIR RAIL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR RAIL 3T1100800M 3T1-10080-0 $500.37 1
(2) L-NIPPLE 3T5101660M 3T5-10166-0 $8.80 1
(3) VALVE 3T5100980M 3T5-10098-0 $11.16 2 Sold Out View More Details
(4) PLUG ø 10.5 3T5101670M 3T5-10167-0 $2.94 3
(5) O-RING 1.9-6.8 3T5101641M 3T5-10164-0 $2.22 3
(6) PLUG STOPPER 3T5101650M 3T5-10165-0 $1.22 2
(7) BOLT 9101036612M 910103-6612 $1.16 4
(8) HOSE 98AY45115M 98AY-45-115 FUEL REGULATOR - AIR RAIL $0.00 1 Sold Out View More Details
(9) CLAMP 29/64 3T5100910M 3T5-10091-0 $6.99 2
(10) BOLT 9101030865M 910103-0865 $1.70 3
(11) WASHER 9401030800M 940113-0800 $0.84 3
(12) AIR INJECTOR COMPLETE 3GF103100M 3GF-10310-0 $235.80 4
(13) O-RING 5-52 (ø 1-10) 3T5103170M 3T5-10317-0 $9.09 1
(14) O-RING 2.4-9.6 3Y9103111M 3Y9-10311-0 BROWN $3.20 1
(15) AIR INJECTOR DISC SPRING 3Y9103120M 3Y9-10312-0 $3.50 4
(16) FUEL INJECTOR INSERT 3T5103140M 3T5-10314-0 $18.34 4
(17) COMPRESSION SEAL 3T5103160M 3T5-10316-0 $1.85 8 Sold Out View More Details
(18) FUEL INJECTOR ADAPTER 3T5103150M 3T5-10315-0 $18.34 4
(19) FUEL INJECTOR 3T1103000M 3T1-10300-0 MARK: 37001 (PINK) $246.48 4
(20) O-RING 2.8-20.2 3T5103040M 3T5-10304-0 $11.02 1 Sold Out View More Details
(21) O-RING 3.5-7.5 3T5103030M 3T5-10303-0 $8.37 1
(22) FUEL REGULATOR 3T5101480M 3T5-10148-0 $100.77 1
(23) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(24) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(25) AIR REGULATOR ASSY 3GF100900M 3GF-10090-0 $113.72 1
(26) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.46 1
(27) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.68 1
(28) FUEL INJECTOR HOLDING PLATE 3T5103020M 3T5-10302-0 $1.53 3
(29) FUEL INJECTOR HOLDING PLATE 3Y9103020M 3Y9-10302-0 $10.98 1
(30) AIR HOSE ASSY 3T1100880M 3T1-10088-0 $114.50 1
(31) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(32) FUEL HOSE ASSY 3U1B100891 3U1B10089-1 $0.00 1 Sold Out View More Details
(33) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(34) PROTECT TUBE 3U1061570M 3U1-06157-0 $3.52 1
(35) FUEL FILTER 3T5B101430 3T5B10143-0 $94.05 1
(36) FUEL FILTER RUBBER MOUNT 3T5101450M 3T5-10145-0 $3.18 1
(37) PROTECTOR ø18-170 3T1061571M 3T1-06157-1 $2.01 1 Sold Out View More Details
(38) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.58 4
(39) FUEL FILTER BAND 3T1101440M 3T1-10144-0 $16.24 1 Sold Out View More Details
(40) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.22 2
(41) COLLAR 6.7-12.7-3 3T5101530M 3T5-10153-0 $3.05 6
(42) BOLT 9101036616M 910103-6616 $1.20 6
(43) LEAD WIRE BAND STAY 3T1761740M 3T1-76174-0 $0.00 2 Sold Out View More Details
(44) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 $0.00 2 Sold Out View More Details
(45) VALVE CAP 3T5100990M 3T5-10099-0 $1.56 2
(46) HOSE 98AB50720M 98AB-50-720 AIR RAIL - FFP CASE (RETURN) / 98AB-501000 $11.41 1
(47) HOSE 98AB50460M 98AB-50-460 AIR RAIL - CYLINDER (REGULATOR) / 98AB-501000 $11.41 1
(48) CLIP ø10 338022150M 338-02215-0 $1.41 4
(49) AIR RAIL DECAL 3T5721960M 3T5-72196-0 $1.53 1
