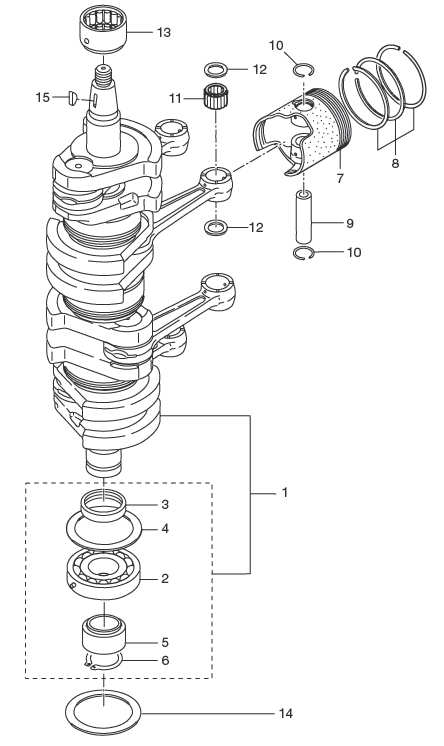

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(2) MAIN BEARING 6208(3) SPACER 40-52-7(4) THRUST PLATE 66-85-2(5) SPACER 35-48.6-16(6) C-RING D=35(7) PISTON (STD)(7) PISTON (0.5 O/S)(8) PISTON RING (STD) 1ST(8) PISTON RING (0.5 O/S) 1ST(9) PISTON PIN(10) PISTON PIN CLIP(10) PISTON PIN CLIP(11) ROLLER BEARING 23-28-28(12) SMALL END BEARING WASHER(12) SMALL END BEARING WASHER(13) MAIN BEARING UPPER(14) THRUST PLATE 66-85-2(15) KEY MAGNETO



Parts List
2010 :: 115 HP :: TLDI Nissan NSD115A2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT ASSY 3T1000300M 3T1-00030-0 $0.00 1 Sold Out View More Details
(2) BALL BEARING 6208 3C7001180M 3C7-00118-0 $55.07 1
(3) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(4) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(5) SPACER 35-48.6-16 3T7001190M 3T7-00119-0 $0.00 1 Sold Out View More Details
(6) C-RING D=35 9451073500M 945107-3500 $0.99 1
(7) PISTON (STD) 3T1000010M 3T1-00001-0 STD $0.00 4 Sold Out View More Details
(7) PISTON (0.5MM O/S) 3T1000040M 3T1-00004-0 OPT $0.00 4 Sold Out View More Details
(8) PISTON RING 1ST ( STD ) 3C7000110M 3C7-00011-0 STD $33.06 12
(8) PISTON RING 1ST ( 0.5MM O/S ) 3C7000140M 3C7-00014-0 OPT $37.45 12
(9) PISTON PIN 3T1000210M 3T1-00021-0 $27.89 4
(10) PISTON PIN CLIP 3T1000240M 3T1-00024-0 $1.27 8
(11) NEEDLE BEARING 23-28-28 3T1000420M 3T1-00042-0 $26.50 4
(12) SMALL END BEARING WASHER 3T1000460M 3T1-00046-0 $6.19 8
(13) MAIN BEARING (UPPER) 3C7001130M 3C7-00113-0 $91.41 1
(14) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(15) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
