1. CYLINDER & CRANKCASE

Click Here for Microfiche Usage Tip
(1) CYL BLOCK & CRANKCASE ASSY(2) DOWEL PIN 6-12(2) DOWEL PIN 6-12(3) DOWEL PIN(4) DOWEL PIN(4) DOWEL PIN(4) DOWEL PIN(5) STUD BOLT(5) STUD BOLT(6) STUD BOLT(6) STUD BOLT(6) STUD BOLT(7) BOLT 6-12(8) COLLAR 6.2-9-3(9) NUT(10) BOLT(11) WASHER 10.5-20-3.2(11) WASHER 10.5-20-3.2(12) BOLT(13) BOLT(14) BOLT(15) WASHER 8.5-19.5-3.2(15) WASHER 8.5-19.5-3.2(15) WASHER 8.5-19.5-3.2(16) CYLINDER HEAD COVER(17) CYLINDER HEAD COVER GASKET(18) DOWEL PIN 4-10(18) DOWEL PIN 4-10(19) BOLT(20) THERMOSTAT(21) THERMOSTAT CAP ASSY (W/NIPPLE)(22) THERMOSTAT CAP GASKET(23) BOLT(24) CYLINDER HEAD(25) CYLINDER HEAD GASKET(26) DOWEL PIN 4-10(26) DOWEL PIN 4-10(27) BOLT(28) WASHER 8.5-19.5-3.2(29) CLAMP 8.5-85P(30) HANGER(31) BOLT(32) SPRING WASHER(33) EXHAUST COVER ASSY(34) EXHAUST COVER (INNER)(35) EXHAUST COVER GASKET(35) EXHAUST COVER GASKET(36) BOLT(37) WASHER(38) BOLT(39) WASHER(40) BOLT(40) BOLT(41) SPRING WASHER(41) SPRING WASHER(42) WASHER(42) WASHER(43) ANODE(44) BOLT(45) SPARK PLUG (IZFR5J)(46) HOSE(47) HOSE(48) HOSE(49) HOSE(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(50) CLIP FUEL PIPE o10(51) HOSE(51) HOSE(51) HOSE(52) HOSE(53) CHECK VALVE(54) CLIP o7(54) CLIP o7(54) CLIP o7(54) CLIP o7(54) CLIP o7(54) CLIP o7(54) CLIP o7(54) CLIP o7(55) HOSE(56) HOSE(57) CHECK VALVE(57) CHECK VALVE(58) CLIP o7(58) CLIP o7(58) CLIP o7(58) CLIP o7(59) BOLT(59) BOLT(60) STAY LEAD WIRE BAND(61) BAND LEAD WIRE 170(62) PLATE(63) BOLT(64) PIPE(65) CLIP o6.9(65) CLIP o6.9(66) CLAMP 6.5-14(66) CLAMP 6.5-14(67) BOLT(68) T-NIPPLE ASSY (W/VALVE)(69) CRANKCASE HEAD(70) O-RING 2-74.5(71) OIL SEAL 35-58-9(72) OIL SEAL 19.6-35-10(73) BOLT(74) NIPPLE WATER(75) HOSE



Parts List

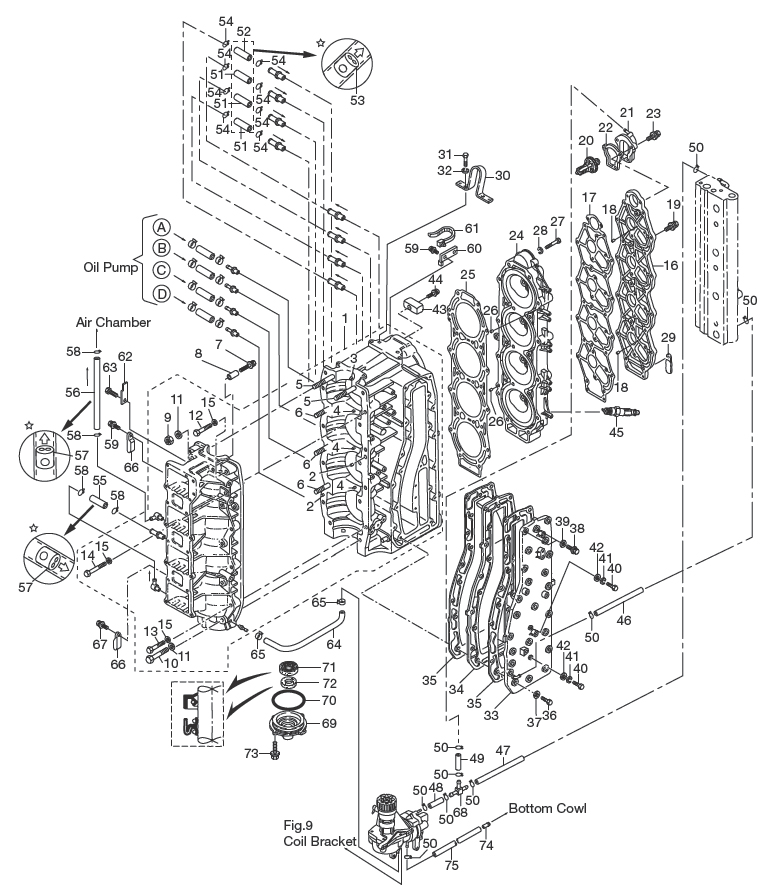

2010 :: 115 HP :: TLDI Nissan NSD115A2 :: CYLINDER & CRANKCASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3T1B011001 3T1B01100-1 $2,349.17 1 Sold Out View More Details
(2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(3) MAIN BEARING DOWEL PIN 3T9001170M 3T9-00117-0 $6.39 1
(4) MAIN BEARING DOWEL PIN 345001170M 345-00117-0 $3.04 3
(5) STUD BOLT 9153241065M 915324-1065 $0.00 2 Sold Out View More Details
(6) STUD BOLT 9153241055M 915324-1055 $0.00 3 Sold Out View More Details
(7) BOLT 9101030612M 910113-0612 $0.84 1
(8) COLLAR 6.2-9-3 3T1760790M 3T1-76079-0 $4.78 1 Sold Out View More Details
(9) NUT 10-P 1.25 9311211000M 931121-1000 $1.47 5
(10) BOLT 9161291065M 916129-1065 $2.37 5
(11) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 10
(12) BOLT 9161240840M 916124-0840 $0.00 2 Sold Out View More Details
(13) BOLT 9161240850M 916124-0850 $1.71 9
(14) BOLT 9161240865M 916124-0865 $1.76 1
(15) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 12
(16) CYLINDER HEAD COVER 3T1B010210 3T1B01021-0 $0.00 1 Sold Out View More Details
(17) CYLINDER HEAD COVER GASKET 3T1010240M 3T1-01024-0 $22.08 1
(18) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(19) BOLT 9101217625M 910121-7625 $0.97 10
(20) THERMOSTAT 3C7010300M 3C7-01030-0 $41.18 1
(21) THERMOSTAT CAP 3T9B010600 3T9B01060-0 $18.73 1
(22) THERMOSTAT CAP GASKET 3T9010321M 3T9-01032-0 $4.10 1
(23) BOLT 9101E35640M 910113-5640 $1.68 3
(24) CYLINDER HEAD 3HKB010910 3HKB01091-0 $0.00 1 Sold Out View More Details
(25) CYLINDER HEAD GASKET 3T1010050M 3T1-01005-0 $76.54 1
(26) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(27) BOLT 9161290875M 916129-0875 $1.71 21
(28) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 21
(29) CLAMP 8.5-85P 3T5069711M 3T5-06971-1 $1.43 1
(30) HANGER 3C7015132M 3C7-01513-2 $0.00 1 Sold Out View More Details
(31) BOLT 9101F40820M 9101F4-0820 $1.39 2
(32) SPRING WASHER 9413220800M 941322-0800 $0.92 2
(33) EXHAUST COVER ASSY 3T1B023001 3T1B02300-1 $0.00 1 Sold Out View More Details
(34) EXHAUST COVER (INNER) 3C7B023020 3C7B02302-0 $103.53 1
(35) EXHAUST COVER GASKET 3C7023051M 3C7-02305-1 $18.06 2
(36) BOLT 9101F40835M 9101F4-0835 $1.50 21
(37) WASHER 9401210800M 940121-0800 $0.37 21
(38) BOLT 9161F90840M 9161F9-0840 $1.93 2
(39) WASHER 9401E30800M 9401E3-0800 $0.65 2
(40) BOLT 9101F40630M 9101F4-0630 $1.21 2
(41) SPRING WASHER 9413220600M 941322-0600 $0.35 2
(42) WASHER 9401210600M 940121-0600 $0.86 2
(43) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(44) BOLT 9101035630M 910113-5630 $1.15 1
(45) SPARK PLUG NGK : IZFR5J 970111109M 9701-1-1109 $28.68 4
(46) HOSE 98AB50360M 98AB-50-360 EXHAUST COVER - AIR RAIL / 98AB-501000 $11.41 1
(47) HOSE 98AB50065M 98AB-50-065 AIR RAIL-T-NIPPLE / 98AB-501000 $11.41 1
(48) HOSE 98AB50065M 98AB-50-065 T-NIPPLE - AIR COMPRESSOR / 98AB-501000 $11.41 1
(49) HOSE 98AB50115M 98AB-50-115 T-NIPPLE - THERMOSTAT CAP / 98AB-501000 $11.41 1
(50) CLIP ø10 338022150M 338-02215-0 $1.41 7
(51) HOSE 98AL40080M 98AL-40-080 CYLINDER #1 2 3 (STARBOARD) / 98AL-401000 $8.81 3
(52) HOSE 98AL40480M 98AL-40-480 CYLINDER #4 (STARBOARD) / 98AL-401000 $8.81 1
(53) LINE CHECK VALVE 393011600M 393-01160-0 $4.31 4
(54) CLIP ø 7 338011330M 338-01133-0 $1.04 8
(55) HOSE 98AL40300M 98AL-40-300 CRANK CASE (STARBOARD) / 98AL-401000 $8.81 1
(56) HOSE 98AL40280M 98AL-40-280 CRANK CASE (STARBOARD) / 98AL-401000 $8.81 1
(57) LINE CHECK VALVE 393011600M 393-01160-0 $4.31 2
(58) CLIP ø 7 338011330M 338-01133-0 $1.04 4
(59) BOLT 9101036612M 910103-6612 $1.16 5
(60) LEAD WIRE BAND STAY 3T1761740M 3T1-76174-0 $0.00 1 Sold Out View More Details
(61) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 $0.00 1 Sold Out View More Details
(62) CLAMP 3T1069720M 3T1-06972-0 $3.34 1 Sold Out View More Details
(63) BOLT 9101036610M 910103-6610 $0.81 1
(64) PIPE 99AA20650M 99AA-2-0650 COMPRESSOR - #4 CRANKCASE / 99AA-2-1000 $7.71 1
(65) CLIP ø 6.9 3B7090520M 3B7-09052-0 $0.00 2 Sold Out View More Details
(66) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 2
(67) BOLT 9101E35612M 910103-5612 $1.07 2
(68) T-NIPPLE (WITH VALVE) 3T7011750M 3T7-01175-0 $7.74 1
(69) CRANKCASE HEAD 3B7012912M 3B7-01291-1 $44.46 1
(70) O-RING 2-74.5 171000530M 171-00053-0 $3.91 1
(71) OIL SEAL 35-58-9 3T9001210M 3T9-00121-0 $16.11 1
(72) OIL SEAL 19.6-35-10 3C7012150M 3C7-01215-0 $15.44 1
(73) BOLT 9101035620M 910103-5620 $1.30 2
(74) WATER NIPPLE 3T1011380M 3T1-01138-0 $2.94 1
(75) HOSE 98AB50500M 98AB-50-500 98AB-501000 $11.41 1
