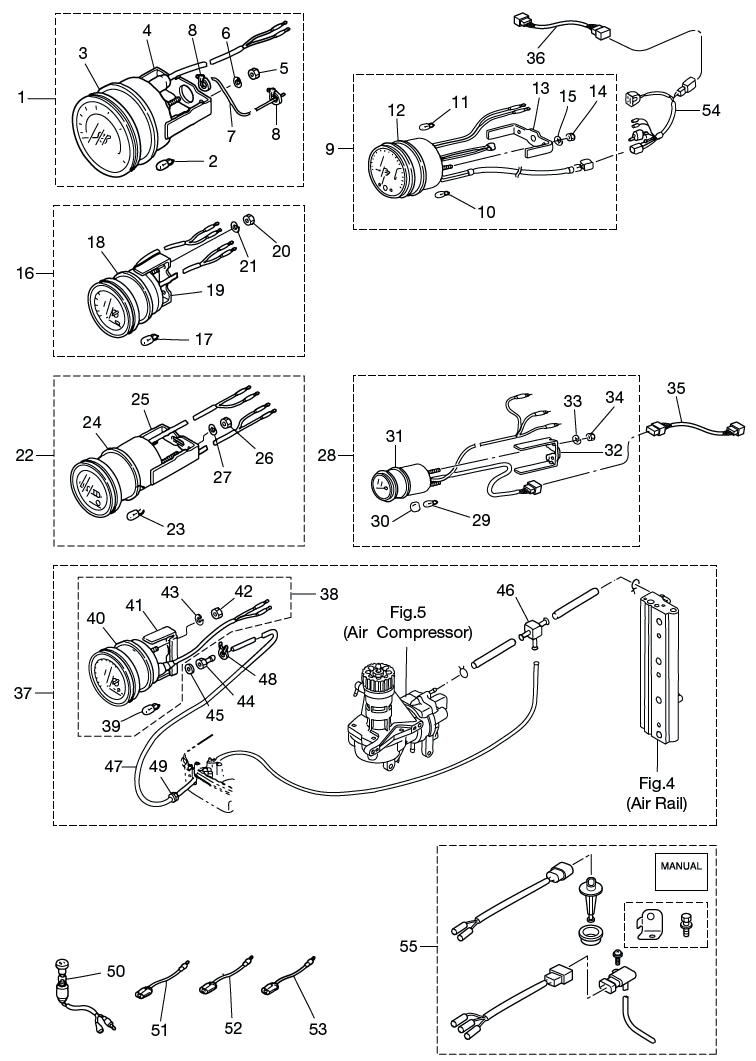

23. OPTIONAL PARTS (1)

Click Here for Microfiche Usage Tip
(1) SPEEDOMETER (BLACK)(1) SPEEDOMETER (WHITE)(1) SPEED METER 75MPH KIT B(1) SPEED METER 50MPH KIT B(2) BULB METER 12V-1.7W(3) DAMPER METER(4) PLATE FITTING(5) NUT(6) SPRING WASHER(7) TUBE SPEEDO METER L=6000(8) BAND SPEEDO METER(8) BAND SPEEDO METER(9) TACHOMETER (BLACK)(9) TACHOMETER (WHITE)(9) TACHOMETER(10) BULB METER 12V-1.7W(11) BULB METER 12V-1.7W(12) DAMPER METER(13) PLATE FITTING(14) NUT(15) SPRING WASHER(16) VOLT METER (BLACK)(16) VOLT METER (WHITE)(16) VOLT METER ASSY(17) BULB METER 12V-1.7W(18) DAMPER METER(19) PLATE FITTING(20) NUT(21) SPRING WASHER(22) HOUR METER (BLACK)(22) HOUR METER (WHITE)(22) HOUR METER ASSY(23) BULB METER 12V-1.7W(24) DAMPER METER(25) PLATE FITTING(26) NUT(27) SPRING WASHER(28) TRIM METER (BLACK)(28) TRIM METER (WHITE)(28) TRIM METER ASSY(29) BULB METER(30) METER BULB CAP(31) DAMPER METER(32) FITING PLATE(33) SPRING WASHER(34) NUT(35) EXTENSION CORD TRIM SENSOR L=6000(35) EXTENSION CORD TRIM SENSOR L=2000(36) EXTENSION CORD (2P) L=2000(37) WATER PRESSURE METER (BLACK)(37) WATER PRESSURE METER (WHITE)(37) WATER PRESSURE METER KIT(38) WATER PRESSURE METER ASSY(39) BULB METER 12V-1.7W(40) DAMPER METER(41) PLATE FITTING(42) NUT(43) SPRING WASHER(44) NIPPLE WATER PRESSURE METER(45) GASKET 2-8-1(46) PIPE JOINT T-TYPE(47) HOSE L=6000(48) CLIP FUEL PIPE o10(49) GROMMET 16-2.5(50) SWITCH METER LAMP(51) ASSIST CORD (BLUE) L=200(52) ASSIST CORD (BLACK) L=200(53) ASSIST CORD (RED) L=200(54) LEAD WIRE METER L=8000(55) ALTITUDE ADJUSTMENT KIT



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90C2 :: OPTIONAL PARTS (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(1) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(1) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 75MPH $0.00 1 Sold Out View More Details
(1) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 50MPH $0.00 1 Sold Out View More Details
(2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(3) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(4) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(5) NUT 9302030500M 930203-0500 $0.60 2
(6) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(7) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 $27.66 1 Sold Out View More Details
(8) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 $2.07 2 Sold Out View More Details
(9) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER 3Z5726401M 3Z5-72640-1 $0.00 1 Sold Out View More Details
(10) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 $3.27 3
(11) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(12) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(13) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(14) NUT 9302030500M 930203-0500 $0.60 2
(15) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(16) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(16) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(16) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(17) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(18) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(19) FITTING PLATE 3B7726620M 3B7-72662-0 $19.58 1 Sold Out View More Details
(20) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(21) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(22) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(22) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(22) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(23) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(24) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(25) FITTING PLATE 3B7726640M 3B7-72664-0 $19.58 1 Sold Out View More Details
(26) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(27) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(28) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(28) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(28) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(29) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 $3.85 1 Sold Out View More Details
(30) METER BULB CAP 3T1726530M 3T1-72653-0 $2.40 1 Sold Out View More Details
(31) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(32) FITTING PLATE 3T1726650M 3T1-72665-0 $12.61 1 Sold Out View More Details
(33) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(34) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(35) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(35) TRIM METER EXTENSION CORD 3Z4725730M 3Z4-72573-0 $29.42 1
(36) 2P EXTENSION CORD 3T5761120M 3T5-76112-0 $48.83 1
(37) WATER PRESSURE METER KIT 3GF725980M 3GF725980M $103.50 1
(37) WATER PRESSURE METER KIT 3GL725980M 3GL725980M $103.50 1
(37) WATER PRESSURE METER KIT 3E0725270M 3E0-72527-0 $0.00 1 Sold Out View More Details
(38) WATER PRESSURE METER 3E0725980M 3E0-72598-0 $0.00 1 Sold Out View More Details
(39) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(40) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(41) FITTING PLATE 3B7726630M 3B7-72663-0 $19.58 1 Sold Out View More Details
(42) NUT 9302030500M 930203-0500 $0.60 2
(43) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(44) WATER PRESSURE METER NIPPLE 3B7726410M 3B7-72641-0 $0.00 1 Sold Out View More Details
(45) GASKET 2-8-1 121331590M 121-33159-0 $0.97 1
(46) HOSE JOINT T TYPE 394700130M 394-70013-0 $2.19 1
(47) HOSE 98AB506000M 98AB-506000 98AB-501000×6 $11.41 1
(48) CLIP ø10 338022150M 338-02215-0 $1.41 1
(49) GROMMET 345671930M 345-67193-0 $3.00 1
(50) METER LAMP SWITCH 353725211M 353-72521-1 $19.47 1
(51) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(52) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(53) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(54) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(55) ALTITUDE ADJUSTMENT KIT 3GF102300M 3GF-10230-0 FOR HIGH ALTITUDE $110.13 1
