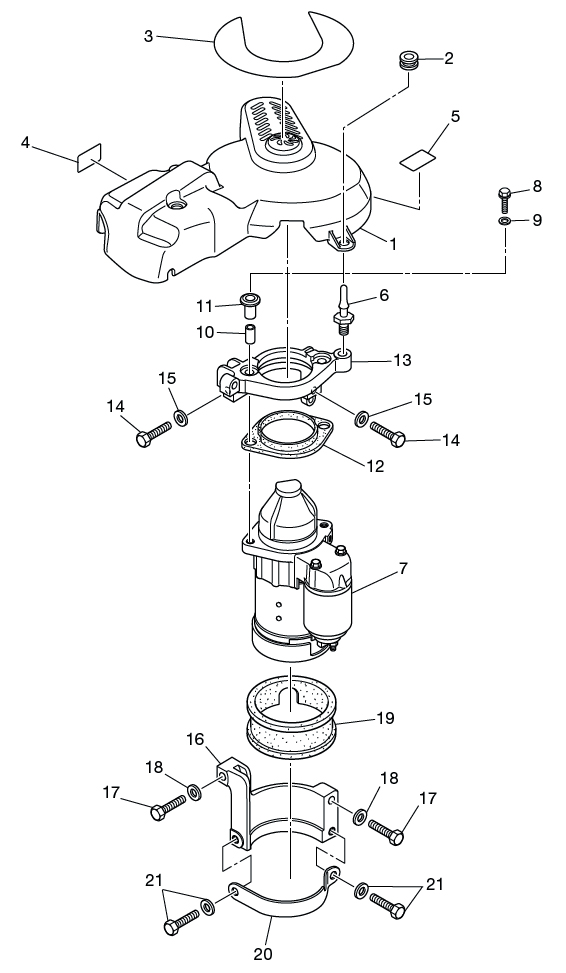

11. ELECTRIC PARTS (START MOTOR 1)

Click Here for Microfiche Usage Tip
(1) RING GEAR COVER(2) GROMMET 16-2.5(3) CAUTION DECAL (B)(4) LABEL FUSE(5) SPARK PLUG DECAL(6) HOOK COVER(7) STARTER MOTOR ASSY(8) BOLT(9) WASHER 8.5-24-1.5(10) SPACER 8.4-12-21.5(11) MOUNT RUBBER A STARTER(12) STARTER MOTOR MOUNT(13) STARTER MOTOR BRACKET UPPER(14) BOLT(14) BOLT(15) WASHER(15) WASHER(16) STARTER MOTOR BRACKET LOWER(17) BOLT(17) BOLT(18) WASHER(18) WASHER(19) DAMPER(20) STARTER MOTOR BAND(21) BOLT(21) BOLT



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90C2 :: ELECTRIC PARTS (START MOTOR 1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RING GEAR COVER 3FW063010M 3FW-06301-0 $31.40 1
(2) GROMMET 16-2.5 3T1670050M 3T1-67005-0 $2.16 5
(3) CAUTION DECAL B 3T1721810M 3T1-72181-0 $0.00 1 Sold Out View More Details
(4) FUSE DECAL 3Y9721940M 3Y9-72194-0 $1.55 1
(5) SPARK PLUG DECAL (IZFR6Q) 3FW720260M 3FW-72026-0 $1.44 1
(6) RING GEAR COVER HOOK 1E0360560M 1E0-36056-0 $1.85 5
(7) STARTER MOTOR ASSY 3FW760100M 3FW-76010-0 SEE FIG12 $538.73 1 Sold Out View More Details
(8) BOLT 9101030840M 910103-0840 $3.17 2
(9) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(10) SPACER 8.4-12-21.5 3C7760031M 3C7-76003-1 $2.56 2
(11) STARTER MOTOR MOUNT A 3C7760040M 3C7-76004-0 $2.07 2
(12) STARTER MOTOR MOUNT 3FW760050M 3FW-76005-0 $8.74 1
(13) STARTER MOTOR BRACKET 3FWB760110 3FWB76011-0 $46.76 1
(14) BOLT 9161F40845M 9161F4-0845 $0.00 2 Sold Out View More Details
(15) WASHER 9401030800M 940113-0800 $0.84 2
(16) STARTER MOTOR BRACKET 3FWB760060 3FWB76006-0 $46.47 1
(17) BOLT 9161F40845M 9161F4-0845 $0.00 2 Sold Out View More Details
(18) WASHER 9401030800M 940113-0800 $0.84 2
(19) DAMPER 3FW760070M 3FW-76007-0 $10.77 1
(20) STARTER MOTOR BAND 3FW760090M 3FW-76009-0 $15.85 1
(21) BOLT 9101035820M 910103-5820 $1.71 2 Sold Out View More Details
