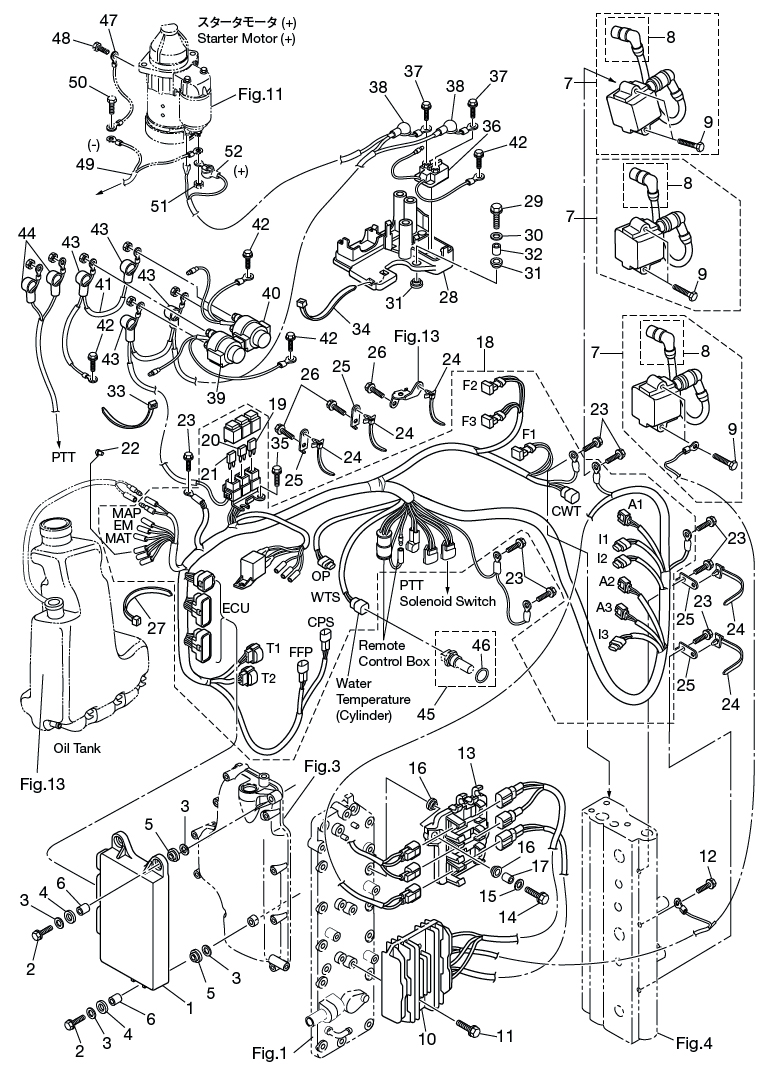

10. ELECTRIC PARTS (ECU - DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU ASSY(2) BOLT(2) BOLT(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(4) MOUNT RUBBER 8.5-14-2.5(4) MOUNT RUBBER 8.5-14-2.5(5) MOUNT RUBBER 8.5-14-2.5(5) MOUNT RUBBER 8.5-14-2.5(6) SPACER 6.2-9-16.6(6) SPACER 6.2-9-16.6(7) IGNITION COIL(7) IGNITION COIL(7) IGNITION COIL(8) PLUG CAP (REGISTANCE)(8) PLUG CAP (REGISTANCE)(8) PLUG CAP (REGISTANCE)(9) BOLT(9) BOLT(9) BOLT(10) RECTIFIER COMPLETE(11) BOLT(12) BOLT(13) CABLE TERMINAL HOLDER(14) BOLT(15) WASHER 6-16-1.5(16) MOUNT RUBBER 8.5-12-2(16) MOUNT RUBBER 8.5-12-2(17) SPACER 6.2-9-10.7(18) CORD ASSY(19) FUSE 30A(20) FUSE 25A(21) FUSE 15A(22) PLUG B CABLE TERMINAL(23) BOLT(23) BOLT(23) BOLT(23) BOLT(23) BOLT(24) LEAD WIRE BAND 170(24) LEAD WIRE BAND 170(24) LEAD WIRE BAND 170(24) LEAD WIRE BAND 170(24) LEAD WIRE BAND 170(25) STAY(25) STAY(25) STAY(25) STAY(26) BOLT(26) BOLT(27) BAND LEAD WIRE 158(28) ELECTRIC BRACKET(29) BOLT(30) WASHER 6-16-1.5(31) MOUNT RUBBER 8.5-12-2(31) MOUNT RUBBER 8.5-12-2(32) SPACER 6.2-9-10.7(33) BAND LEAD WIRE L=200(34) BAND LEAD WIRE L=104(35) TAPPING SCREW 6-16(36) STARTER SOLENOID(37) BOLT(37) BOLT(38) TERMINAL CAP(38) TERMINAL CAP(39) SOLENOID SWITCH A P-T/T(40) SOLENOID SWITCH B P-T/T(41) GROUND CORD(42) BOLT(42) BOLT(42) BOLT(42) BOLT(43) TERMINAL CAP(43) TERMINAL CAP(43) TERMINAL CAP(43) TERMINAL CAP(44) CAP STARTER TERMINAL(45) WATER TEMPERATURE SENSOR (W/O-RING)(46) O-RING 2.0-10.0(47) STARTER CORD L=270(48) BOLT(49) BATTERY CABLE(50) BOLT(51) NUT(52) TERMINAL CAP



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90C2 :: ELECTRIC PARTS (ECU - DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU ASSY 3FW064010M 3FW-06401-0 90PS / 3FW10AA $2,225.25 1
(2) BOLT 9101030630M 910103-0630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.78 3 Sold Out View More Details
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.70 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.32 3
(7) IGNITION COIL W/R-CAP 3Y9064691M 3Y9-06469-0 #1 2 3 $127.98 3
(8) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 #1 2 3 $27.74 3
(9) BOLT 9101035630M 910113-5630 $1.22 6 Sold Out View More Details
(10) RECTIFIER COMPLETE 3FW760600M 3FW-76060-0 RX4159 $299.92 1 Sold Out View More Details
(11) BOLT 9101035625M 910103-5625 $1.57 2
(12) BOLT 9101035612M 910103-5612 $1.15 1 Sold Out View More Details
(13) CABLE TERMINAL HOLDER 3FW062810M 3FW-06281-0 $6.79 1 Sold Out View More Details
(14) BOLT 9101030620M 910103-0620 $1.11 2
(15) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 2
(16) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.23 4
(17) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.87 2
(18) CORD ASSY 3FW761100M 3FW-76110-0 $789.20 1
(19) FUSE 30A 3T5762490M 3T5-76249-0 $2.58 1
(20) FUSE 25A 3Y9762480M 3Y9-76248-0 $2.12 1
(21) FUSE 15A 3T5762460M 3T5-76246-0 $3.57 1
(22) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.61 6
(23) BOLT 9101035612M 910103-5612 $1.15 6 Sold Out View More Details
(24) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 $0.00 5 Sold Out View More Details
(25) STAY 3FW761740M 3FW-76174-0 $4.19 4 Sold Out View More Details
(26) BOLT 9101035612M 910103-5612 $1.15 3 Sold Out View More Details
(27) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.79 2
(28) BRACKET 3FW069010M 3FW-06901-0 $48.51 1
(29) BOLT 9101030625M 910113-0625 $1.01 3
(30) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 3
(31) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.23 6
(32) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.87 3
(33) LEAD WIRE BAND 200 3AC760910M 3AC-76091-0 $0.00 1 Sold Out View More Details
(34) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(35) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.36 2
(36) STARTER SOLENOID 3H8760400M 3H8-76040-0 $72.29 1
(37) BOLT 9101035608M 910103-5608 $1.70 2
(38) TERMINAL CAP 3Y1761450M 3Y1-76145-0 $2.40 2
(39) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP $45.80 1
(40) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN $45.80 1
(41) GROUND CABLE L=140&285 3T5761421M 3T5-76142-1 $9.20 1
(42) BOLT 9101035612M 910103-5612 $1.15 3 Sold Out View More Details
(43) TERMINAL CAP 3Y1761450M 3Y1-76145-0 $2.40 4
(44) CAP CORD 3A3761450M 3A3-76145-0 $3.62 2
(45) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 $28.02 1
(46) O-RING 2-10 3G9661360M 3G9-66136-0 $1.70 1
(47) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 $26.63 1
(48) BOLT 9101035612M 910103-5612 $1.15 2 Sold Out View More Details
(49) BATTERY CABLE 3FW761200M 3FW-76120-0 $118.66 1
(50) BOLT 9101035612M 910103-5612 $1.15 1 Sold Out View More Details
(51) NUT 9301030800M 930103-0800 $2.13 1
(52) TERMINAL CAP 15.5-18.28 3FW761450M 3FW-76145-0 $2.90 1
