3. AIR CHAMBER (AIR BOX)

Click Here for Microfiche Usage Tip

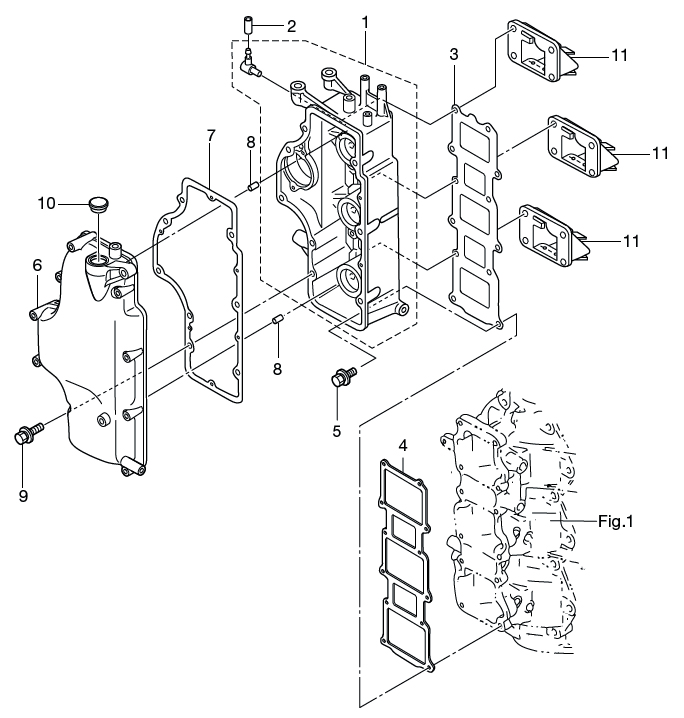

(1) AIR CHAMBER ASSY(2) SEALING CAP(3) GASKET AIR BOX(4) GASKET INLET MANIFOLD(5) BOLT M6-35(6) AIR CHAMBER COVER(7) AIR CHAMBER COVER GASKET(8) DOWEL PIN 4-10(8) DOWEL PIN 4-10(9) BOLT(10) GROMMET(11) REED VALVE ASSY(11) REED VALVE ASSY(11) REED VALVE ASSY



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90C2 :: AIR CHAMBER (AIR BOX)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER ASSY 3FWB022400 3FWB02240-0 $176.32 1 Sold Out View More Details
(2) SEALING CAP 3GF011390M 3GF-01139-0 $3.04 1 Sold Out View More Details
(3) AIR CHAMBER GASKET 3T9022420M 3T9-02242-0 $6.08 1
(4) INTAKE MANIFOLD GASKET 3T9021040M 3T9-02104-0 $12.33 1
(5) BOLT 6-35 PRE-COATED 3V1600011M 3V1-60001-1 $3.68 12
(6) AIR CHAMBER COVER 3FWB022440 3FWB02244-0 $0.00 1 Sold Out View More Details
(7) AIR CHAMBER COVER GASKET 3FW022450M 3FW-02245-0 $28.23 1
(8) KNOCK 4 -10 334650120M 334-65012-0 $3.22 2
(9) BOLT 9101035645M 910103-5645 $0.00 9 Sold Out View More Details
(10) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.69 1
(11) REED VALVE ASSY 3A3021000M 3A3-02100-0 $73.65 3
